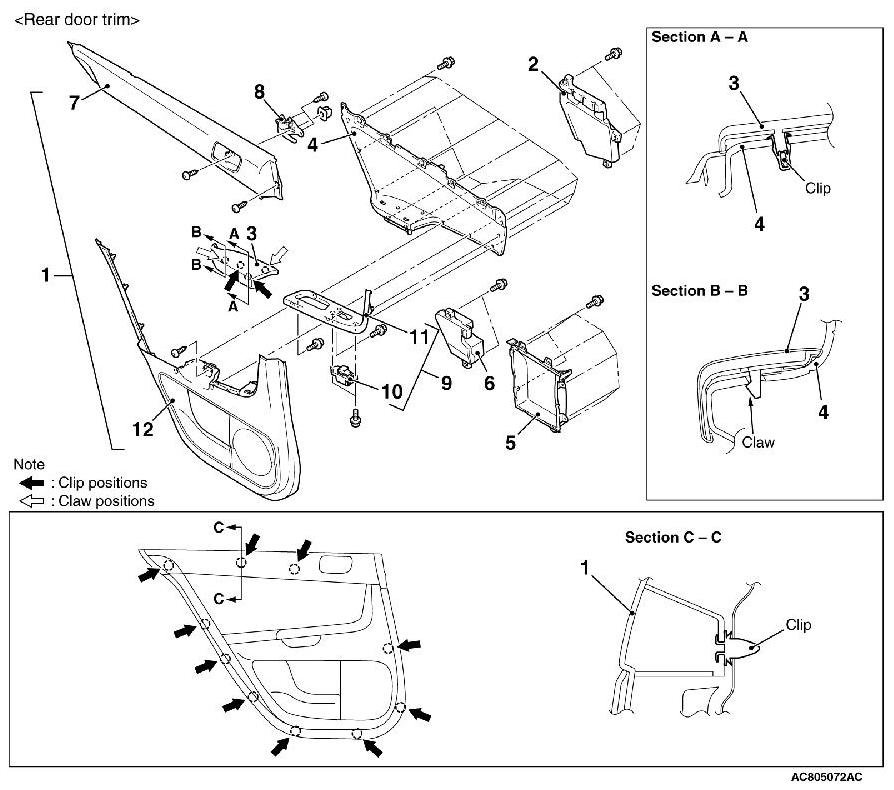

Rear Door Panel: Service and Repair

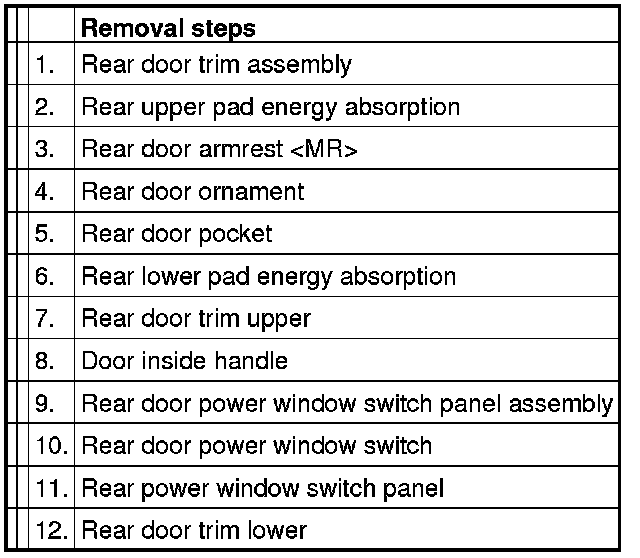

REMOVAL AND INSTALLATION










Required Special Tool:

- MB990784: Ornament Remover
