Home >> Mitsubishi >> 2012 >> Lancer Evolution L4-2.0L Turbo (4B11T/C) >> Repair and Diagnosis >> Body and Frame >> Doors, Hood and Trunk >> Doors >> Front Door >> Front Door Panel >> Service and Repair

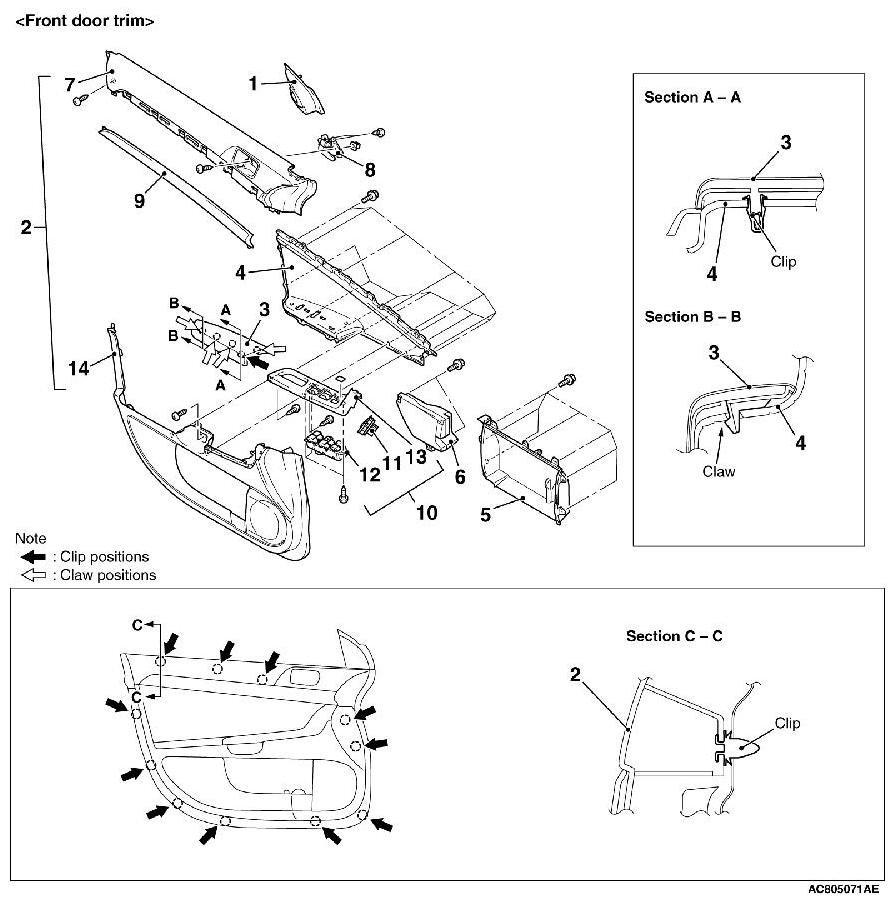

Front Door Panel: Service and Repair

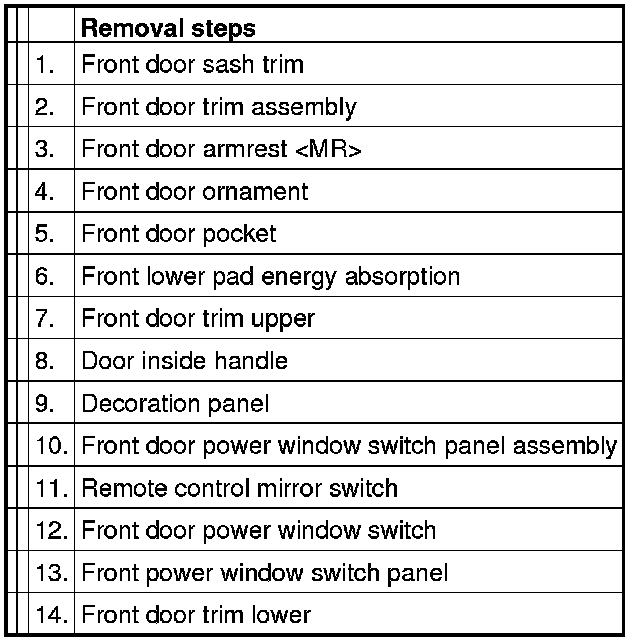

REMOVAL AND INSTALLATION









Required Special Tool:

- MB990784: Ornament Remover
