Component Tests and General Diagnostics

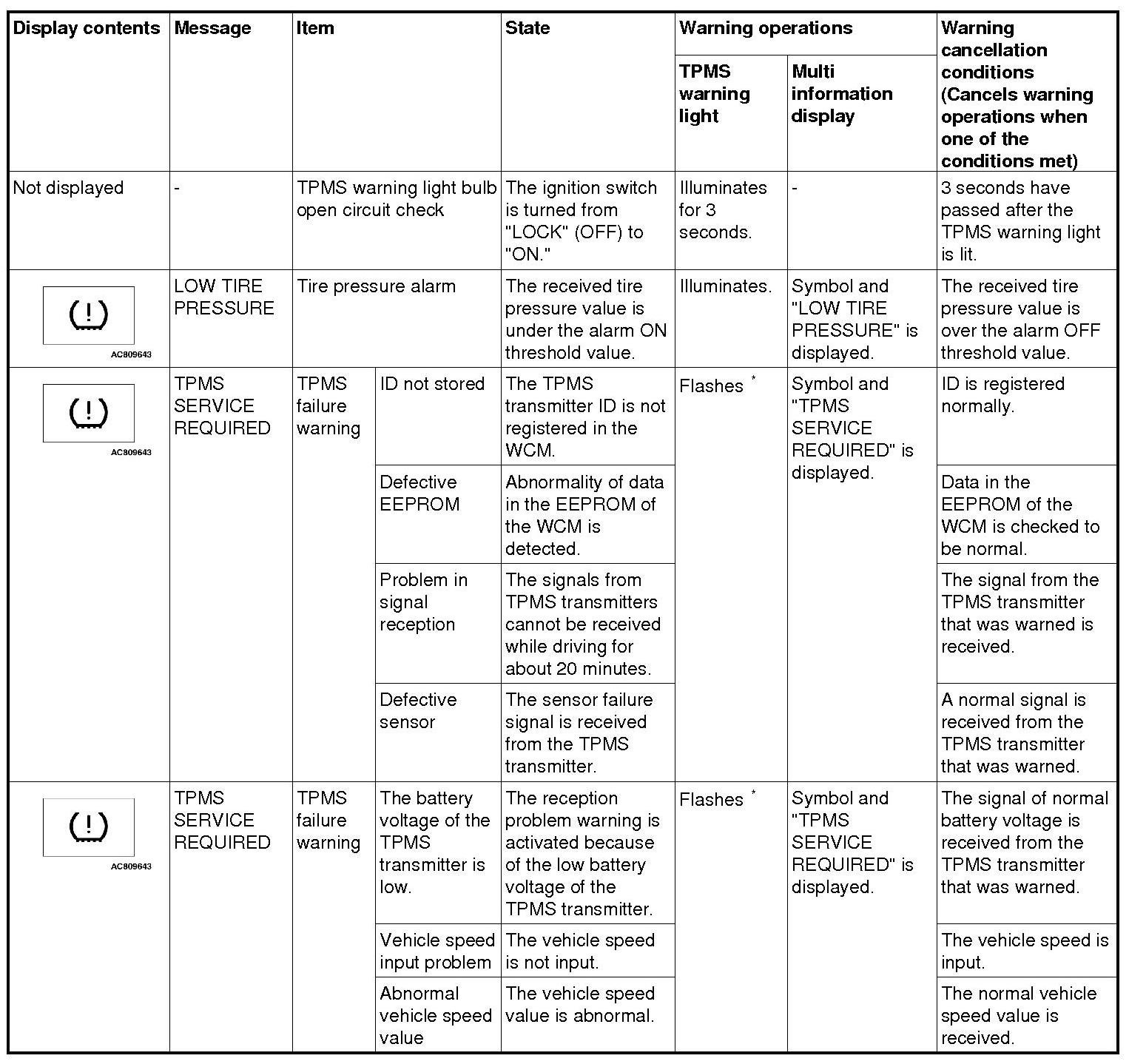

WARNINGS/ALARMS

If the TPMS fails or the tire pressure is low, the WCM warns the driver of that state by the TPMS warning light and the multi information display in the combination meter.






NOTE:
*: Change to continuous illumination after flashing for about 1 minute.
