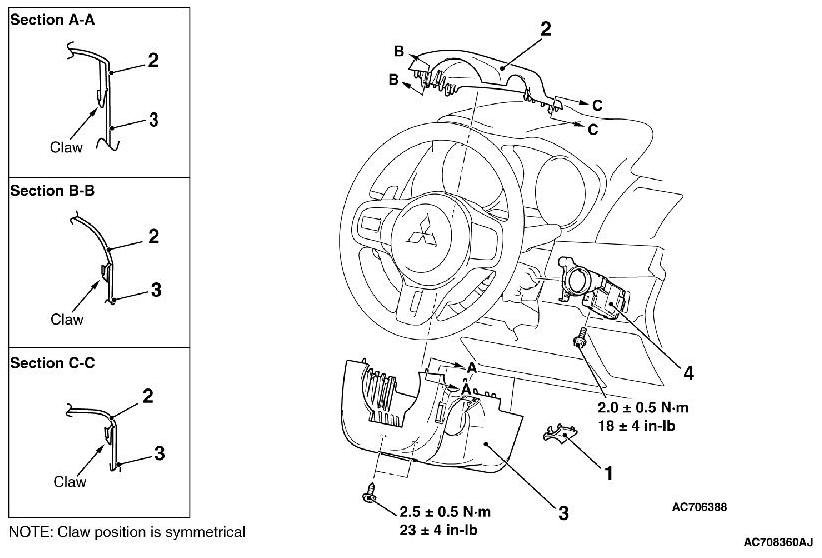

Wireless Control Module (WCM) Removal and Installation

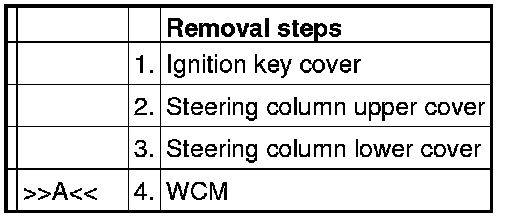

REMOVAL AND INSTALLATION

CAUTION:
When WCM has been replaced, all key ID codes should be registered, referring to the ID code registration necessity judgment table
(Refer to ID registration procedure manual - ID codes registration judgement table).









INSTALLATION SERVICE POINT

]]A[[ WCM INSTALLATION

Check that the top claw of WCM is fixed securely to the boss of steering lock and the antenna is not floated on the key cylinder.
