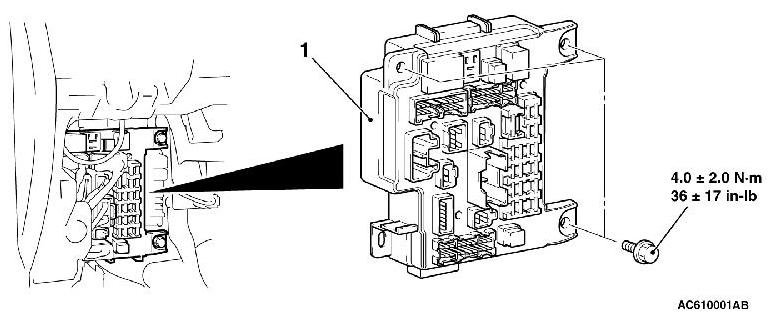

Electronic Time and Alarm Control System (ETACS)-ECU Removal and Installation

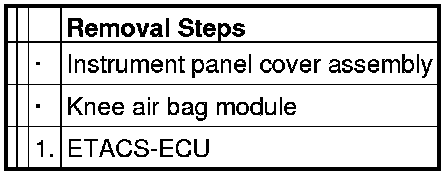

REMOVAL AND INSTALLATION

WARNING:

- Before removing the ETACS-ECU and knee air bag module, refer to Service Precautions Service Precautions and Knee Air Bag Module Removal and Installation .
- When removing and installing the ETACS-ECU, do not let it bump against the knee air bag module.

CAUTION:
When the ETACS-ECU is replaced, chassis number writing and coding must be performed. When diagnostic trouble code No.B1761 "Chassis No. not programmed" or No.B222C "Coding not completed" is set to the ETACS-ECU, perform chassis number writing and coding. Refer to the "M.U.T.-III Owner's Manual" and perform coding.
