Inspection Procedure 2

Inspection Procedure 2: No sound is heard.

CAUTION:
Before replacing the multivision display, ensure that the power supply circuit, the ground circuit, and the communication circuit are normal. (Check that the voltage is 10 V or more.)


















COMMENTS ON TROUBLE SYMPTOM

If the audio sound is not output, the multivision display, audio amplifier, or power supply circuit of audio amplifier may have a problem, or the option coding information may be inconsistent.

PROBABLE CAUSES

- The multivision display may be defective
- The audio amplifier may be defective
- Option coding information inconsistency
- Damaged harness wires and connectors

DIAGNOSIS

Required Special Tools:

- MB991223: Harness Set
- MB992006: Extra Fine Probe
- MB991958: Scan Tool (M.U.T.-III Sub Assembly)
- MB991824: Vehicle Communication Interface (V.C.I.)
- MB991827: M.U.T.-III USB Cable
- MB991910: M.U.T.-III Main Harness A

STEP 1. Check the multivision display operation.

Q. Check the sources from which the sound is not output.

No sound only from radio : Perform Inspection Procedure 6 "Poor Reception." (Refer to Inspection Procedure 6.)
No sound only when the CD is played : Perform Inspection Procedure 8 "No CD/DVD cannot be Played." (Refer to Inspection Procedure 8.)
No sound only when the DVD is played : Perform Inspection Procedure 8 "No CD/DVD cannot be Played."(Refer to Inspection Procedure 8.) or Inspection Procedure 9 "Image of a DVD is Played, but no Sound is Played." (Refer to Inspection Procedure 9.)
Only the sound that is relevant to the hands free function and USB adapter function is not output. [Vehicles with hands free module] : Diagnose the hands free module. (Refer to Symptom Chart.)
Only the sound relevant to USB adapter is not output. [Vehicles with USB box] : Troubleshoot the USB box. (Refer to Symptom Chart.)
No sound only when the music server is used : Go to Step 8.
No sound from any of the sources : Go to Step 2.
STEP 2. Check the ETACS-ECU coding data.

Use scan tool MB991958 to diagnose the CAN bus lines.





(1)
CAUTION:
To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958.

Connect scan tool MB991958. Refer to "How to connect the Scan Tool (M.U.T.-III) Reading and Clearing Diagnostic Trouble Codes."
(2)Turn the ignition switch to "ON" position.
(3)Operate the scan tool MB991958 to read the ETACS-ECU option coding information
Programming and Relearning).
(4)Check that the "Number of speaker" is set to "Premium."

Q. Is the check result normal?

YES Go to Step 3.

NO Operate scan tool MB991958 to set the option coding "Number of speaker" to "Premium,"
and check the trouble symptom.

STEP 3. Check the MMCS service mode, CAN communication confirmation, and coding data.

(1)Display the CAN Communication Confirmation and Coding Data of the MMCS service mode. (Refer to Reading and Clearing Diagnostic Trouble Codes)

(2)Check if PREMIUM is displayed.

Q. Is the check result normal?

YES Go to Step 4.
NO Go to Step 5.
STEP 4. Check the service data log for the MMCS service mode.

With the service data log of MMCS service mode displayed, check if the service data log for SP (speaker) is displayed. (Refer to Reading and Clearing Diagnostic Trouble Codes)

Q. Is the service data log for SP (speaker) displayed?

YES Go to Step 5.
NO Go to Step 8.
STEP 5. Using scan tool MB991958, diagnose the CAN bus line.

Use scan tool MB991958 to diagnose the CAN bus lines.

(1)Turn the ignition switch to "ON" position.

(2)Diagnose the CAN bus line.

Q. Is the check result normal?

YES Go to Step 6.
NO Repair the CAN bus line.
STEP 6. Using scan tool MB991958, read the CAN box unit diagnostic trouble code.

Check again if the DTC is set to the CAN box unit.

Q. Is the DTC set?

YES Troubleshoot the MMCS (Refer to Mitsubishi Multi Communication System (MMCS)).
NO Go to Step 7.
STEP 7. Using scan tool MB991958, read the ETACS-ECU diagnostic trouble code.

Check if the diagnostic trouble code is set to the ETACS-ECU.

Q. Is the DTC set?

YES Diagnose the ETACS-ECU Electronic Time and Alarm Control System (ETACS)).
NO Go to Step 8.
STEP 8. Check the service data log for the MMCS service mode.

(1)Display the service data log for the MMCS service mode. (Refer to Reading and Clearing Diagnostic Trouble Codes)

(2)Check if the service data log for drive and HDD is displayed.

Q. Is the service data log displayed?

YES (The service data log for drive is displayed.) : Perform Inspection Procedure 8 "No CD/DVD cannot be Played."(Refer to Inspection Procedure 8.) or Inspection Procedure 9 "Image of a DVD is Played, but no Sound is Played." (Refer to Inspection Procedure 9.) Go to Step 9.
YES (The service data log for HDD is displayed.) : Abnormalities relating to high or low temperature may be present. Check if the multivision display can output the sound at the operable temperature. If it cannot output the sound, go to Step 9.
YES (The service data log for AMP is displayed.) : Go to Step 9.
NO Go to Step 9.
STEP 9. Perform "Network/Connect Line Check" in the MMCS service mode.

(1)Display "Network/Connect Line Check" in the MMCS service mode. (Refer to Reading and Clearing Diagnostic Trouble Codes)

(2)Check if "DVD Drive OK" is displayed.

(3)Check if "HDD Drive OK" is displayed.

(4)Check if "Premium Audio OK" is displayed.

Q. Is the check result normal?

YES Go to Step 17.
NO Go to Step 10.

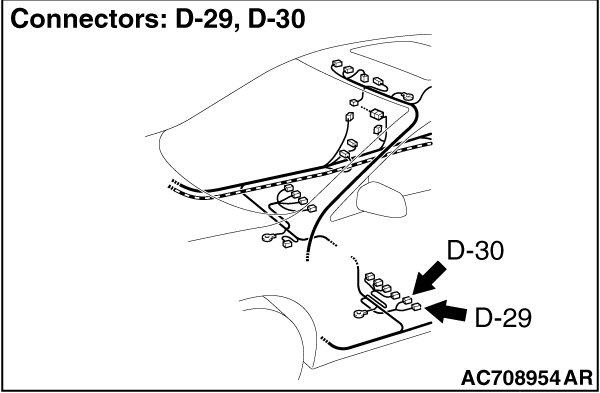

STEP 10. Check audio amplifier connector D-29 for loose, corroded or damaged terminals, or terminals pushed back in the connector.

Q. Is audio amplifier connector D-29 in good condition?

YES Go to Step 11.
NO Repair or replace the damaged component(s). Harness Connector Inspection.

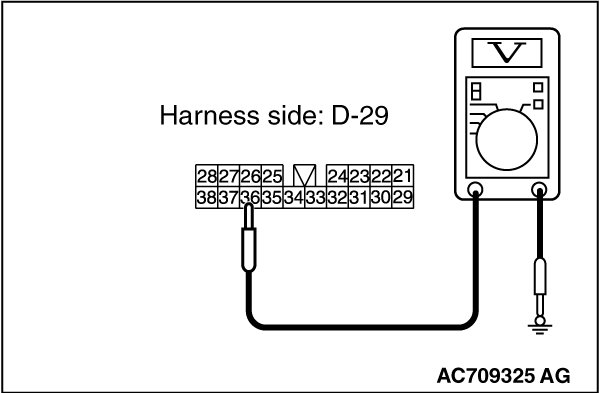

STEP 11. Check the power supply circuit to the audio amplifier. Measure the voltage at audio amplifier connector D-29.

(1)Disconnect audio amplifier connector D-29, and measure the voltage available at the wiring harness-side connector.

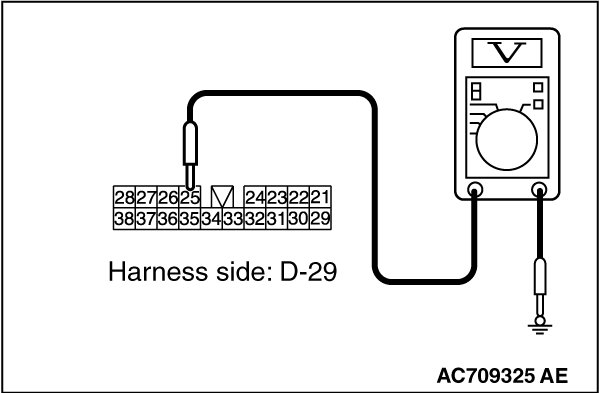

(2)Measure the voltage between terminal 25 and ground.
OK: The voltage should measure approximately 12 volts (battery positive voltage).

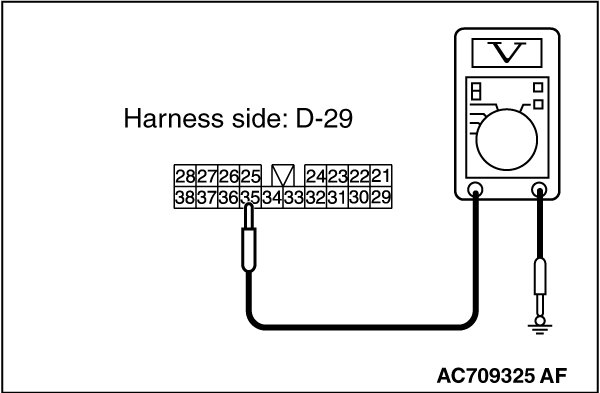

(3)Measure the voltage between terminal 35 and ground.
OK: The voltage should measure approximately 12 volts (battery positive voltage).






(4)Measure the voltage between terminal 36 and ground.
OK: The voltage should measure approximately 12 volts (battery positive voltage).

Q. Is the measured voltage battery positive voltage?

YES Go to Step 13.

NO Go to Step 12.

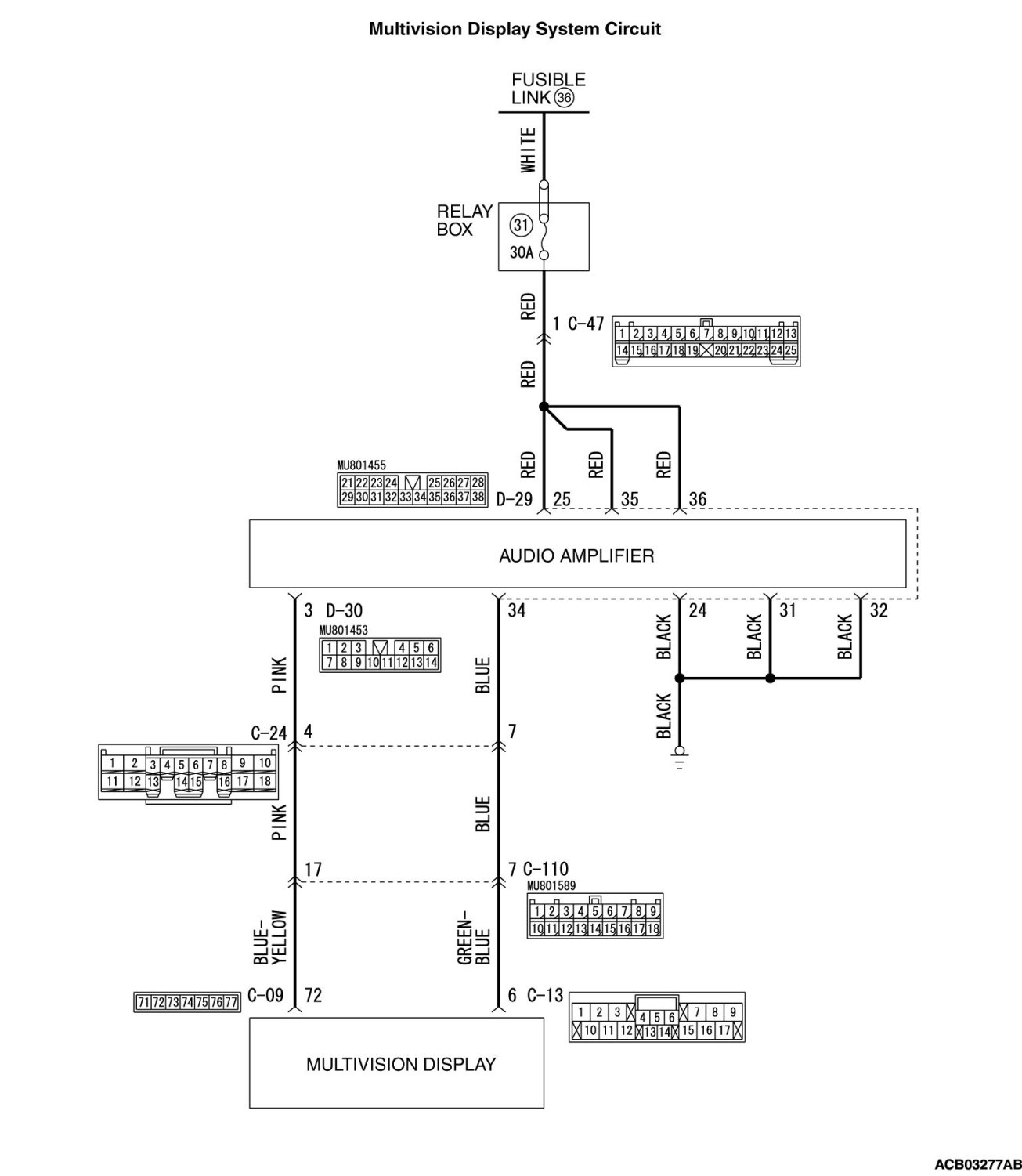

STEP 12. Check the wiring harness between audio amplifier connector D-29 (terminal 25, 35, 36) and fusible link (36).

NOTE:
Also check intermediate connector C-47 for loose, corroded, or damaged terminals, or terminals pushed back in the connector. If intermediate connector C-47 is damaged, repair or replace the connector as described in Harness Connector Inspection Harness Connector Inspection.

- Check the power supply line for open circuit and short circuit.

Q. Is the wiring harness between audio amplifier connector D-29 (terminal 25, 35, 36) and fusible link (36) in good condition?

YES Go to Step 13.
NO The wiring harness may be damaged or the connector(s) may have loose, corroded or damaged terminals, or terminals pushed back in the connector. Repair the wiring harness as necessary.
STEP 13. Check the ground circuit to the audio amplifier. Measure the resistance at audio amplifier connector D-29.

(1)Disconnect audio amplifier connector D-29, and measure the resistance available at the wiring harness side of the connector.

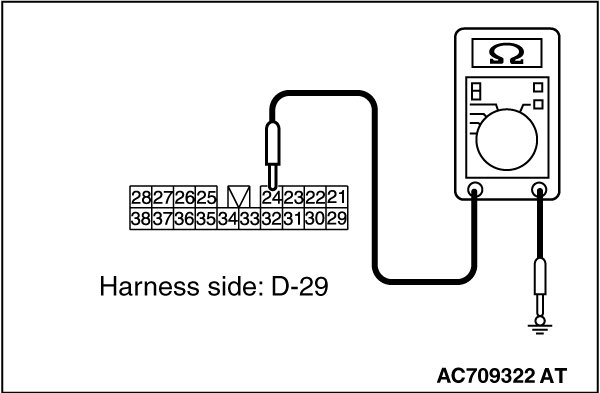

(2)Measure the resistance between terminal 24 and ground.
OK: The resistance should be 2 ohms or less

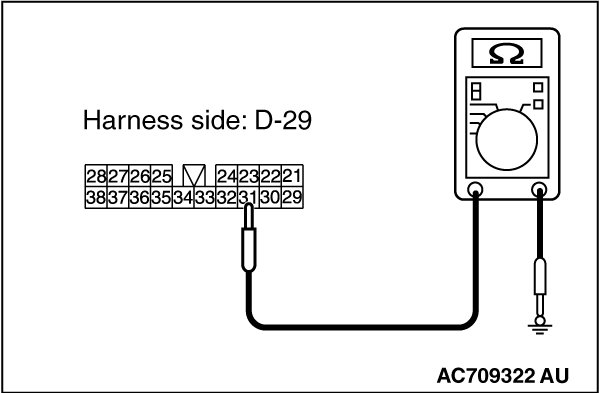

(3)Measure the resistance between terminal 31 and ground.
OK: The resistance should be 2 ohms or less

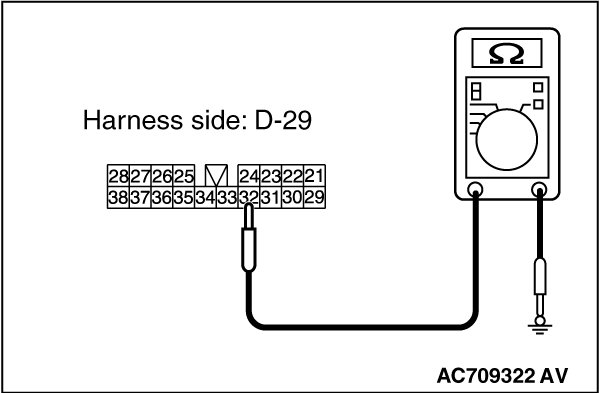

(4)Measure the resistance between terminal 32 and ground.
OK: The resistance should be 2 ohms or less

Q. Is the measured resistance 2 ohms or less?

YES Go to Step 15.

NO Go to Step 14.

STEP 14. Check the wiring harness between audio amplifier connector D-29 (terminal 24, 31, 32) and ground.

- Check the ground wires for open circuit.

Q. Is the wiring harness between audio amplifier connector D-25 (terminal 24, 31, 32) and ground in good condition?

YES The trouble can be an intermittent malfunction How to Cope With Intermittent Malfunctions).
NO The wiring harness may be damaged or the connector(s) may have loose, corroded or damaged terminals, or terminals pushed back in the connector. Repair the wiring harness as necessary.

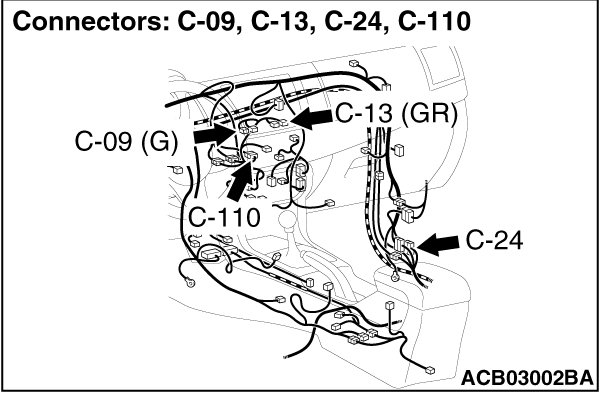

STEP 15. Check multivision display connector C-09, C-13 and audio amplifier connector D-30 for loose, corroded or damaged terminals, or terminals pushed back in the connector.

Q. Is multivision display connector C-09, C-13 and audio amplifier connector D-30 in good condition?

YES Go to Step 16.
NO Repair or replace the damaged component Harness Connector Inspection).
STEP 16. Check the wiring harness between multivision display connector C-09 (terminal 72) and audio amplifier connector D-30 (terminal 3)

NOTE:
Also check intermediate connectors C-110 and C-24 for loose, corroded, or damaged terminals, or terminals pushed back in the connector. If intermediate connector C-110 or C-24 is damaged, repair or replace the connector as described in Harness Connector Inspection Harness Connector Inspection.

- Check the communication lines for open circuit and short circuit.

Q. Is the wiring harness between multivision display connector C-09 (terminal 72) and audio amplifier connector D-30 (terminal 3) in good condition?

YES
Go to Step 17.

NO The wiring harness may be damaged or the connector(s) may have loose, corroded or damaged terminals, or terminals pushed back in the connector. Repair the wiring harness as necessary.
STEP 17. Check the wiring harness between multivision display connector C-13 (terminal 6) and audio amplifier connector D-29 (terminal 34)

NOTE:
Also check intermediate connectors C-110 and C-24 for loose, corroded, or damaged terminals, or terminals pushed back in the connector. If intermediate connector C-110 or C-24 is damaged, repair or replace the connector as described in Harness Connector Inspection Harness Connector Inspection.

- Check the communication lines for open circuit and short circuit.

Q. Is the wiring harness between multivision display connector C-13 (terminal 6) and audio amplifier connector D-29 (terminal 34) in good condition?

YES
Go to Step 18.

NO The wiring harness may be damaged or the connector(s) may have loose, corroded or damaged terminals, or terminals pushed back in the connector. Repair the wiring harness as necessary.
STEP 18. Retest the system

Check that the audio sound is output.

Q. Is the check result normal?

YES The trouble can be an intermittent malfunction How to Cope With Intermittent Malfunctions).
NO Go to Step 19.
STEP 19. Retest the system

Temporarily replace the multivision display, and check if the sound is output.

Q. Is the check result normal?

YES Replace the multivision display.
NO Replace the audio amplifier.
