Pinout Values and Diagnostic Parameters




MAIN UNIT TERMINAL VOLTAGE

MULTIVISION DISPLAY

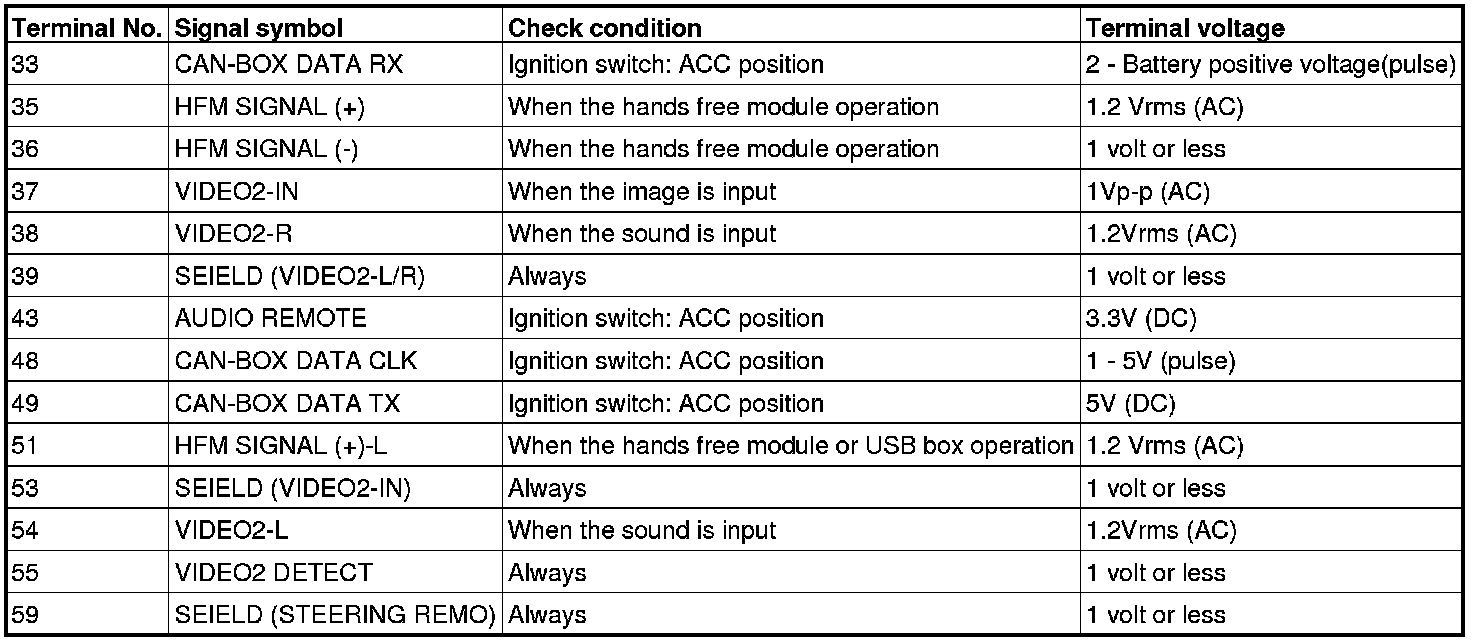

C-09

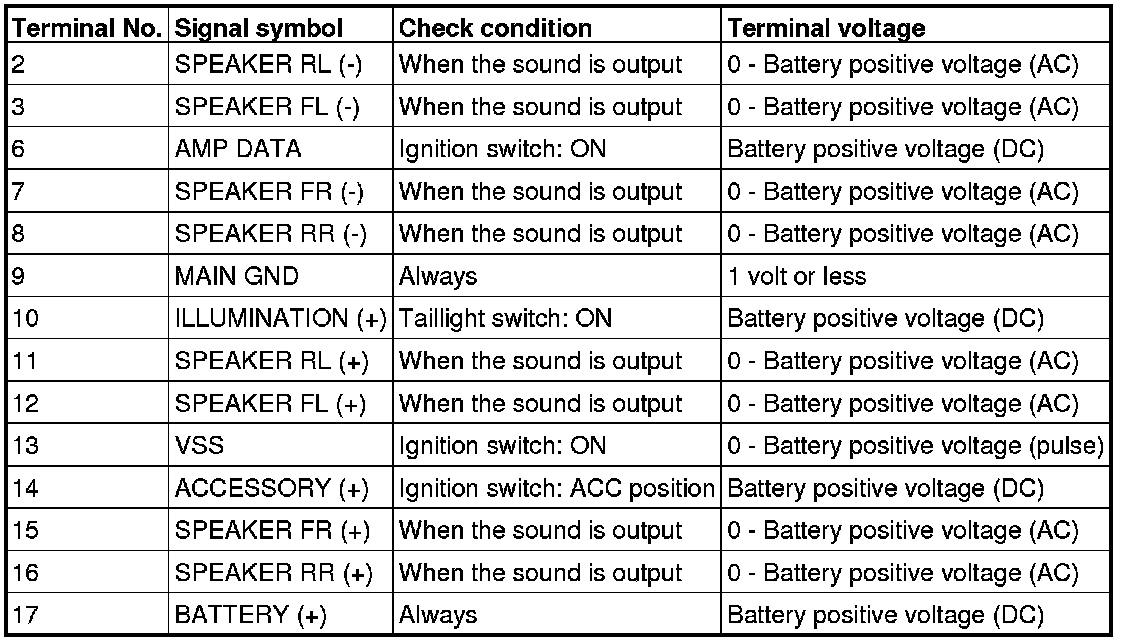

C-10

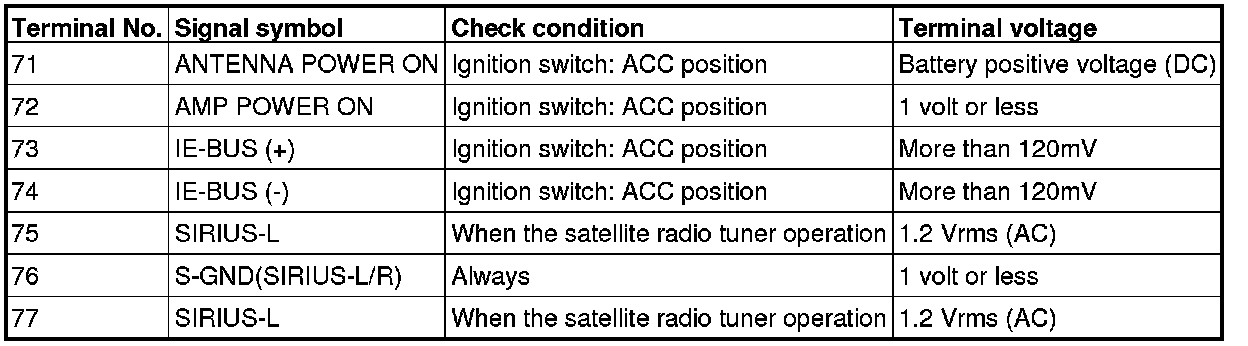

C-12

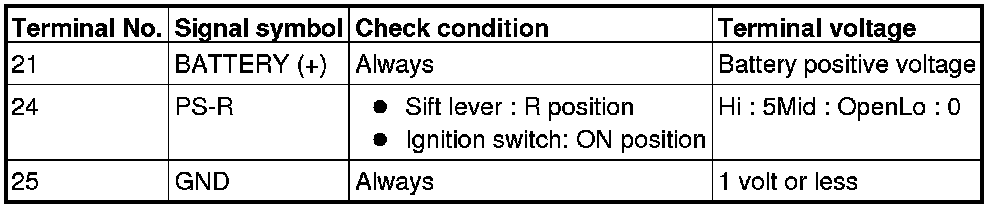

C-13





CAN BOX UNIT

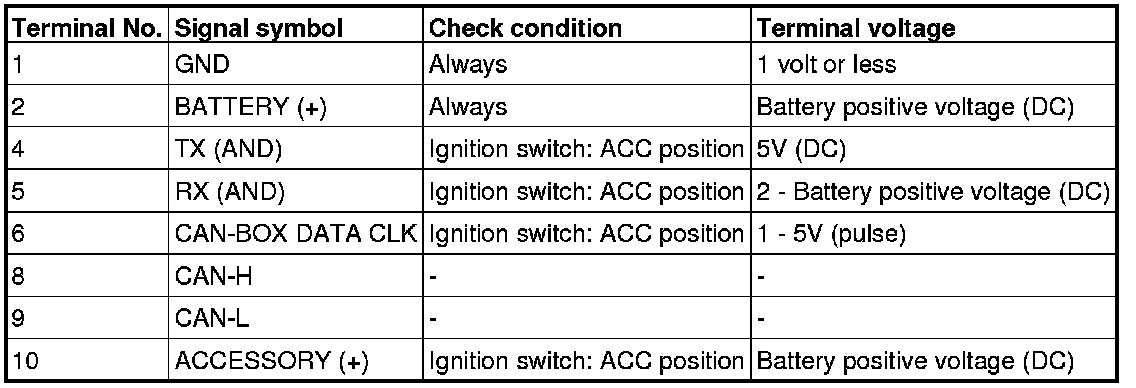

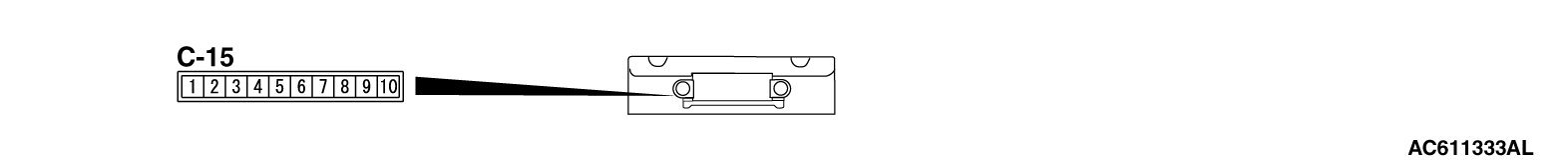

C-15
