REMOVAL AND INSTALLATION

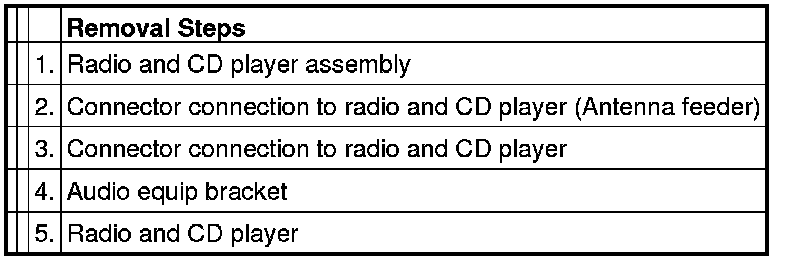

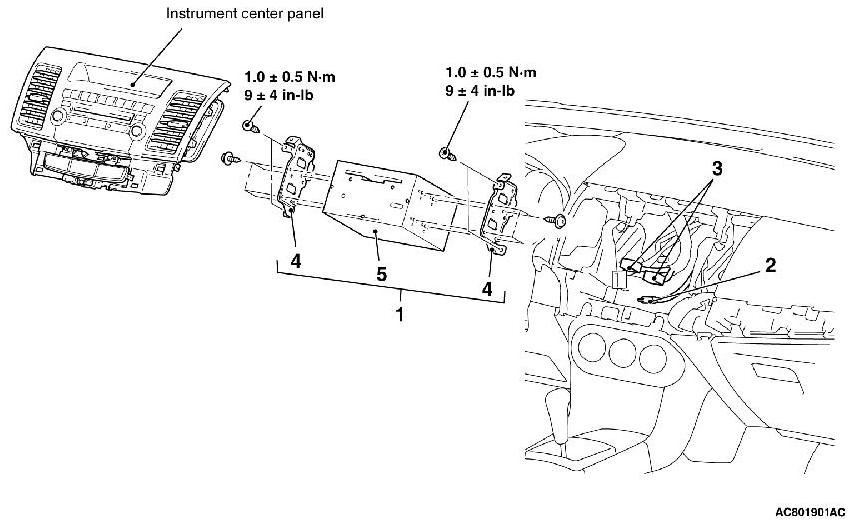

RADIO AND CD PLAYER
NOTE:
When the radio and CD player are replaced, always turn the ignition switch to the ON position once and then carry out the operation check.

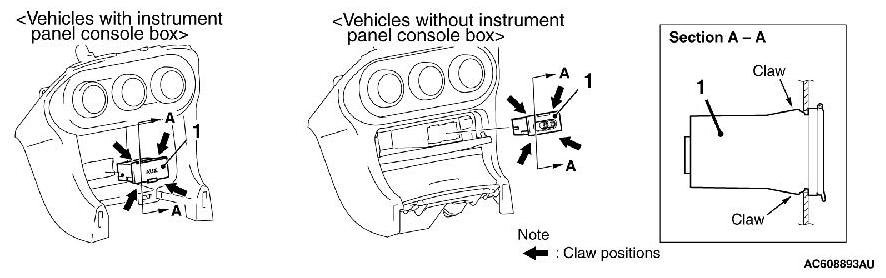

AUDIO ADAPTER
