Radio, Stereo, and Compact Disc: Description and Operation




GENERAL INFORMATION

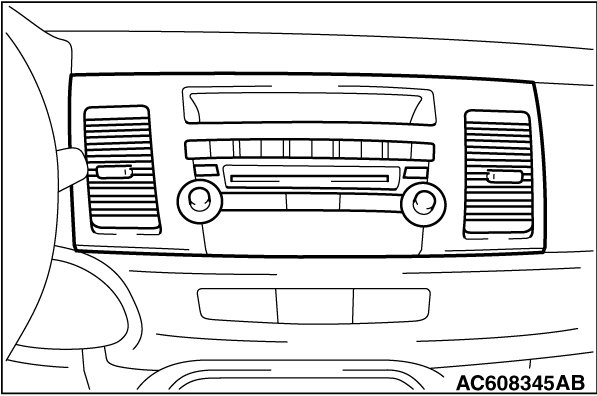

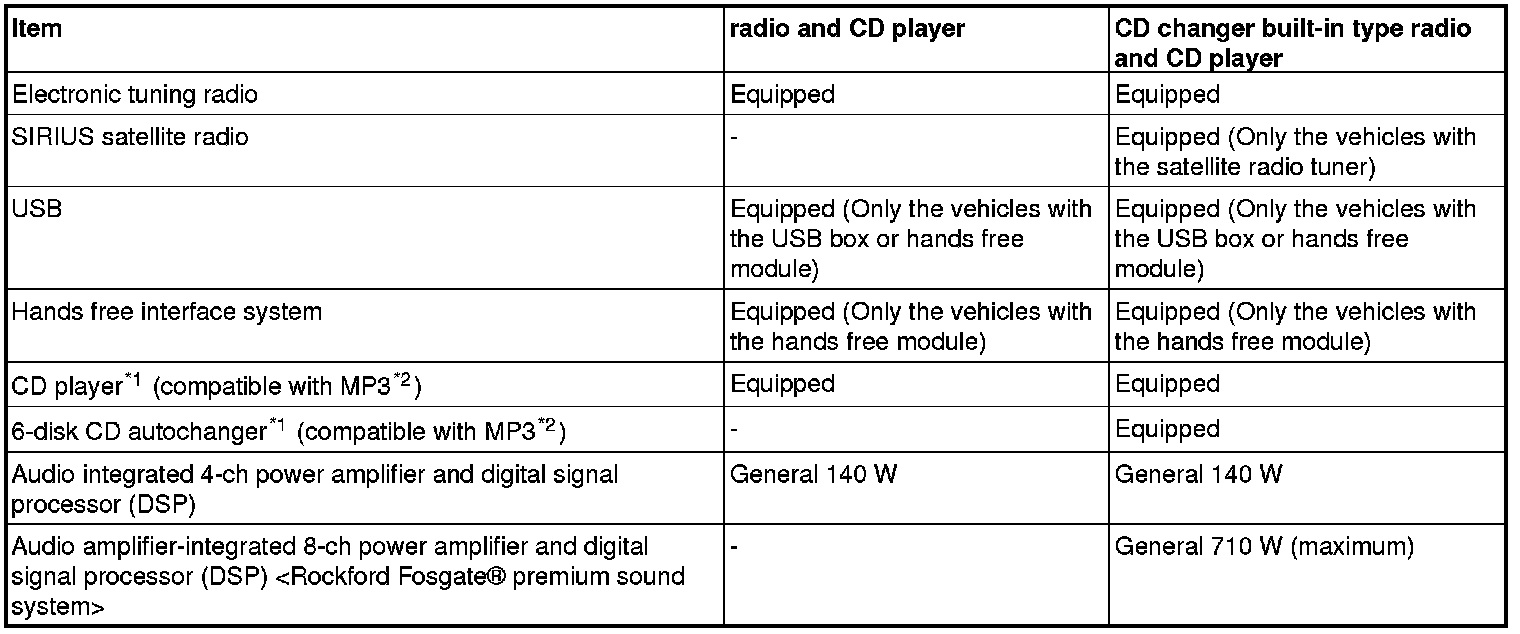

- Two types of radio and CD player, radio and CD player or CD changer built-in type radio and CD player , have been established. The radio and CD player was designed to create a uniformity impression with the instrument panel. Also, a new function automatically corrects the sound quality and volume during driving.

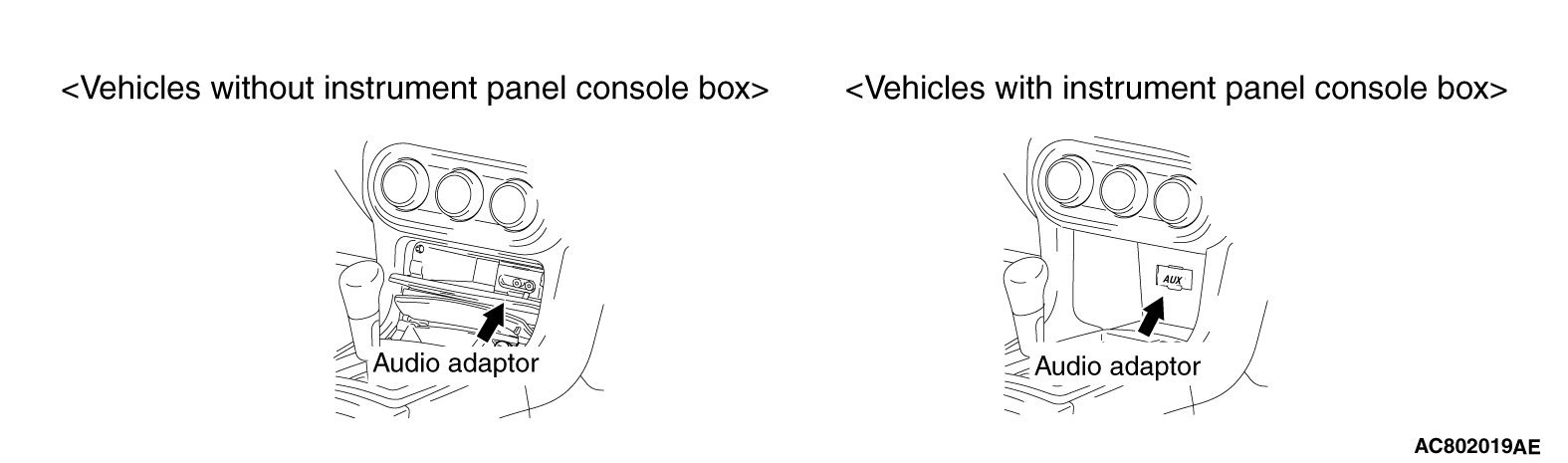

The audio adapter has been established onto the center tray. With this modification, portable music player can be connected.






NOTE:

- *1: CD-R/CD-RW may not be played.
- *2: Some may not be played.
