Diagnosis Mode [Vehicles With Radio and CD Player]

DIAGNOSIS MODE [VEHICLES WITH RADIO AND CD PLAYER]

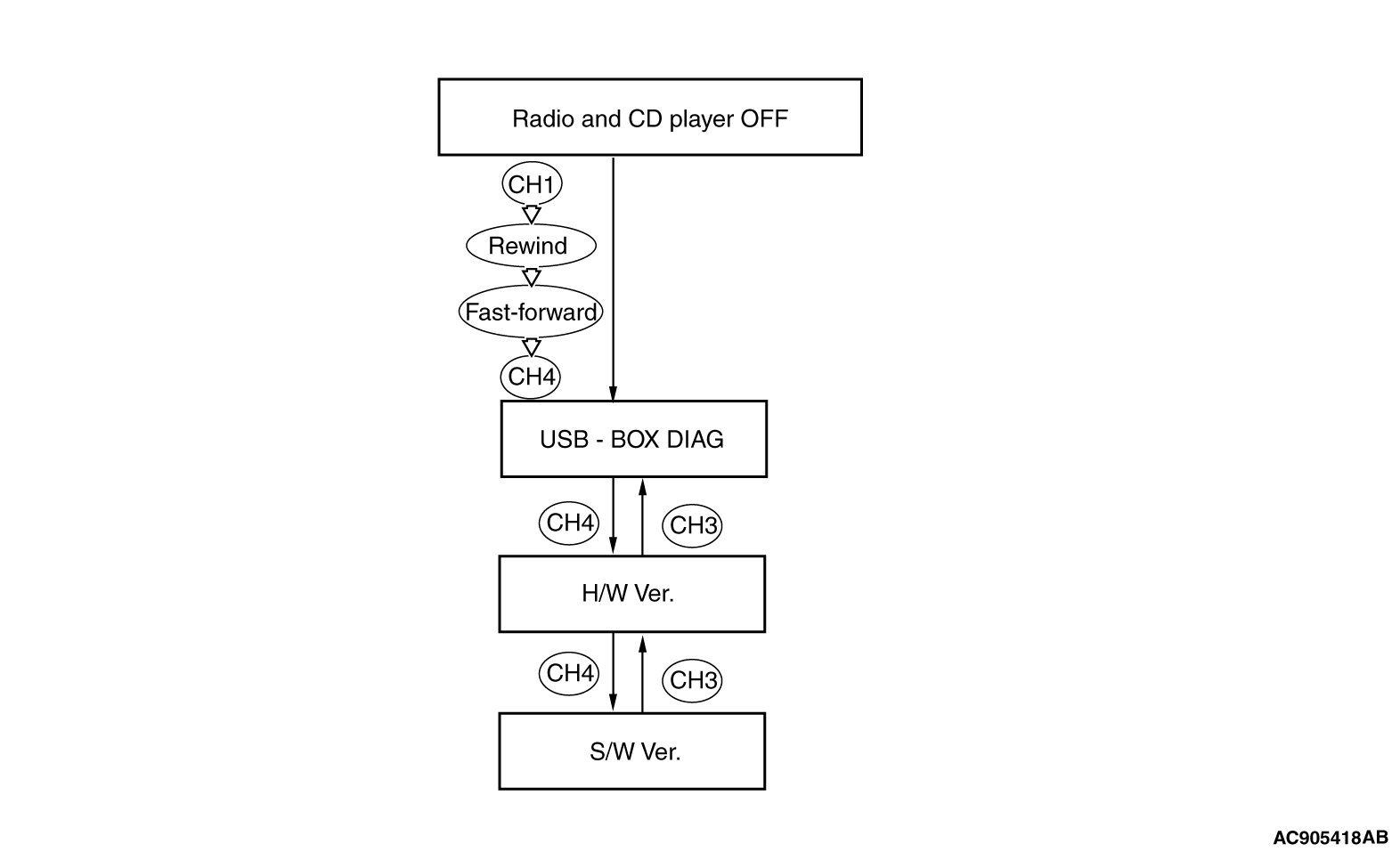

Enter the diagnosis mode according to the following steps:

1. Turn the Ignition switch to the "ACC" or "ON" position and switch off the radio and CD player.

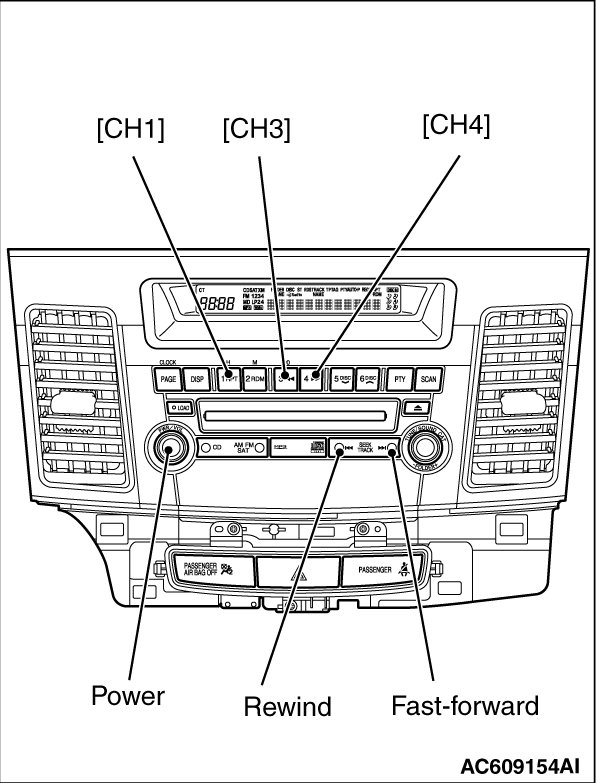

2. Press the following buttons in that order within sixty seconds from step (1).
(1)
[CH1] button.
(2) Rewind button.
(3) Fast-forward button.
(4)
[CH4] button.
NOTE:
When the "Power" button of the radio and CD player is pressed during the diagnosis mode, the diagnosis mode will be cancelled, thus switching off the radio and CD player.

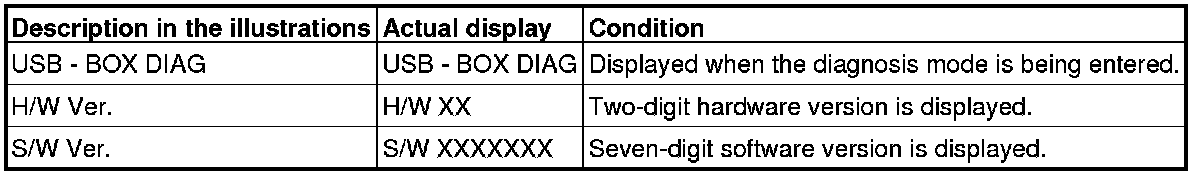

3. "USB - BOX DIAG" is displayed.
