Audio and Video Adapter




AUDIO AND VIDEO ADAPTER INSPECTION

1. Remove the audio and video adapter. (Refer to Service and Repair.)

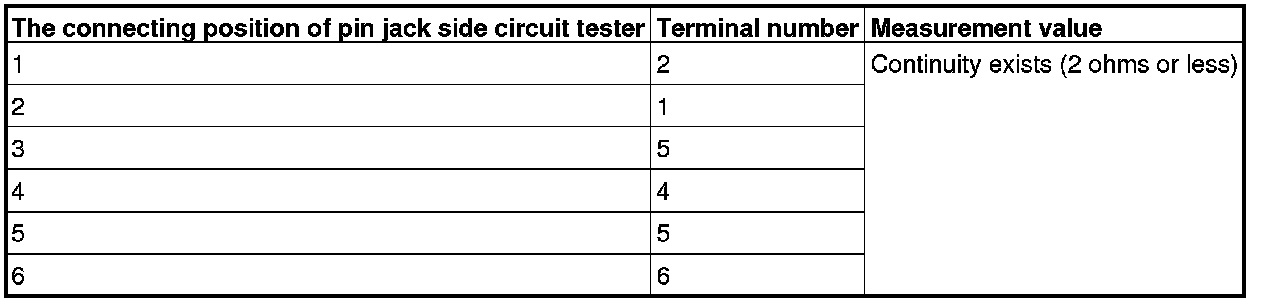

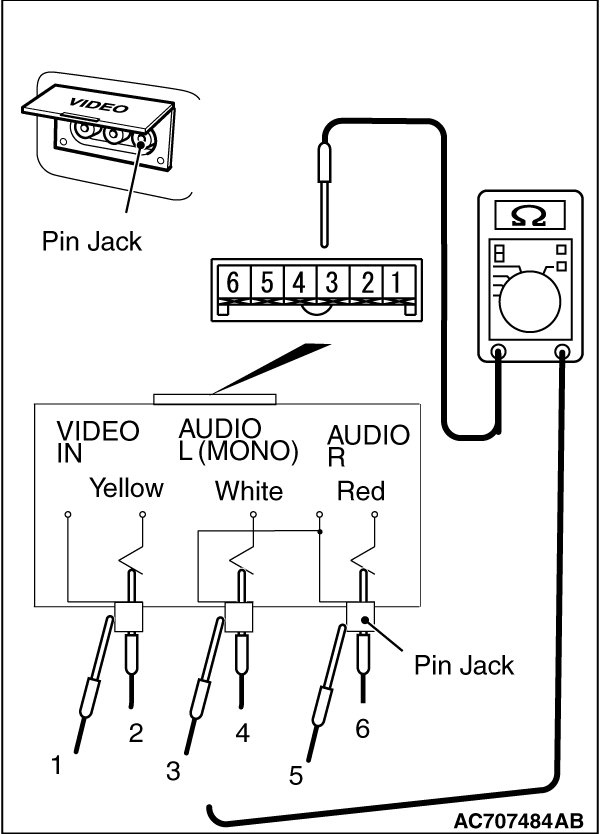

2. Check that continuity exists between the terminal and the pin jack of audio and video adapter.
