Auxiliary Input / Output Jack: Description and Operation

GENERAL INFORMATION

The USB* adapter transfers the music data from the iPod(R)
and USB memory to the radio and CD player to the multivision display via the USB box, and the data can be played by the "USB mode".
NOTE:
*:Universal serial bus

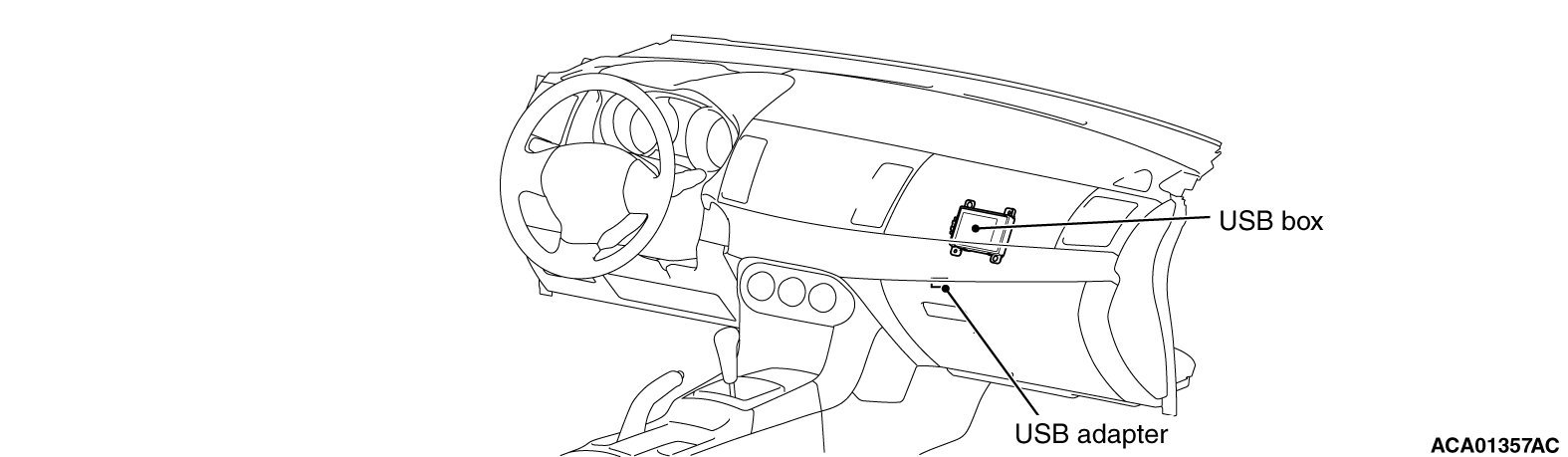

Construction diagram

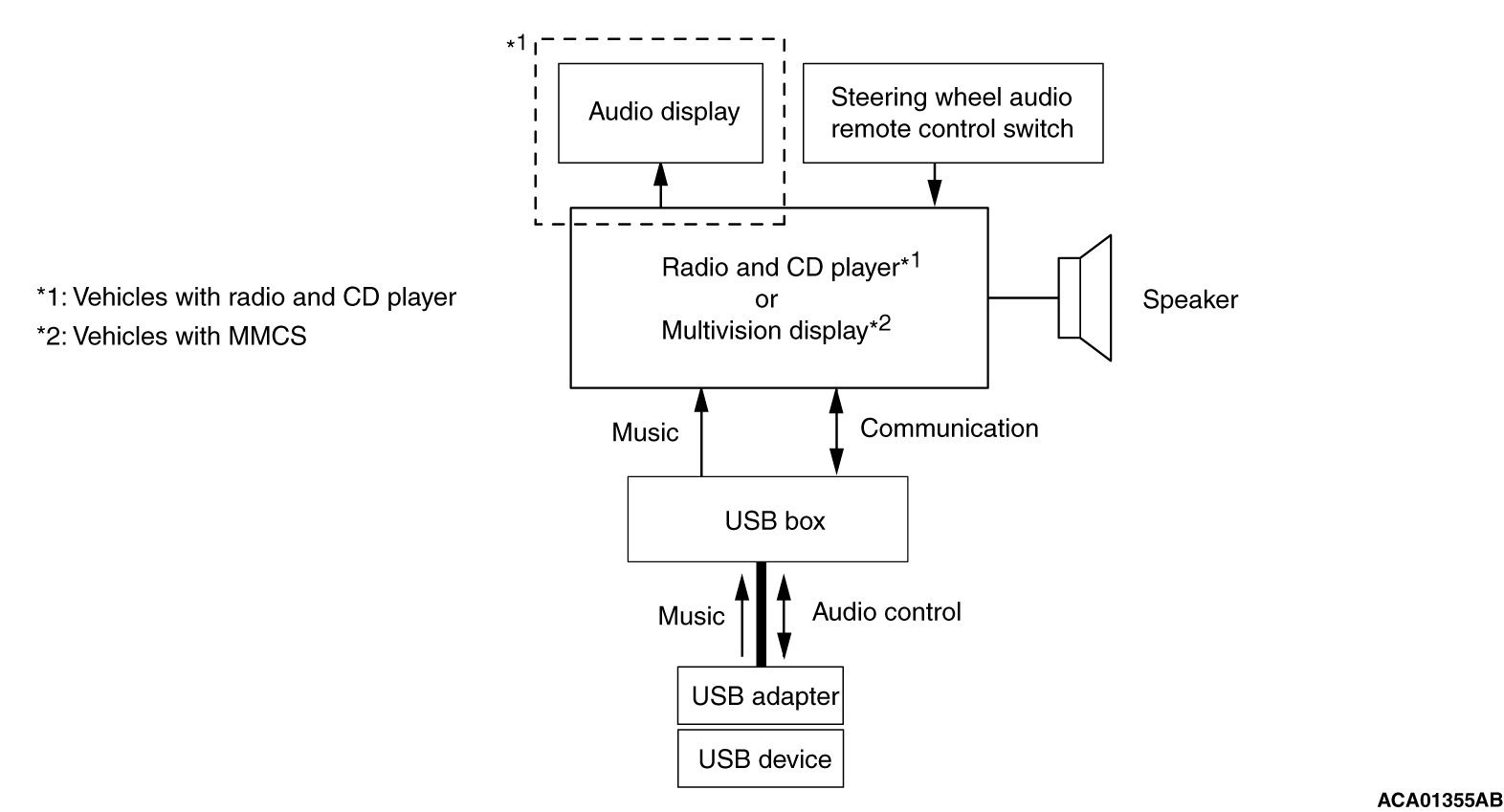

System block diagram
