Introduction

INTRODUCTION TO DIAGNOSIS

Prior to the troubleshooting, check if the causes below can be the case. If any, take actions according to the solution method.

Pairing of the bluetooth(R)device (mobile phone or music player) and hands free module cannot be made.

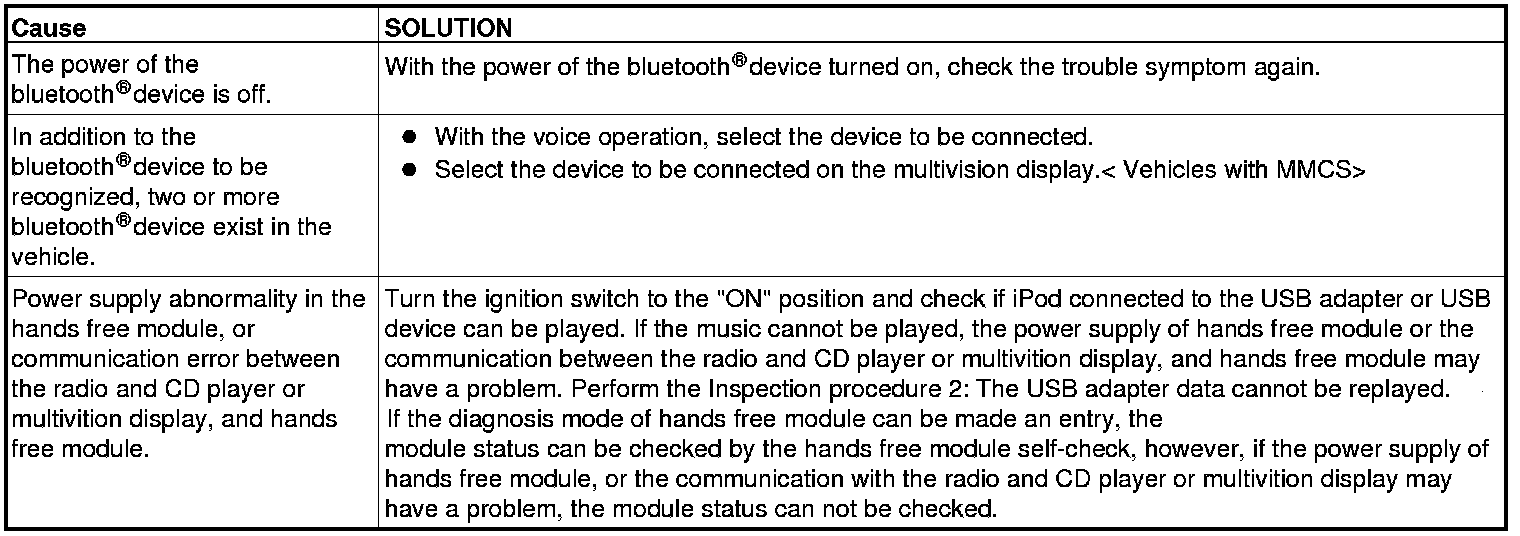

The hands free module does not recognize the bluetooth(R)device (mobile phone or music player).

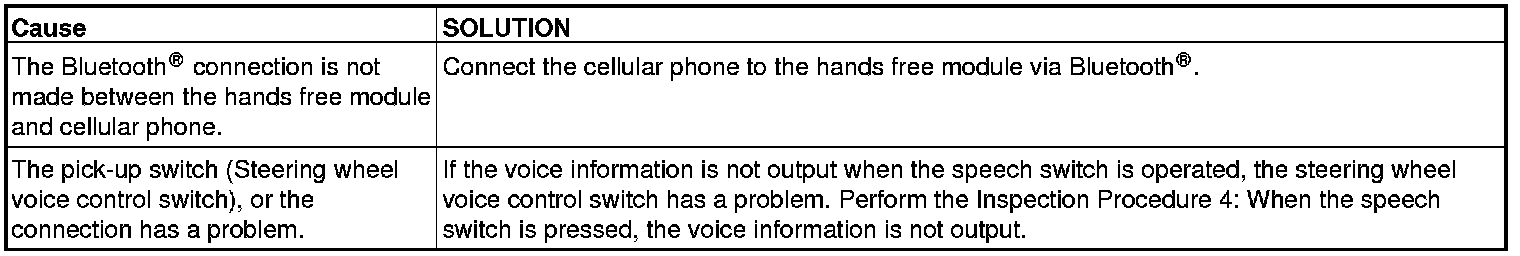

Calling cannot be made using the hands free cellular phone function.

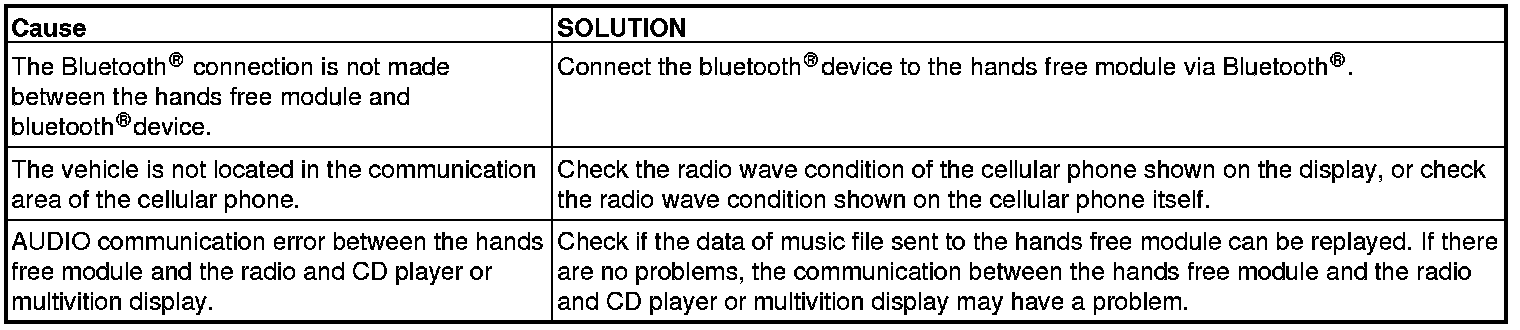

Bluetooth(R)The music player cannot be replayed.
The music data received from the USB adapter cannot be replayed.

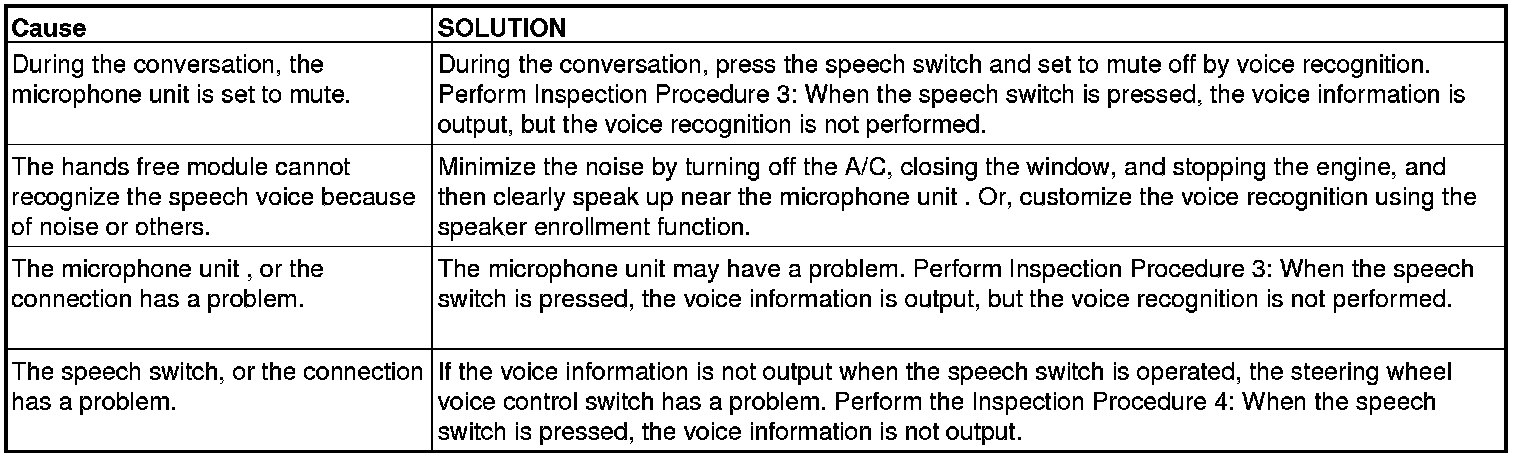

The voice recognition operation cannot be performed.
The communication voice cannot be heard by the other party.






A call cannot be received when the pick-up switch (Steering wheel voice control switch) is pressed. The voice information cannot be output from the speaker.





The pick-up switch (Steering wheel voice control switch), or the connection has a problem.

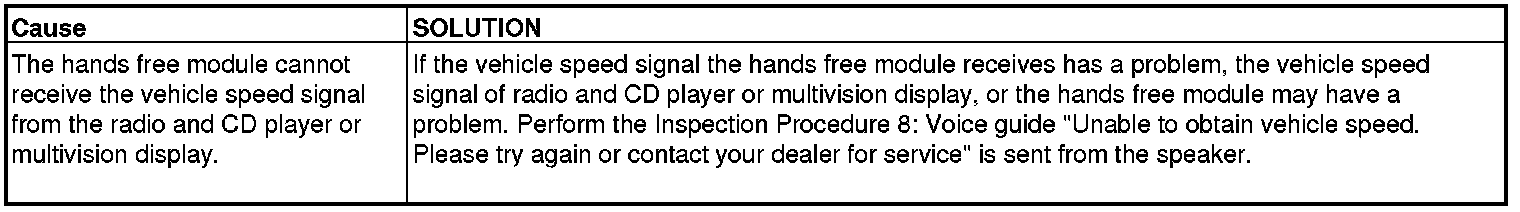

Voice guide "Unable to obtain vehicle speed. Please try again or contact your dealer for service" is sent from the speaker.
