Panic Alarm

GENERAL INFORMATION

If danger is perceived near the vehicle and if the ignition switch is in the OFF position or the key has been removed, press the panic button on the ignition key or the keyless operation key for one second, then the headlights flash and the horn sounds for approximately 3 minutes.

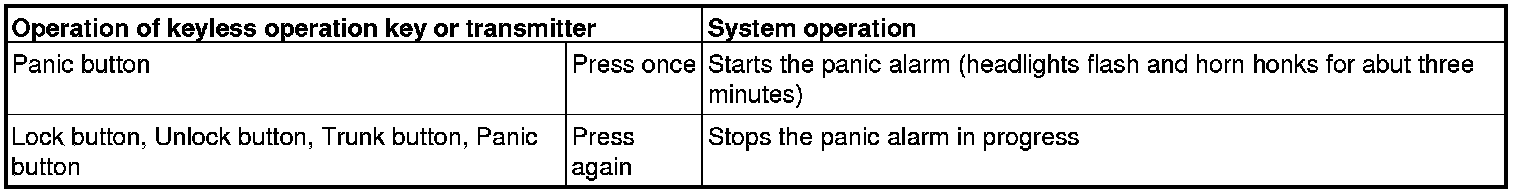

Panic alarm system operation table

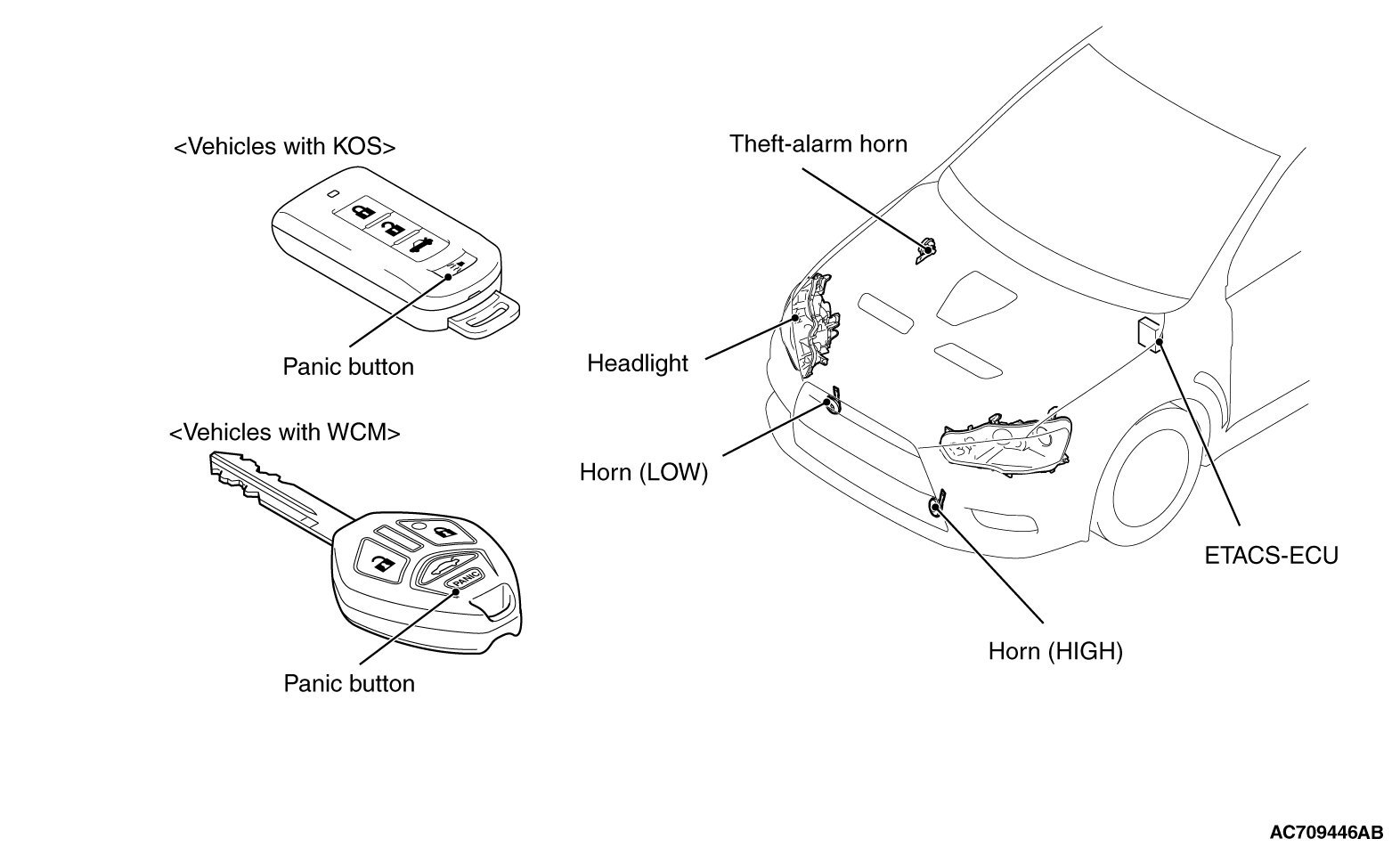

Construction diagram
