P2766
DTC P2766: Input Shaft 2 (Even number gear axle) Speed Sensor System (Poor performance)
CAUTION:
- If there is any problem in the CAN bus lines, an incorrect diagnostic trouble code may be set. Prior to this diagnosis, diagnose the CAN bus lines.
- Whenever the ECU is replaced, ensure that the CAN bus lines are normal.
DIAGNOSTIC FUNCTION
TC-SST-ECU checks that the input shaft sensor 2 is normal.
DESCRIPTIONS OF MONITOR METHODS
The even number gear side input shaft speed (revolution) is determined to be abnormal.
MONITOR EXECUTION
- Continuous
MONITOR EXECUTION CONDITIONS (OTHER MONITOR AND SENSOR)
Other Monitor (There is no temporary DTC stored in memory for the item monitored below)
- P0715: Input shaft 1 (odd number gear axle) speed sensor system (Output high range out)
- P0716: Input shaft 1 (odd number gear axle) speed sensor system (Poor performance)
- P0717: Input shaft 1 (odd number gear axle) speed sensor system (Output low range out)
Sensor (The sensor below is determined to be normal)
- Input shaft 1 (odd number gear axle) speed sensor

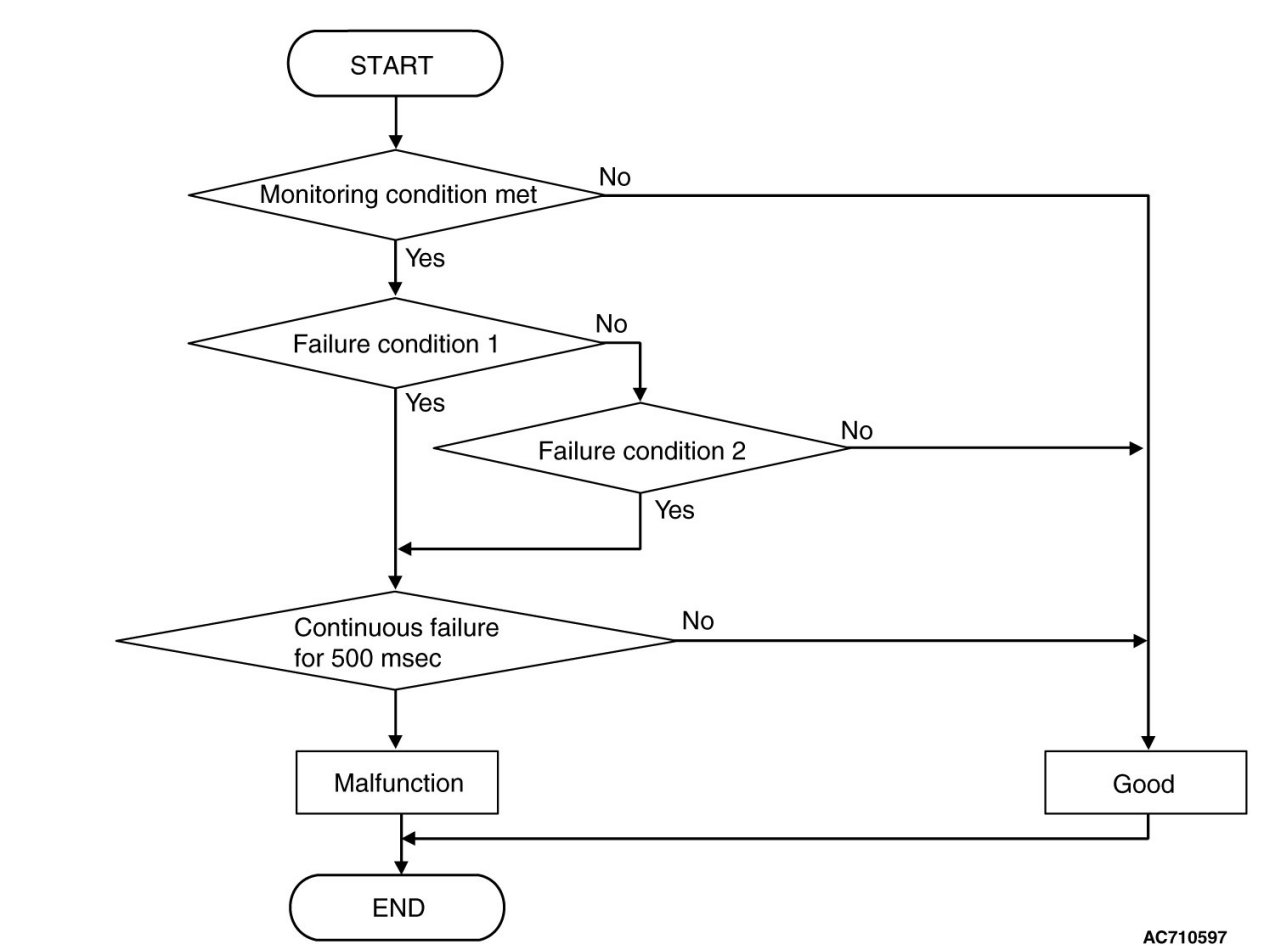

LOGIC FLOW CHARTS (Monitor Sequence)[ Rationality]

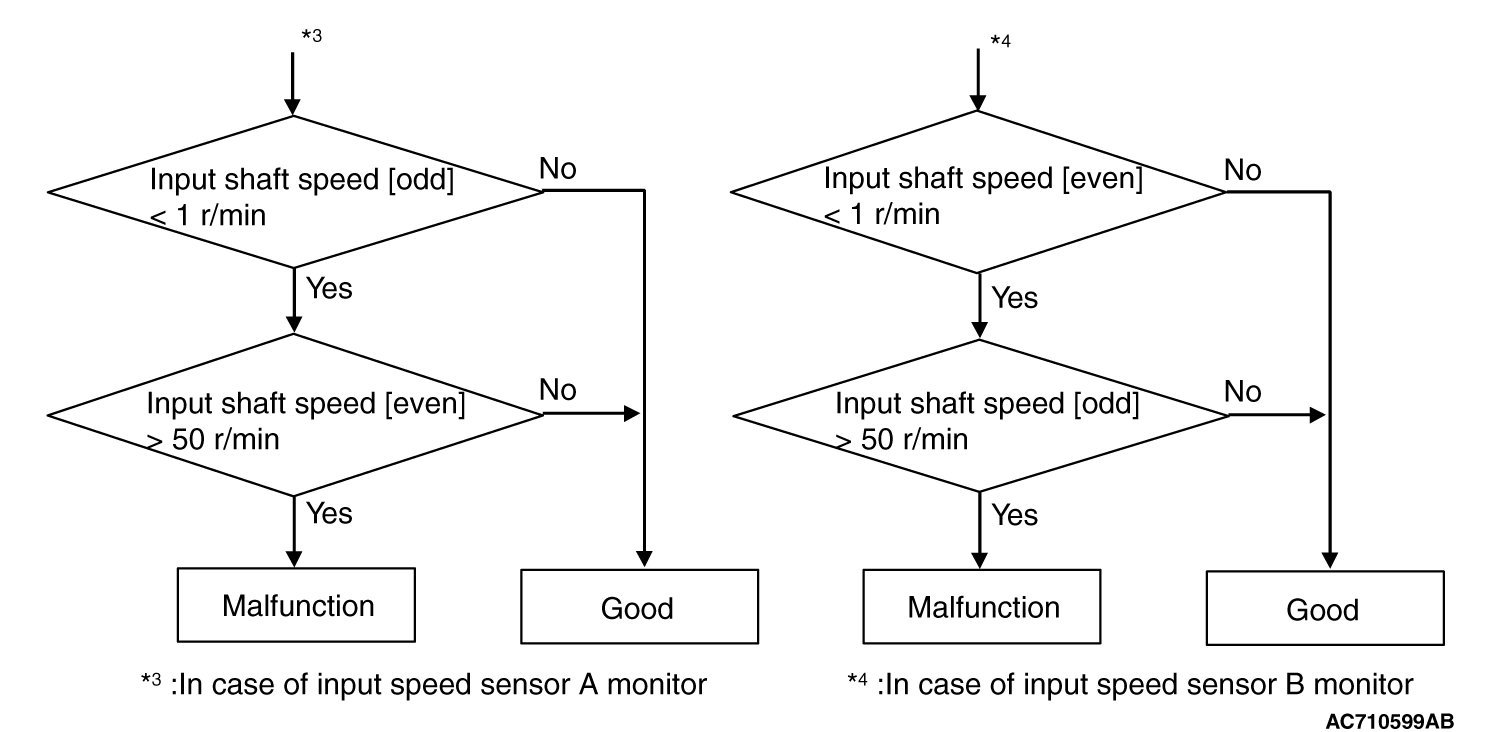

LOGIC FLOW CHARTS (Monitor Sequence)[ Rationality (Failure condition 1)]

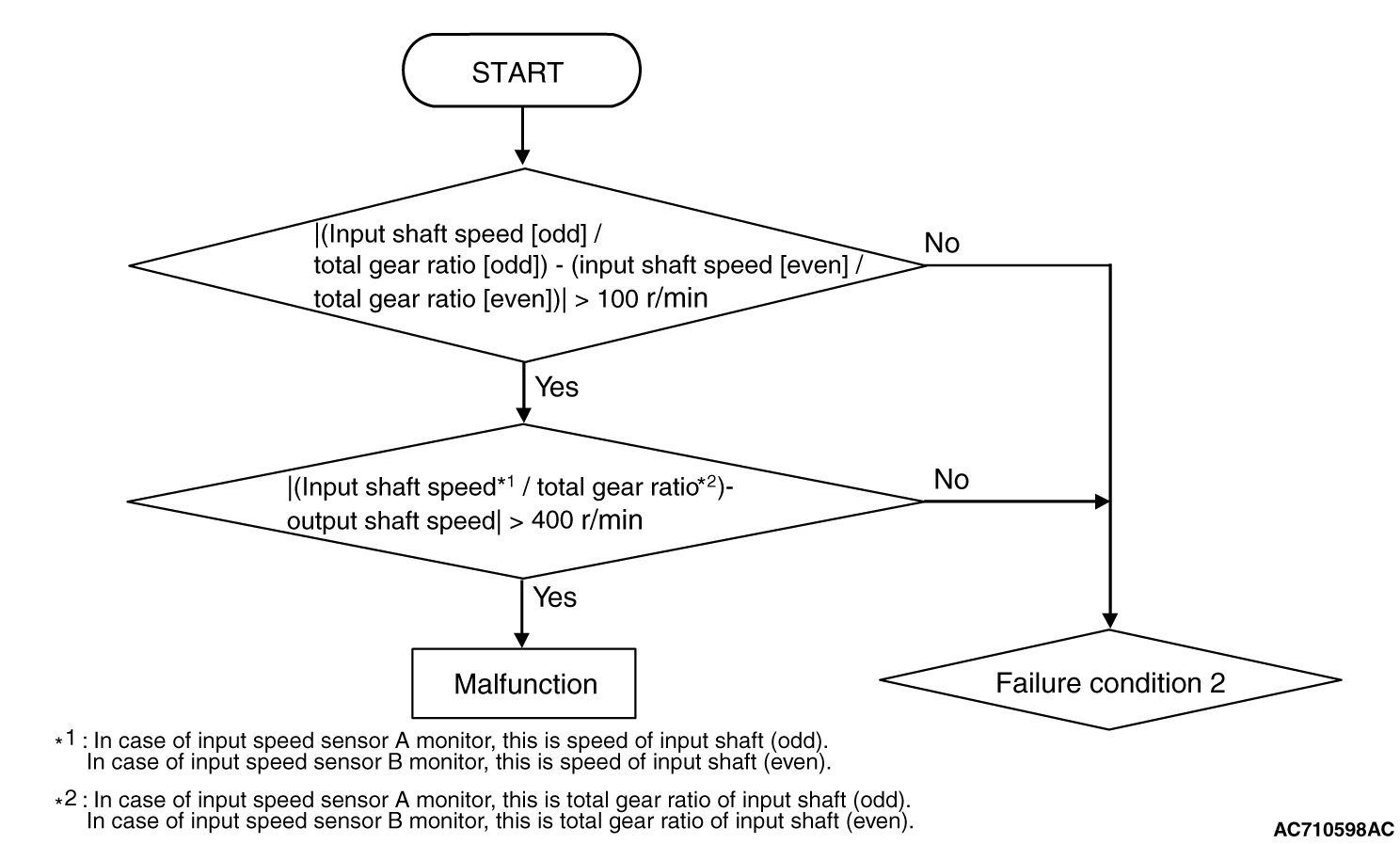

LOGIC FLOW CHARTS (Monitor Sequence)[ Rationality (Failure condition 2)]
DTC SET CONDITIONS
Check Conditions[ Rationality]
- Voltage of battery: 8 V or more.
- Voltage of battery: 16.5 V or less.
- Input shaft [odd] gear: engaged.
- Input shaft [even] gear: engaged.
JUDGMENT CRITERIA[ Rationality]
- Failure condition 1 or failure condition 2 (Refer to Logic Flow Charts (Monitor Sequence)[ Rationality]). (500 millisecond)
OBD-II DRIVE CYCLE PATTERN[ RATIONALITY]
Each value of failure condition 1 or failure condition 2 (Logic Flow Charts (Monitor Sequence) [Rationality]) returns to the normal value and remains in the state for 500 milliseconds.

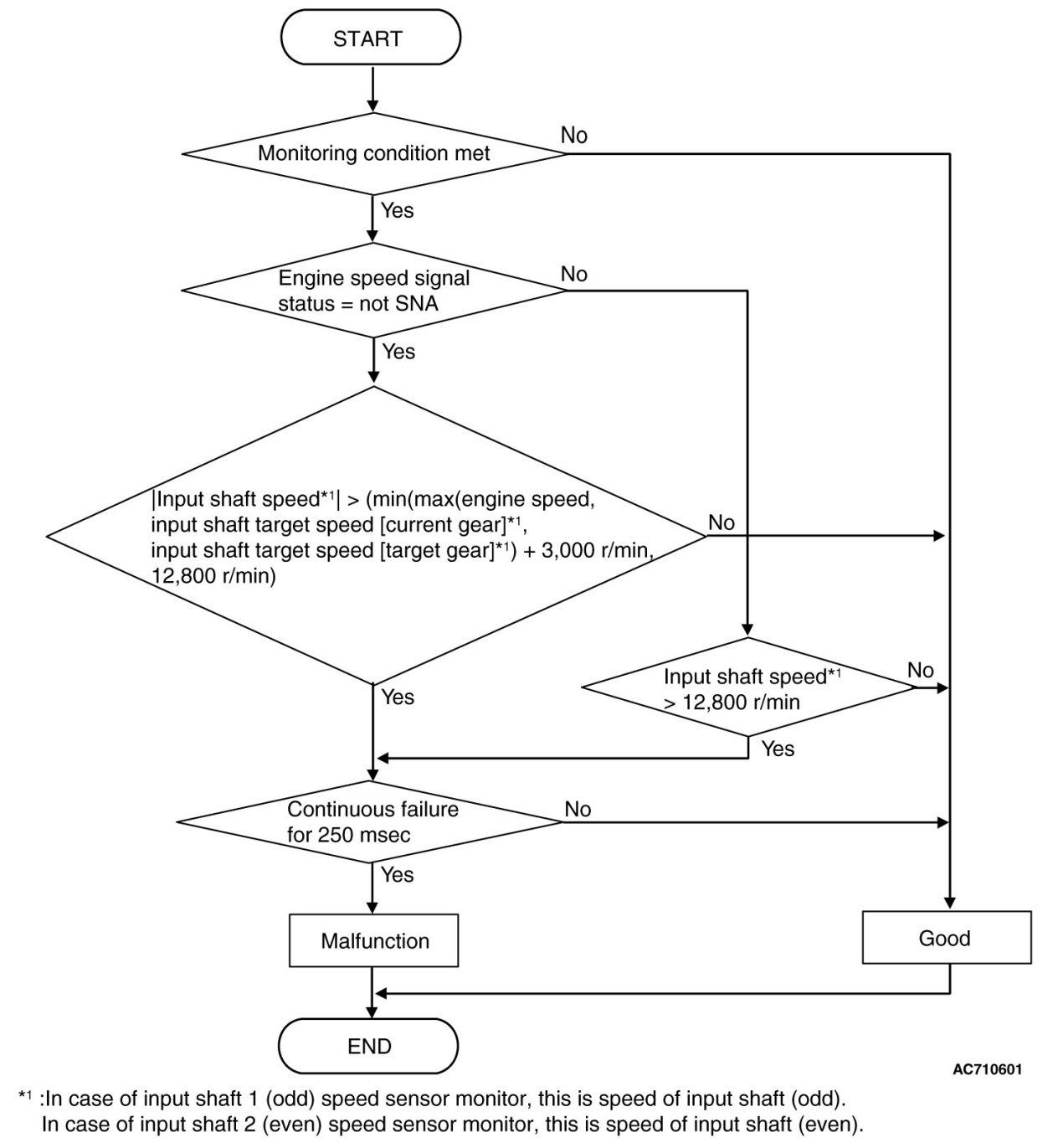

LOGIC FLOW CHARTS (Monitor Sequence)[ Rationality - plausibility failure]
DTC SET CONDITIONS
Check Conditions[ Rationality plausibility failure]
- Voltage of battery: 8 V or more.
- Voltage of battery: 16.5 V or less.
JUDGMENT CRITERIA[ Rationality plausibility failure]
- Input shaft 2 (even) speed: Refer to Logic Flow Charts (Monitor Sequence)[ Rationality plausibility failure]. (250 millisecond)
OBD-II DRIVE CYCLE PATTERN[ RATIONALITY PLAUSIBILITY FAILURE]
The value of the Logic Flow Charts (Monitor Sequence) [Rationality plausibility failure] returns to the normal value and remains in the state for 250 milliseconds.
PROBABLE CAUSES
- Malfunction of TC-SST-ECU
DIAGNOSTIC PROCEDURE
Required Special Tools:
- MB991958 Scan Tool (M.U.T.-III Sub Assembly)
- MB991824: Vehicle Communication Interface (V.C.I.)
- MB991827 M.U.T.-III USB Cable
- MB991910 M.U.T.-III Main Harness A
STEP 1. Scan tool CAN bus diagnostics
Using scan tool MB991958, diagnose the CAN bus lines.
Q. Is the check result normal?
YES Go to Step 2.
NO Repair the CAN bus lines. CAN Bus Diagnostics Chart.) After repairing the CAN bus line, go to Step 2.
STEP 2. Monitoring unit No. check
(1)Check the freeze frame data (item No. 30 to No. 37).
(2)Check which monitoring unit (No. 115 or No. 240) is set.
Q. Which monitoring unit is set, No. 115 or No. 240?
No. 115 : Go to Step 4
No. 240 : Go to Step 3
STEP 3. Check whether the DTC is reset.
(1)Erase the DTC.
(2)Drive the vehicle at 50 km/h (31 mph) or more.
(3)Check that the DTC is reset.
Q. Is DTC No.P2766 set?
YES Replace the transaxle assembly. (Refer to Removal and Replacement.)
NO Intermittent malfunction. How to Cope With Intermittent Malfunctions.)
STEP 4. Check whether the DTC is reset.
(1)Erase the DTC.
(2)Drive with shifting to each gear range.
(3)Check that the DTC is reset.
Q. Is DTC No.P2766 set?
YES Replace the transaxle assembly. (Refer to Removal and Replacement.)
NO Intermittent malfunction. How to Cope With Intermittent Malfunctions.)
