P2135

DTC P2135: Throttle Position Sensor (main and sub) Range/Performance Problem

THROTTLE POSITION SENSOR (main and sub) RANGE/PERFORMANCE PROBLEM CIRCUIT

- Refer to DTC P0122 - Throttle Position Sensor (main) Circuit Low Input P0122 .

- Refer to DTC P0222 - Throttle Position Sensor (sub) Circuit Low Input P0222 .

CIRCUIT OPERATION

- Refer to DTC P0122 - Throttle Position Sensor (main) Circuit Low Input P0122 .

- Refer to DTC P0222 - Throttle Position Sensor (sub) Circuit Low Input P0222 .

TECHNICAL DESCRIPTION

- ECM checks the throttle position sensor output signal characteristics for abnormal conditions.

DESCRIPTIONS OF MONITOR METHODS

Detect malfunction if the relation between throttle position sensor (main) and throttle position sensor (sub) is wrong.

MONITOR EXECUTION

Continuous

MONITOR EXECUTION CONDITIONS (Other monitor and Sensor)

Other Monitor (There is no temporary DTC stored in memory for the item monitored below)

- Not applicable
Sensor (The sensor below is determined to be normal)

- Not applicable

DTC SET CONDITIONS[ Range/Performance problem-relation between main and sub]

Logic Flow Chart

Check Conditions

- The target output voltage of the throttle position sensor is 0.9 volt or less.
- Throttle position sensor (main) output voltage is between 0.2 and 4.8 volts.
- Throttle position sensor (sub) output voltage is between 0.2 and 4.8 volts.
- Battery positive voltage is higher than 8.3 volts.
Judgement Criterion

- The difference between V1 and V2 is more than 0.3 volt for 0.3 second.
V1: Throttle position sensor (main) output voltage
V2: Throttle position sensor (sub) output voltage subtracted from 5 volts

DTC SET CONDITIONS[ Range/Performance problem-relation between main and sub]

Logic Flow Chart

Check Conditions

- Throttle position sensor (main) output voltage is between 0.2 and 4.8 volts.
- Throttle position sensor (sub) output voltage is between 0.2 and 4.8 volts.
Judgement Criterion

- For 0.3 second, the sum of the output voltage of the throttle position sensors (main) and (sub) is 4.5 V or less, or 5.5 V or more.

FAIL-SAFE AND BACKUP FUNCTION

- Throttle opening degree position is in default position.

OBD-II DRIVE CYCLE PATTERN

None.

TROUBLESHOOTING HINTS (The most likely causes for this code to be set are:)

- Throttle position sensor failed.
- Harness damage in throttle position sensor circuit or connector damage.
- ECM failed.

DIAGNOSIS

Required Special Tools:

- MB991958: Scan tool (M.U.T.-III Sub Assembly)
- MB991824: V.C.I.
- MB991827: USB Cable
- MB991910: Main Harness A

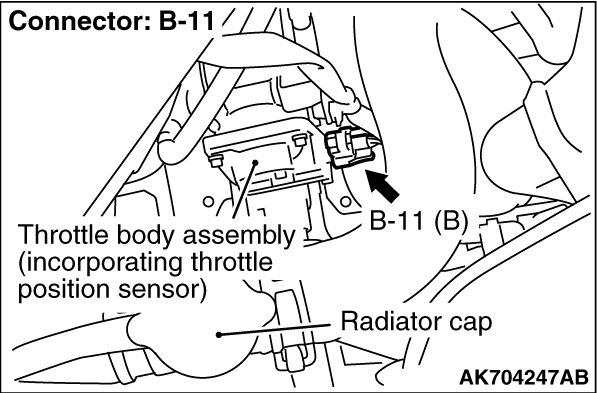

STEP 1. Check harness connector B-11 at throttle position sensor for damage.

Q. Is the harness connector in good condition?

YES Go to Step 2.
NO Repair or replace it. Harness Connector Inspection.
Then go to Step 11.
STEP 2. Check the continuity at throttle position sensor harness side connector B-11.

(1)Disconnect the connector B-11 and measure at the harness side.

(2)Measure the continuity between terminal No. 3 and ground.

- Continuity (2 ohms or less)

Q. Does continuity exist?

YES Go to Step 6.

NO Go to Step 3.

STEP 3. Check harness connector B-09 at ECM for damage.

Q. Q: Is the harness connector in good condition?

YES Go to Step 4.
NO Repair or replace it. Harness Connector Inspection.
Then go to Step 11.
STEP 4. Check for harness damage between throttle position sensor connector B-11 (terminal No. 3) and ECM connector B-09 (terminal No. 13).

Q. Is the harness wire in good condition?

YES Go to Step 5.
NO Repair it. Then go to Step 11.
STEP 5. Using scan tool MB991958, read the diagnostic trouble code
(DTC).

CAUTION:
To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958.

(1)Connect scan tool MB991958 to the data link connector.
(2)Turn the ignition switch to the "ON" position.
(3)Erase the DTC.
(4)Depress the accelerator pedal fully for a few seconds.
(5)Check the DTC.
(6)Turn the ignition switch to the "LOCK" (OFF) position.

Q. Is DTC P2135 set?

YES Replace the ECM (Refer to, Removal and Installation Removal and Replacement).
Then go to Step 11.

NO It can be assumed that this malfunction is intermittent. How to Cope With Intermittent Malfunctions.

STEP 6. Check harness connector B-09 at ECM for damage.

Q. Is the harness connector in good condition?

YES Go to Step 7.
NO Repair or replace it. Harness Connector Inspection.
Then go to Step 11.
STEP 7. Check for harness damage between throttle position sensor connector B-11 (terminal No. 5) and ECM connector B-09 (terminal No. 12).

Q. Is the harness wire in good condition?

YES Go to Step 8.
NO Repair it. Then go to Step 11.
STEP 8. Check for harness damage between throttle position sensor connector B-11 (terminal No. 4) and ECM connector B-09 (terminal No. 10).

Q. Is the harness wire in good condition?

YES Go to Step 9.
NO Repair it. Then go to Step 11.
STEP 9. Check for harness damage between throttle position sensor connector B-11 (terminal No. 6) and ECM connector B-09 (terminal No. 11).

Q. Is the harness wire in good condition?

YES Go to Step 10.
NO Repair it. Then go to Step 11.
STEP 10. Replace the throttle body assembly.

(1)Replace the throttle body assembly.

(2)Turn the ignition switch to the "ON" position.

(3)Erase the DTC.

(4)Depress the throttle fully for a few seconds.

(5)Check the DTC.

(6)Turn the ignition switch to the "LOCK" (OFF) position.

Q. Is DTC P2135 set?

YES Replace the ECM (Refer to, Removal and Installation Removal and Replacement).
Then go to Step 11.
NO The inspection is complete.
STEP 11. Using scan tool MB991958, read the diagnostic trouble code
(DTC).
