DTC P2122: Accelerator Pedal Position Sensor (main) Circuit Low Input
CIRCUIT OPERATION
- A 5-volt power supply is applied on the accelerator pedal position sensor (main) power terminal (terminal No. 1) from the ECM (terminal No. 75).
- A voltage that is according to the accelerator opening angle is sent to the ECM (terminal No. 74) from the accelerator pedal position sensor (main) output terminal (terminal No. 3).
- The ground terminal (terminal No. 2) is grounded with ECM (terminal No. 76).
TECHNICAL DESCRIPTION
- The accelerator pedal position sensor (main) outputs voltage which corresponds to the accelerator pedal depression.
- The ECM checks whether the voltage is within a specified range.
DESCRIPTIONS OF MONITOR METHODS
Accelerator pedal position sensor (main) output voltage is out of specified range.
MONITOR EXECUTION
Continuous
MONITOR EXECUTION CONDITIONS (Other monitor and Sensor)
Other Monitor (There is no temporary DTC stored in memory for the item monitored below)
- Not applicable
Sensor (The sensor below is determined to be normal)
- Not applicable
DTC SET CONDITIONS

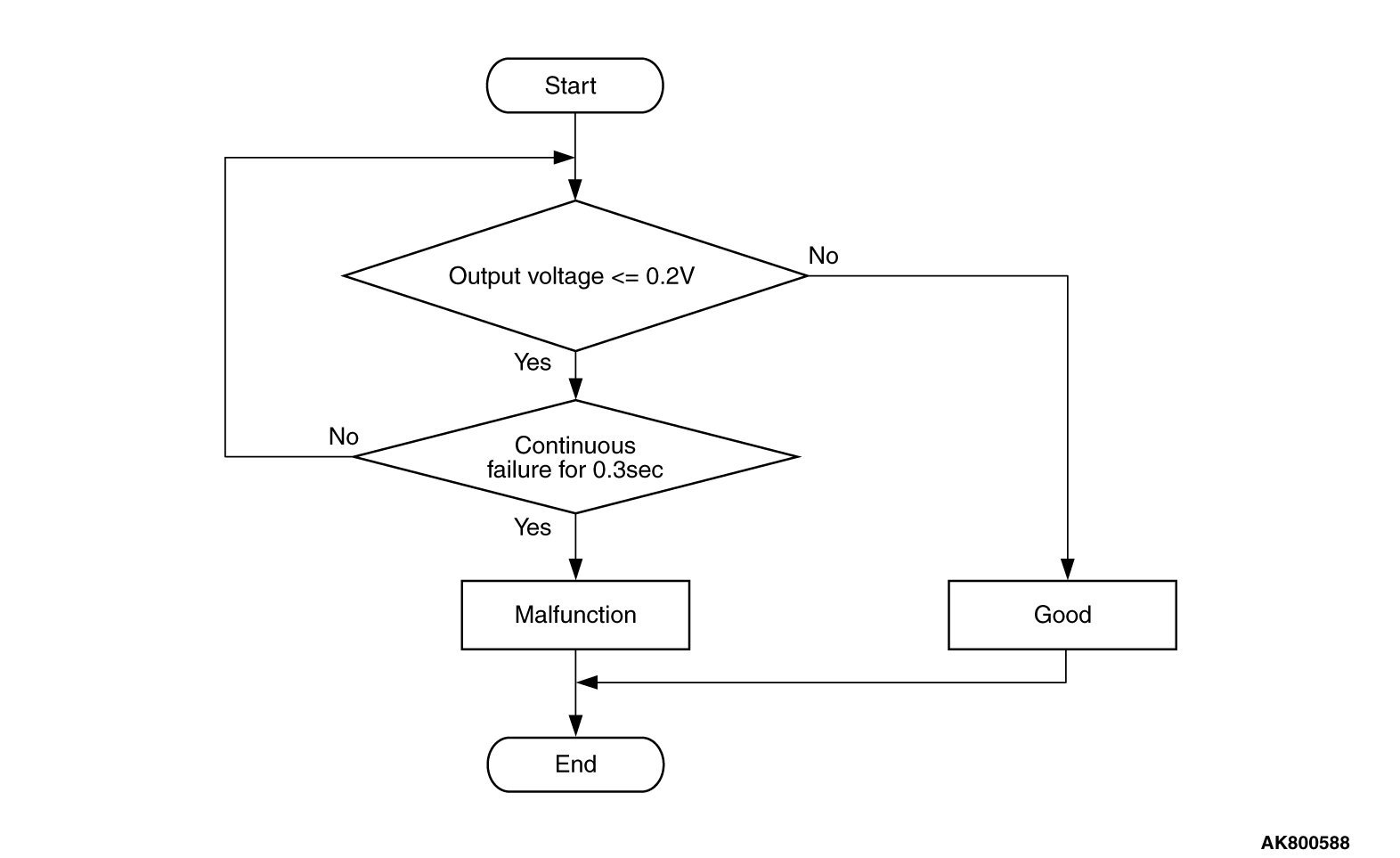

Logic Flow Chart
Check Condition
- Ignition switch is "ON" position.
Judgement Criterion
- Accelerator pedal position sensor (main) output voltage is 0.2 volt or less for 0.3 second.
FAIL-SAFE AND BACKUP FUNCTION
- Throttle opening degree is restricted.
- Throttle opening degree position is in default position if accelerator pedal position sensor (sub) fails.
OBD-II DRIVE CYCLE PATTERN
None.
TROUBLESHOOTING HINTS (The most likely causes for this code to be set are:)
- Accelerator pedal position sensor failed.
- Open or shorted accelerator pedal position sensor (main) circuit, harness damage or connector damage.
- ECM failed.
DIAGNOSIS
Required Special Tools:
- MB991958: Scan tool (M.U.T.-III Sub Assembly)
- MB991824: V.C.I.
- MB991827: USB Cable
- MB991910: Main Harness A
STEP 1. Using scan tool MB991958, check data list item 11: Accelerator Pedal Position Sensor (main).
CAUTION:
To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958.
(1)Connect scan tool MB991958 to the data link connector.
(2)Turn the ignition switch to the "ON" position.
(3)Set scan tool MB991958 to the data reading mode for item 11, Accelerator Pedal Position Sensor (main).
- Output voltage is between 0.9 and 1.1 volts when foot is released from accelerator pedal.
- Output voltage is 4.0 volts or higher when accelerator pedal is fully depressed.
(4)Turn the ignition switch to the "LOCK" (OFF) position.
Q. Is the sensor operating properly?
YES It can be assumed that this malfunction is intermittent. How to Cope With Intermittent Malfunctions.
NO Go to Step 2.
STEP 2. Check harness connector C-01 at accelerator pedal position sensor for damage.
Q. Is the harness connector in good condition?
YES Go to Step 3.
NO Repair or replace it. Harness Connector Inspection.
Then go to Step 11.
STEP 3. Measure the sensor supply voltage at accelerator pedal position sensor harness side connector C-01.
(1)Disconnect the connector C-01 and measure at the harness side.
(2)Turn the ignition switch to the "ON" position.
(3)Measure the voltage between terminal No. 1 and ground.
- Voltage should be between 4.9 and 5.1 volts.
(4)Turn the ignition switch to the "LOCK" (OFF) position.
Q. Is the measured voltage between 4.9 and 5.1 volts?
YES Go to Step 7.
NO Go to Step 4.
STEP 4. Check harness connector B-10 at ECM for damage.
Q. Is the harness connector in good condition?
YES Go to Step 5.
NO Repair or replace it. Harness Connector Inspection.
Then go to Step 11.
STEP 5. Check for open circuit and short circuit to ground between accelerator pedal position sensor connector C-01 (terminal No. 1) and ECM connector B-10 (terminal No. 75).
Q. Is the harness wire in good condition?
YES Go to Step 6.
NO Repair it. Then go to Step 11.
STEP 6. Using scan tool MB991958, check data list item 11: Accelerator Pedal Position Sensor (main).
(1)Turn the ignition switch to the "ON" position.
(2)Set scan tool MB991958 to the data reading mode for item 11, Accelerator Pedal Position Sensor (main).
- Output voltage is between 0.9 and 1.1 volts when foot is released from accelerator pedal.
- Output voltage is 4.0 volts or higher when accelerator pedal is fully depressed.
(3)Turn the ignition switch to the "LOCK" (OFF) position.
Q. Is the sensor operating properly?
YES It can be assumed that this malfunction is intermittent. How to Cope With Intermittent Malfunctions.
NO Replace the ECM (Refer to, Removal and Installation Removal and Replacement).
Then go to Step 11.
STEP 7. Check harness connector B-10 at ECM for damage.
Q. Is the harness connector in good condition?
YES Go to Step 8.
NO Repair or replace it. Harness Connector Inspection.
Then go to Step 11.
STEP 8. Check for harness damage between accelerator pedal position sensor connector C-01 (terminal No. 1) and ECM connector B-10 (terminal No. 75).
Q. Is the harness wire in good condition?
YES Go to Step 9.
NO Repair it. Then go to Step 11.
STEP 9. Check for open circuit, short circuit to ground and harness damage between accelerator pedal position sensor connector C-01 (terminal No. 3) and ECM connector B-10
(terminal No. 74).
Q. Is the harness wire in good condition?
YES Go to Step 10.
NO Repair it. Then go to Step 11.
STEP 10. Replace the accelerator pedal position sensor.
(1)Replace the accelerator pedal position sensor.
(2)Turn the ignition switch to the "ON" position.
(3)After the DTC has been deleted, read the DTC again.
(4)Turn the ignition switch to the "LOCK" (OFF) position.
Q. Is DTC P2122 set?
YES Replace the ECM (Refer to, Removal and Installation Removal and Replacement).
Then go to Step 11.
NO The inspection is complete.
STEP 11. Using scan tool MB991958, read the diagnostic trouble code
(DTC).
(1)Turn the ignition switch to the "ON" position.
(2)After the DTC has been deleted, read the DTC again.
(3)Turn the ignition switch to the "LOCK" (OFF) position.
Q. Is DTC P2122 set?
YES Retry the troubleshooting.
NO The inspection is complete.
