P2096

DTC P2096: Post Catalyst Fuel Trim System too Lean

TECHNICAL DESCRIPTION

- The ECM effects air/fuel ratio feedback control in accordance with the signals from the heated oxygen sensor (front).
- If the heated oxygen sensor (front) has deteriorated, corrections will be made by the heated oxygen sensor (rear).

DESCRIPTIONS OF MONITOR METHODS

- When an abnormality exists in the heated oxygen sensor (front), the amount of compensated fuel injection is abnormal. When this situation continues, it is judged to be faulty.
- If an abnormality exists in the heated oxygen sensor (rear), also it is judged to be faulty even though the heated oxygen sensor (front) is normal.

MONITOR EXECUTION

Continuous

MONITOR EXECUTION CONDITIONS (Other monitor and Sensor)

Other Monitor (There is no temporary DTC stored in memory for the item monitored below)

- Heated oxygen sensor (front) monitor
- Heated oxygen sensor (rear) monitor
- Heated oxygen sensor (front) heater monitor
- Heated oxygen sensor (rear) heater monitor
- Heated oxygen sensor (front) inactive monitor
- Heated oxygen sensor offset voltage monitor
- Misfire monitor
- Fuel system monitor
- Air/fuel ratio feedback monitor
Sensor (The sensor below is determined to be normal)

- Mass airflow sensor
- Engine coolant temperature sensor
- Intake air temperature sensor
- Barometric pressure sensor
- Throttle position sensor
- Accelerator pedal position sensor

DTC SET CONDITIONS

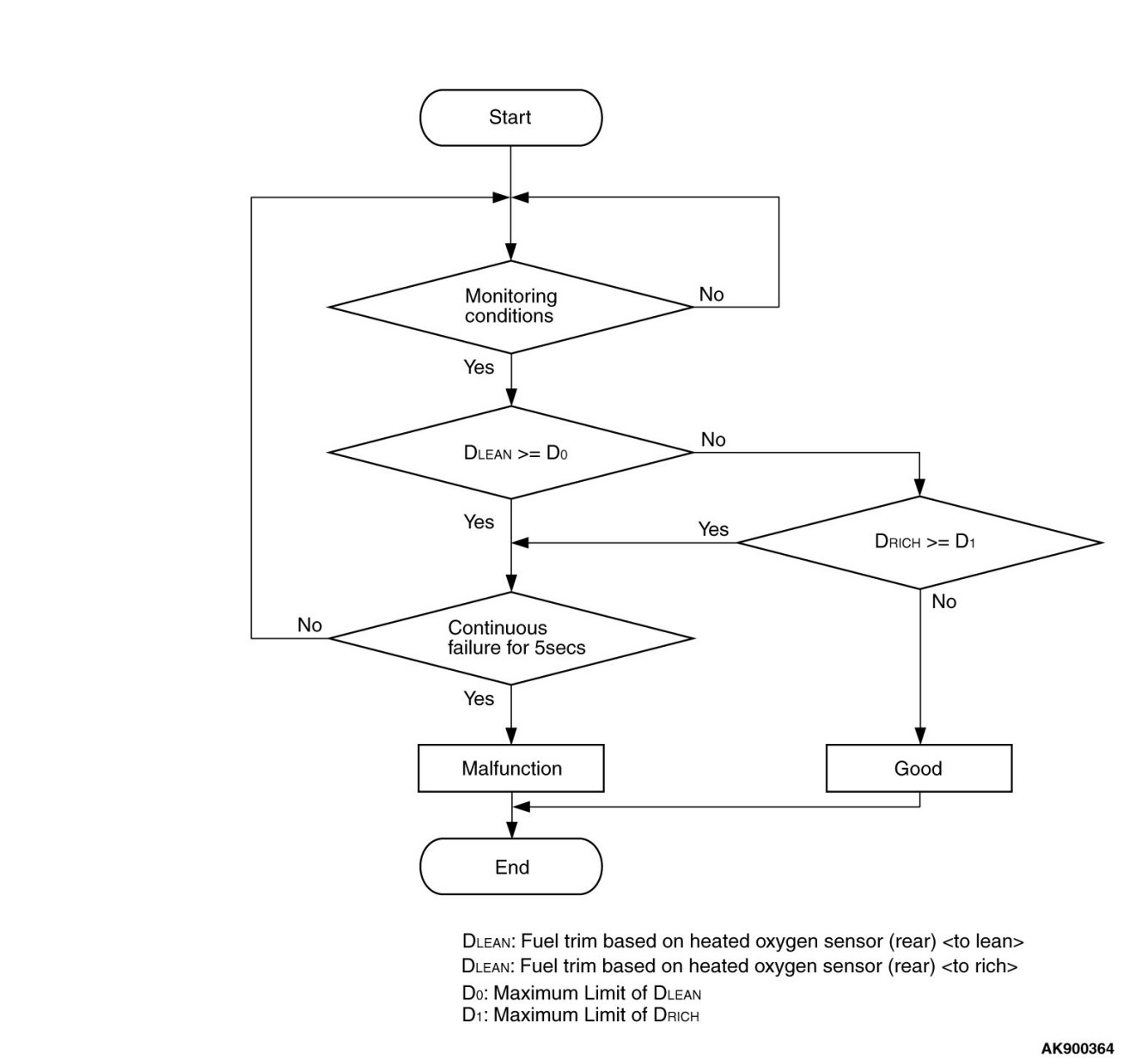

Logic Flow Chart






Check Conditions

- Engine coolant temperature is more than 76°C (169°F).
- Under the closed loop air/fuel control for more than 10 seconds.
- More than 90 seconds have passed since the engine starting sequence was completed.
- Mass airflow sensor output is more than 8 g/sec.
- After the engine start is completed, the accumulated time, in which four conditions described above are satisfied, is more than 60 seconds.
Judgement Criterion

- The amount of compensated rich air/fuel ratio is output by the heated oxygen sensor (rear). The status that the amount of compensated rich air/fuel ratio is greater than the specified amount continues for 5 seconds.

FAIL-SAFE AND BACKUP FUNCTION

- None

OBD-II DRIVE CYCLE PATTERN

Refer to Diagnostic Function - OBD-II Drive Cycle - Pattern 1 Monitors, Trips, Drive Cycles and Readiness Codes .

TROUBLESHOOTING HINTS (The most likely causes for this code to be set are:)

- Heated oxygen sensor (front) failed.
- Heated oxygen sensor (rear) failed.
- Injector failed.
- ECM failed.

DIAGNOSIS

Required Special Tools:

- MB991958: Scan Tool (M.U.T.-III Sub Assembly)
- MB991824: V.C.I.
- MB991827: USB Cable
- MB991910: Main Harness A

STEP 1. Using scan tool MB991958, read the diagnostic trouble code (DTC).





CAUTION:
To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958.

(1)Connect scan tool MB991958 to the data link connector.
(2)Turn the ignition switch to the "ON" position.
(3)Read the DTC.
(4)Turn the ignition switch to the "LOCK" (OFF) position.

Q. Is the diagnostic trouble code other than P2096 set?

YES Refer to, Diagnostic Trouble Code Chart Multiport Fuel Injection (MFI).

NO Go to Step 2.

STEP 2. Replace the heated oxygen sensor (front).

(1)Replace the heated oxygen sensor (front).

(2)Carry out a test drive with the drive cycle pattern. Refer to Diagnostic Function - OBD-II Drive Cycle - Pattern 1 Monitors, Trips, Drive Cycles and Readiness Codes.

(3)Check the diagnostic trouble code (DTC).

Q. Is DTC P2096 set?

YES Go to Step 3.
NO The inspection is complete.
STEP 3. Replace the heated oxygen sensor (rear).

(1)Replace the heated oxygen sensor (rear).

(2)Carry out a test drive with the drive cycle pattern. Refer to Diagnostic Function - OBD-II Drive Cycle - Pattern 1 Monitors, Trips, Drive Cycles and Readiness Codes.

(3)Check the diagnostic trouble code (DTC).

Q. Is DTC P2096 set?

YES Go to Step 4.
NO The inspection is complete.
STEP 4. Replace the injector.

(1)Replace the injector.

(2)Carry out a test drive with the drive cycle pattern. Refer to Diagnostic Function - OBD-II Drive Cycle - Pattern 1 Monitors, Trips, Drive Cycles and Readiness Codes.

(3)Check the diagnostic trouble code (DTC).

Q. Is DTC P2096 set?

YES Replace the ECM (Refer to, Removal and Installation Removal and Replacement).
NO The inspection is complete.
