P186F

DTC P186F: High side 3 system (Voltage low range out)

CAUTION:

- If there is any problem in the CAN bus lines, an incorrect diagnostic trouble code may be set. Prior to this diagnosis, diagnose the CAN bus lines.
- Whenever the ECU is replaced, ensure that the CAN bus lines are normal.

DIAGNOSTIC FUNCTION

TC-SST-ECU checks that the high side 3 circuit is normal.

DESCRIPTIONS OF MONITOR METHODS

The voltage of the high side 3 circuit is determined to be too low.

MONITOR EXECUTION

- Continuous

MONITOR EXECUTION CONDITIONS (OTHER MONITOR AND SENSOR)

Other Monitor (There is no temporary DTC stored in memory for the item monitored below)

- P0753: Shift select solenoid 1 system (Open circuit)
- P0973: Shift select solenoid 1 system (Short to ground)
- P0974: Shift select solenoid 1 system (Short to power supply)
- P2727: Clutch/shift pressure solenoid 2 system (Open circuit)
- P2728: Clutch/shift pressure solenoid 2 system (Overcurrent)
- P2729: Clutch/shift pressure solenoid 2 system (Short to ground)
- P2730: Clutch/shift pressure solenoid 2 system (Short to power supply)
- P2809: Clutch/shift switching solenoid 2, spool stuck
- P2812: Clutch/shift switching solenoid 2 system (Open circuit)
- P2814: Clutch/shift switching solenoid 2 system (Short to ground)
- P2815: Clutch/shift switching solenoid 2 system (Short to power supply)
- P181B: Clutch 1 (Pressure low range out)
- P181C: Clutch 1 (Pressure high range out)
- P181E: Clutch 2 (Pressure low range out)
- P181F: Clutch 2 (Pressure high range out)
Sensor (The sensor below is determined to be normal)

- Shift select solenoid 1
- Clutch/shift pressure solenoid 2
- Clutch/shift switching solenoid 2

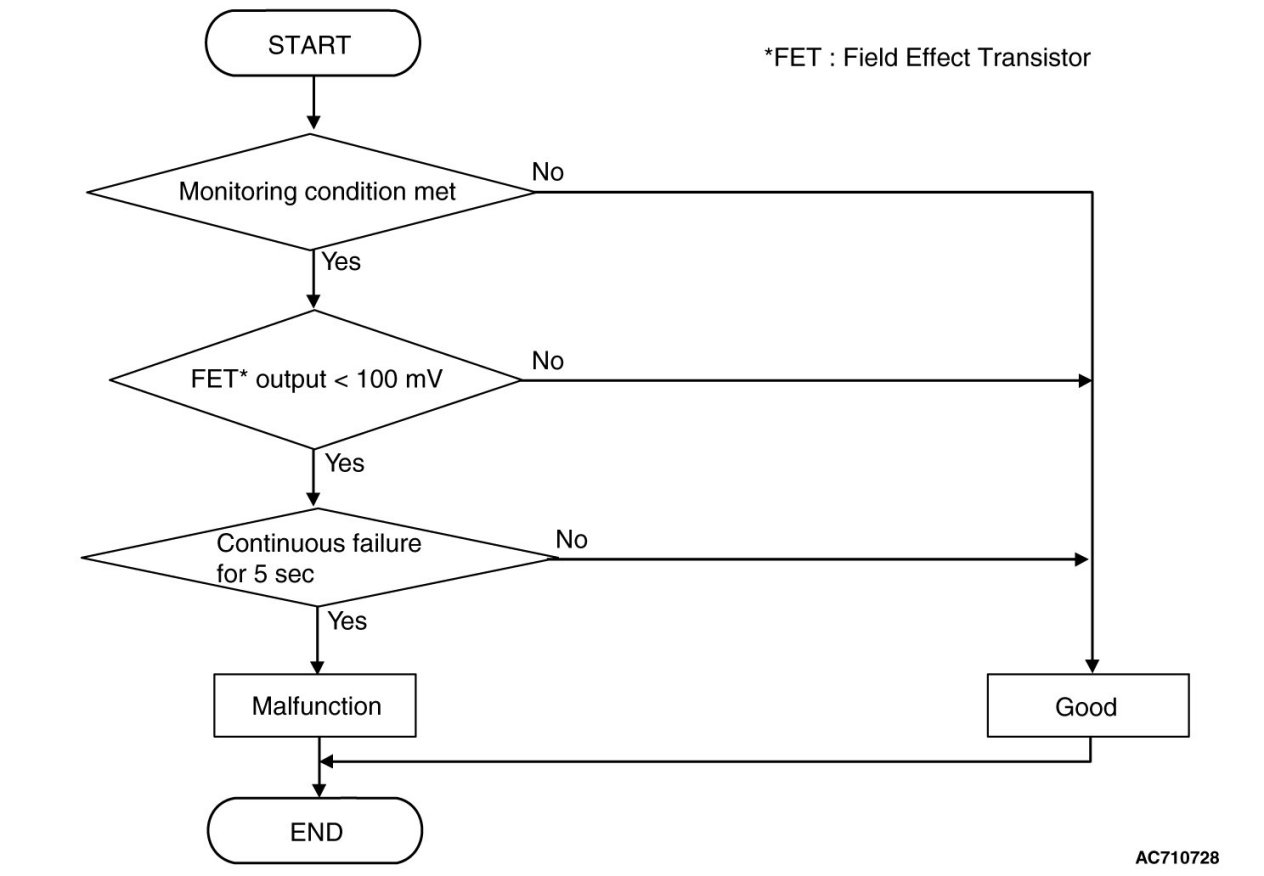

LOGIC FLOW CHARTS (Monitor Sequence)





DTC SET CONDITIONS

Check Conditions

- Voltage of battery: 8 V or more.
- Voltage of battery: 16.5 V or less.
- Engine speed: 650 r/min or more.
- Time since above engine condition: 1.5 seconds or more.
- FET (Field Effect Transistor) of high side 3: Switched off.
JUDGMENT CRITERIA

- FET output: 100 mV or less. (5 seconds)

OBD-II DRIVE CYCLE PATTERN

The FET channel output remains 100 mV or more for 5 seconds.

PROBABLE CAUSES

- Malfunction of TC-SST-ECU
- Malfunction of power supply circuit (open circuit)

DIAGNOSTIC PROCEDURE

Required Special Tools:

- MB991958 Scan Tool (M.U.T.-III Sub Assembly)
- MB991824: Vehicle Communication Interface (V.C.I.)
- MB991827 M.U.T.-III USB Cable
- MB991910 M.U.T.-III Main Harness A

STEP 1. Scan tool CAN bus diagnostics

Using scan tool MB991958, diagnose the CAN bus lines.

Q. Is the check result normal?

YES Go to Step 2.
NO Repair the CAN bus lines. CAN Bus Diagnostics Chart.) After repairing the CAN bus line, go to Step 2.
STEP 2. Check the TC-SST-ECU power supply circuit

Refer to Inspection Procedure 4.

Q. Is the check result normal?

YES Go to Step 3.
NO Repair the TC-SST-ECU power supply circuit. (Refer to Inspection Procedure 4.) After repairing the power supply circuit, go to Step 3.
STEP 3. Check whether the DTC is reset.

After 10 or more seconds have passed with the engine idle status, check that the DTC is reset.

Q. Is DTC No. P186F set?

YES Replace the transaxle assembly. (Refer to Removal and Replacement.)
NO Intermittent malfunction. How to Cope With Intermittent Malfunctions.)
