P0117

DTC P0117: Engine Coolant Temperature Circuit Low Input

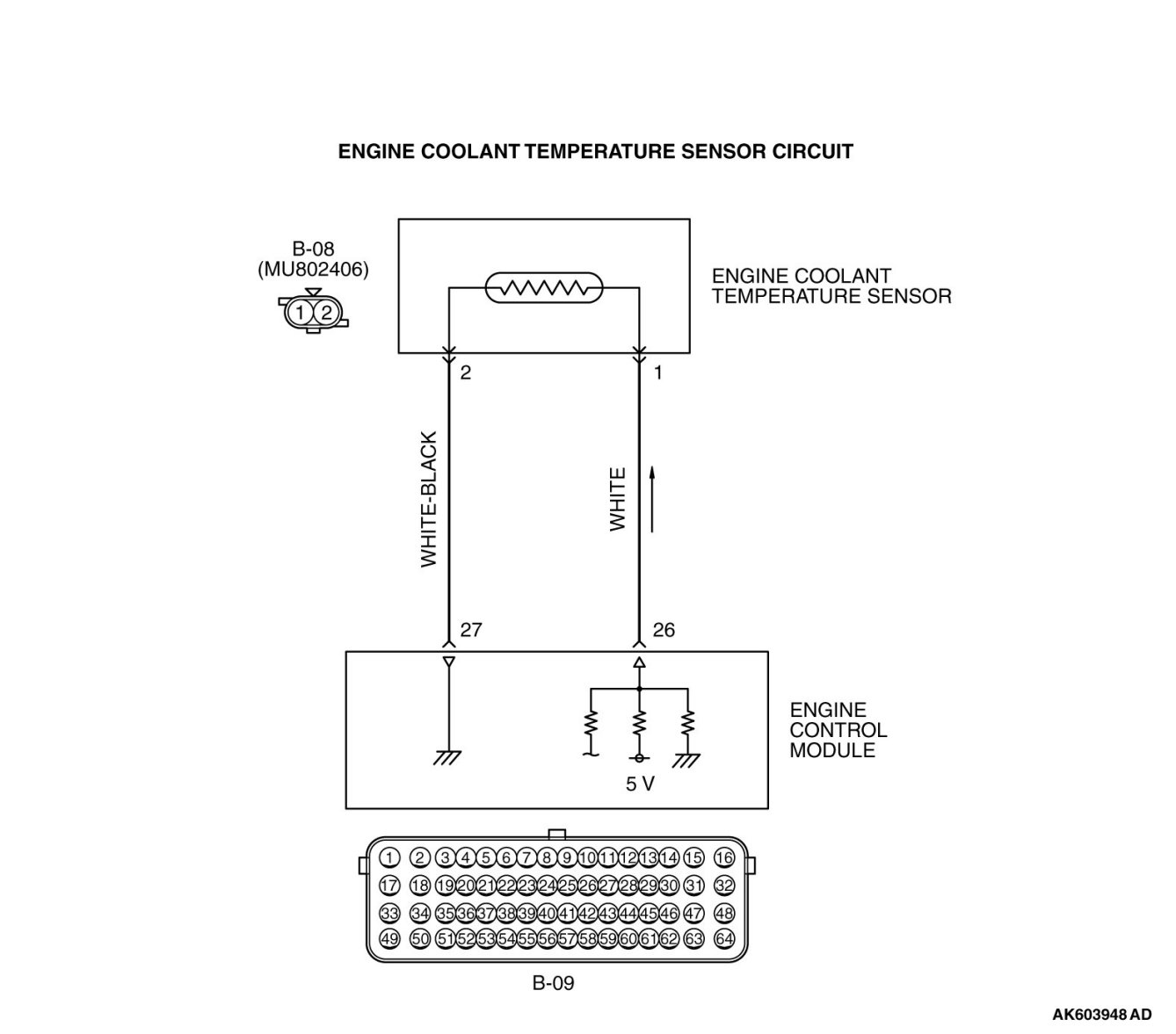

CIRCUIT OPERATION

- 5-volt voltage is applied to the engine coolant temperature sensor output terminal (terminal No. 1) from the ECM (terminal No. 26) via the resistor in the ECM. The ground terminal (terminal No. 2) is grounded with ECM (terminal No. 27).
- The engine coolant temperature sensor is a negative temperature coefficient type of resistor. It has the characteristic that when the engine coolant temperature rises the resistance decreases.
- The engine coolant temperature sensor output voltage increases when the resistance increases and decreases when the resistance decreases.

TECHNICAL DESCRIPTION

- The engine coolant temperature sensor converts the engine coolant temperature to a voltage and outputs it.
- The ECM checks whether this voltage is within a specified range.

DESCRIPTIONS OF MONITOR METHODS

Engine coolant temperature sensor output voltage is out of specified range.

MONITOR EXECUTION

Continuous

MONITOR EXECUTION CONDITIONS (Other monitor and Sensor)

Other Monitor (There is no temporary DTC stored in memory for the item monitored below)

- Not applicable
Sensor (The sensor below is determined to be normal)

- Not applicable

DTC SET CONDITIONS

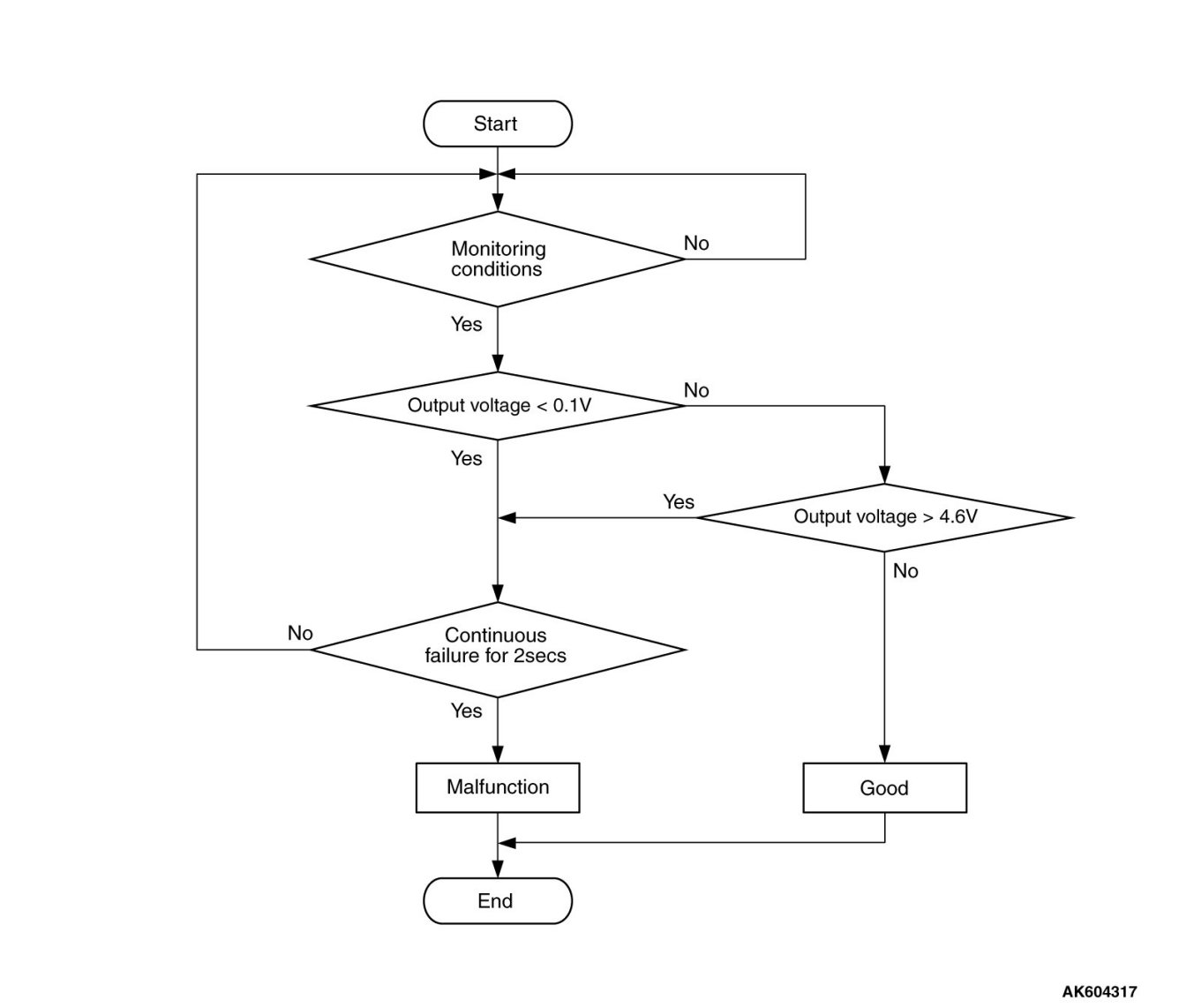

Logic Flow Chart






Check Condition

- 2 seconds or more have passed since the engine starting sequence was completed.
Judgement Criterion

- Engine coolant temperature sensor output voltage has continued to be 0.1 volt or lower for 2 seconds.

FAIL-SAFE AND BACKUP FUNCTION

- Control as if the engine coolant temperature is 80° C.

OBD-II DRIVE CYCLE PATTERN

Refer to Diagnostic Function - OBD-II Drive Cycle - Pattern 23 Monitors, Trips, Drive Cycles and Readiness Codes .

TROUBLESHOOTING HINTS (The most likely causes for this code to be set are:)

- Engine coolant temperature sensor failed.
- Shorted engine coolant temperature sensor circuit, or connector damage.
- ECM failed.


DIAGNOSIS

Required Special Tools:

- MB991958: Scan Tool (M.U.T.-III Sub Assembly)
- MB991824: V.C.I.
- MB991827: USB Cable
- MB991910: Main Harness A

STEP 1. Using scan tool MB991958, check data list item 6: Engine Coolant Temperature Sensor.





CAUTION:
To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK"
(OFF) position before connecting or disconnecting scan tool MB991958.

(1)Connect scan tool MB991958 to the data link connector.
(2)Turn the ignition switch to the "ON" position.
(3)Set scan tool MB991958 to the data reading mode for item 6, Engine Coolant Temperature Sensor.

- The engine coolant temperature and temperature shown with the scan tool should approximately match.
(4)Turn the ignition switch to the "LOCK" (OFF) position.

Q. Is the sensor operating properly?

YES It can be assumed that this malfunction is intermittent. How to Cope With Intermittent Malfunctions.

NO Go to Step 2.

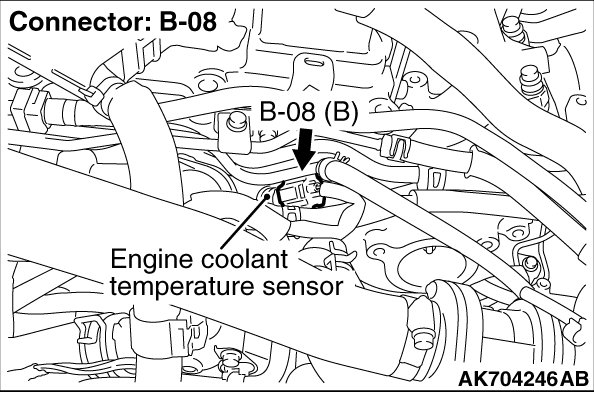

STEP 2. Check harness connector B-08 at the engine coolant temperature sensor for damage.

Q. Is the harness connector in good condition?

YES Go to Step 3.
NO Repair or replace it. Harness Connector Inspection.
Then go to Step 6.
STEP 3. Check for short circuit to ground between engine coolant temperature sensor connector B-08 (terminal No. 1) and ECM connector B-09 (terminal No. 26).

Q. Is the harness wire in good condition?

YES Go to Step 4.
NO Repair it. Then go to Step 6.
STEP 4. Check harness connector B-09 at ECM for damage.

Q. Is the harness connector in good condition?

YES Go to Step 5.
NO Repair or replace it. Harness Connector Inspection.
Then go to Step 6.
STEP 5. Check the engine coolant temperature sensor.

Refer to Engine Coolant Temperature Sensor Check Testing and Inspection.

Q. Is the engine coolant temperature sensor normal?

YES Replace the ECM (Refer to, Removal and Installation Removal and Replacement).
Then go to Step 6.
NO Replace the engine coolant temperature sensor. Then go to Step 6.
STEP 6. Test the OBD-II drive cycle.

(1)Carry out a test drive with the drive cycle pattern. Refer to Diagnostic Function - OBD-II Drive Cycle - Pattern 23 Monitors, Trips, Drive Cycles and Readiness Codes.

(2)Check the diagnostic trouble code (DTC).

Q. Is DTC P0117 set?

YES Retry the troubleshooting.
NO The inspection is complete.
