P0106




DTC P0106: Manifold Absolute Pressure Circuit Range/Performance Problem

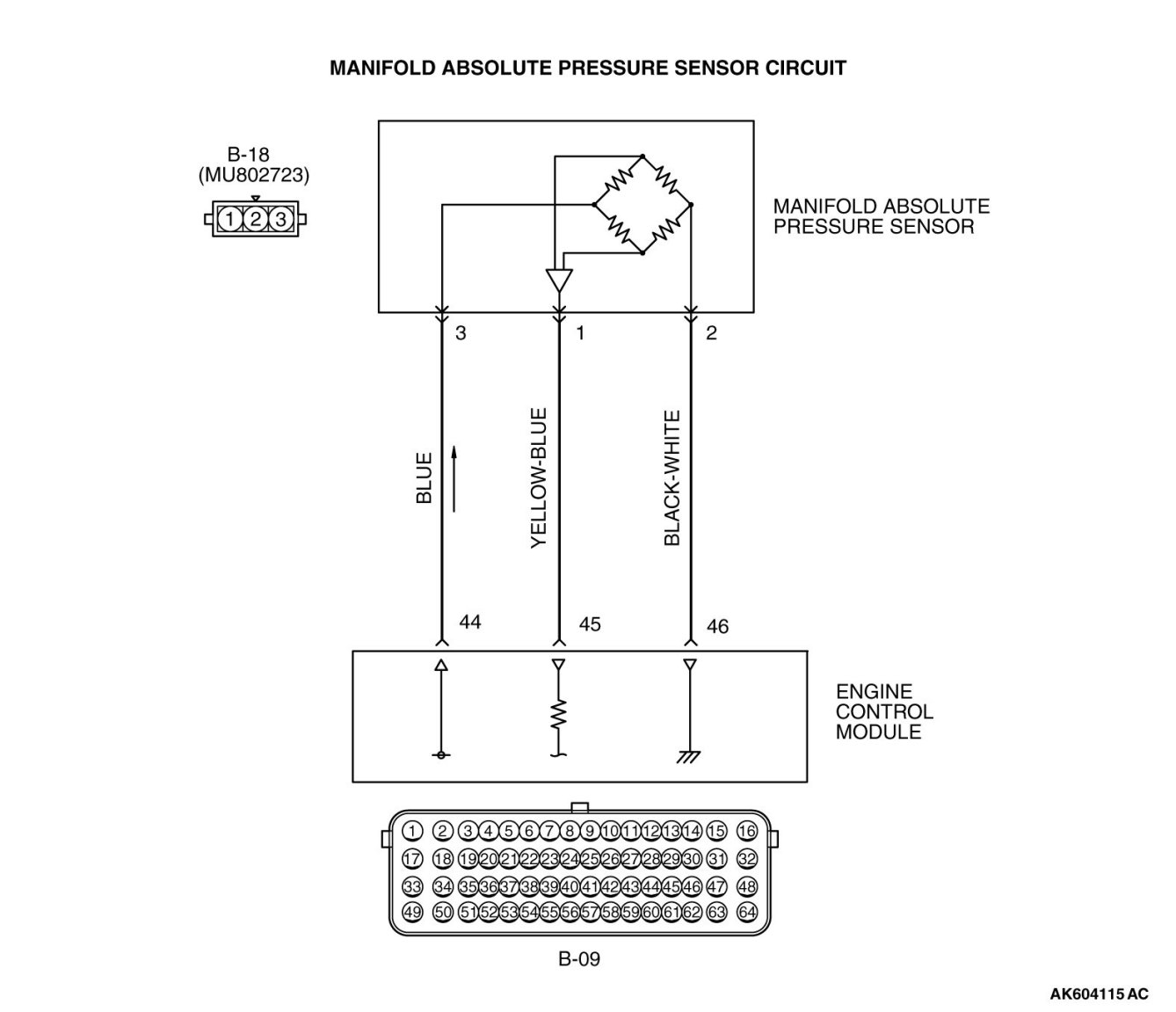

CIRCUIT OPERATION

- A 5-volt voltage is supplied to the manifold absolute pressure sensor power terminal (terminal No. 3) from the ECM (terminal No. 44). The ground terminal (terminal No. 2) is grounded with ECM (terminal No. 46).
- A voltage that is proportional to the intake manifold pressure is sent to the ECM (terminal No. 45) from the manifold absolute pressure sensor output terminal (terminal No. 1).

TECHNICAL DESCRIPTION

- The manifold absolute pressure sensor outputs a voltage which corresponds to the intake manifold pressure.
- The ECM checks whether this voltage is within a specified range.

DESCRIPTIONS OF MONITOR METHODS

Compare load value with manifold absolute pressure sensor output voltage.

MONITOR EXECUTION

Continuous

MONITOR EXECUTION CONDITIONS (Other monitor and Sensor)

Other Monitor (There is no temporary DTC stored in memory for the item monitored below)

- Not applicable
Sensor (The sensor below is determined to be normal)

- Engine coolant temperature sensor
- Throttle position sensor
- Mass airflow sensor
- Intake air temperature sensor
- Barometric pressure sensor

DTC SET CONDITIONS[ Range/Performance problem - high input]

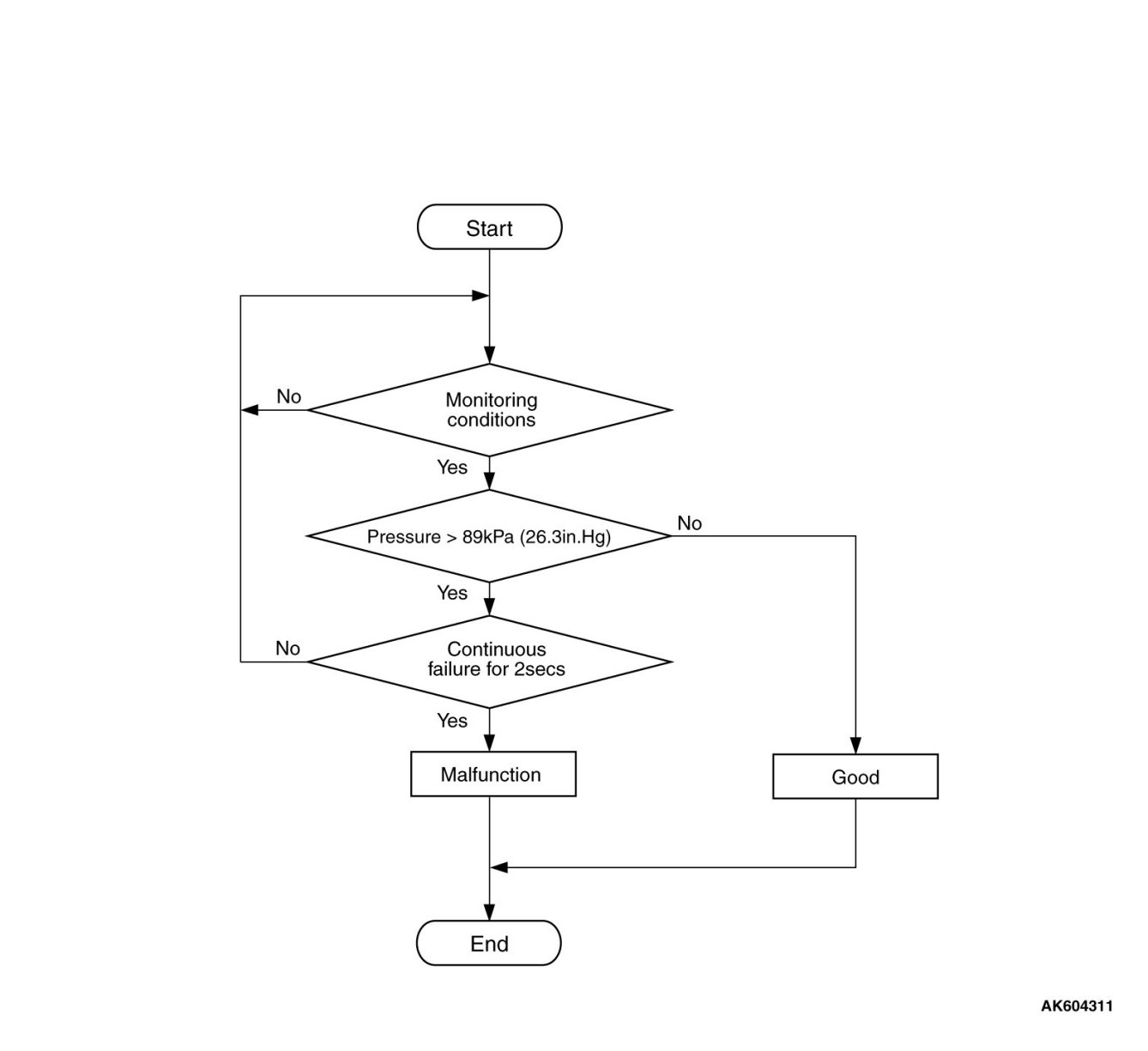

Logic Flow Chart





Check Conditions

- 8 minutes or more have passed since the engine starting sequence was completed, when the engine coolant temperature at engine start is 0°C (32°F) or lower.
- Engine speed is between 500 r/min and 1,500 r/min.
- Throttle position sensor output voltage is 0.8 volt or lower.
Judgement Criterion

- Manifold absolute pressure sensor output voltage has continued to be 1.3 volts [corresponding to a manifold absolute pressure of 89 kPa (26.3 in.Hg)] or higher for 2 seconds.

DTC SET CONDITIONS[ Range/Performance problem - low input]

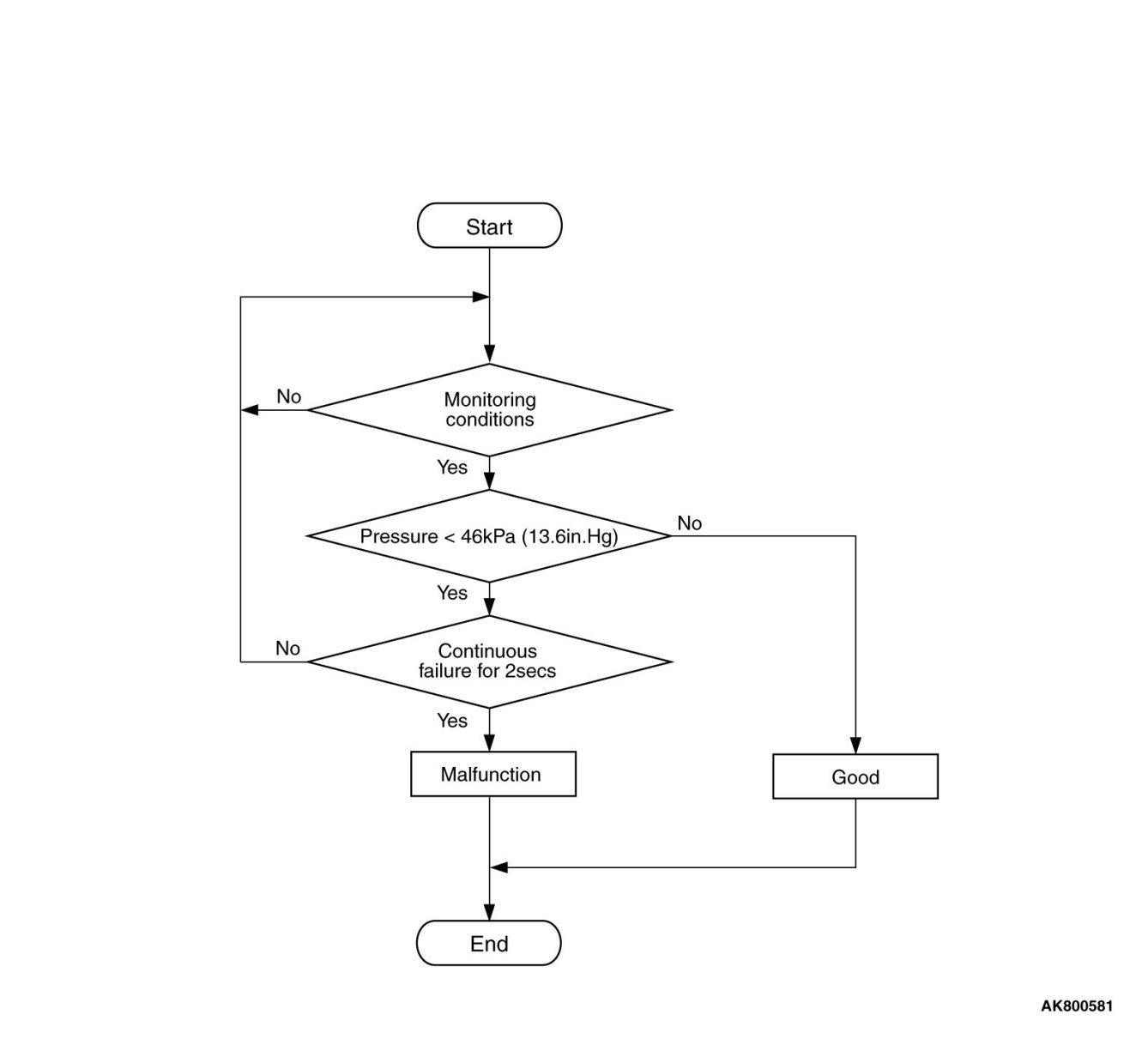

Logic Flow Chart





Check Conditions

- 8 minutes or more have passed since the engine starting sequence was completed, when the engine coolant temperature at engine start is 0°C (32°F) or lower.
- Engine speed is 1,500 r/min or higher.
- Throttle position sensor output voltage is 3.5 volts or higher.
Judgement Criterion

- Manifold absolute pressure sensor output voltage has continued to be 0.7 volt [corresponding to a manifold absolute pressure of 46 kPa (13.6 in.Hg)] or lower for 2 seconds.

FAIL-SAFE AND BACKUP FUNCTION

- None

OBD-II DRIVE CYCLE PATTERN

Refer to Diagnostic Function - OBD-II Drive Cycle - Pattern 6 Monitors, Trips, Drive Cycles and Readiness Codes .

TROUBLESHOOTING HINTS (The most likely causes for this code to be set are:)

- Manifold absolute pressure sensor failed.
- Harness damage.
- Connector damage.
- ECM failed.

DIAGNOSIS

Required Special Tools:

- MB991958: Scan Tool (M.U.T.-III Sub Assembly)
- MB991824: V.C.I.
- MB991827: USB Cable
- MB991910: Main Harness A
- MB992110: Power Plant ECU Check Harness

STEP 1. Using scan tool MB991958, check data list item 8: Manifold Absolute Pressure Sensor.





CAUTION:
To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK"
(OFF) position before connecting or disconnecting scan tool MB991958.

(1)Connect scan tool MB991958 to the data link connector.
(2)Turn the ignition switch to the "ON" position.
(3)Set scan tool MB991958 to the data reading mode for item 8, Manifold Absolute Pressure Sensor.

- When altitude is 0 m (0 foot), 101 kPa (29.8 in.Hg).
- When altitude is 600 m (1,969 feet), 95 kPa (28.1 in.Hg).
- When altitude is 1,200 m (3,937 feet), 88 kPa (26.0 in.Hg).
- When altitude is 1,800 m (5,906 feet), 81 kPa (23.9 in.Hg).
(4)Start the engine.

- When the engine is idling, 31 - 45 kPa (9.1 - 13.3 in.Hg).
- When the engine is suddenly revved, manifold absolute pressure varies.
(5)Turn the ignition switch to the "LOCK" (OFF) position.

Q. Is the sensor operating properly?

YES It can be assumed that this malfunction is intermittent. How to Cope With Intermittent Malfunctions.

NO Go to Step 2.

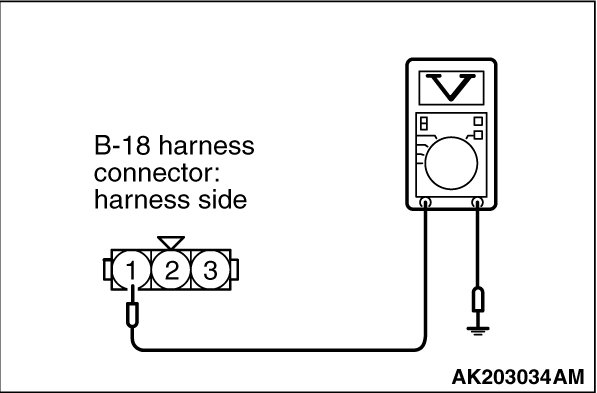

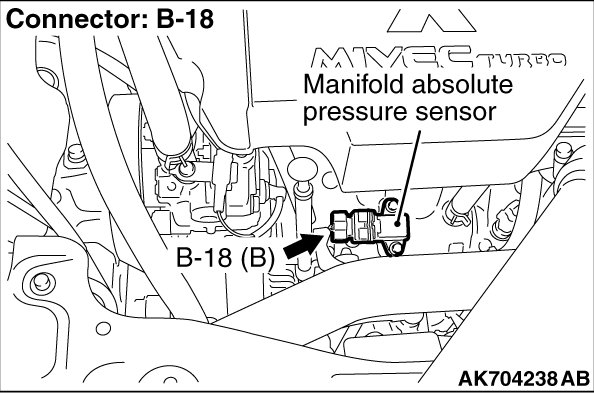

STEP 2. Measure the sensor output voltage at manifold absolute pressure sensor connector B-18 by backprobing.

(1)Do not disconnect the connector B-18.

(2)Turn the ignition switch to the "ON" position.





(3)Measure the voltage between terminal No. 1 and ground by backprobing.

- When altitude is 0 m (0 foot), voltage should be between 1.2 and 1.8 volts.
- When altitude is 600 m (1,969 feet), voltage should be between 1.1 and 1.7 volts.
- When altitude is 1,200 m (3,937 feet), voltage should be between 1.0 and 1.6 volts.
- When altitude is 1,800 m (5,906 feet), voltage should be between 0.9 and 1.5 volts.
(4)Turn the ignition switch to the "LOCK" (OFF) position.

Q. Is the measured voltage normal?

YES Go to Step 10.

NO Go to Step 3.

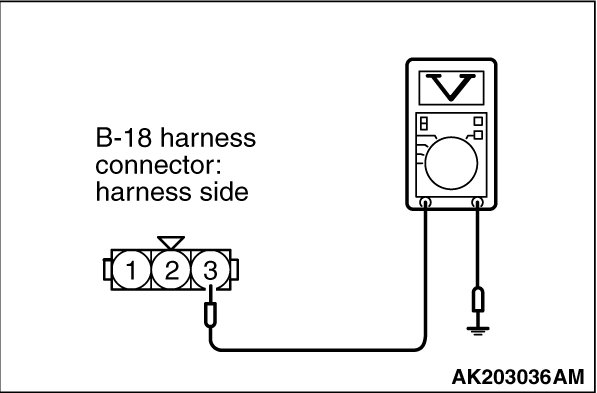

STEP 3. Measure the sensor supply voltage at manifold absolute pressure sensor connector B-18 by backprobing.

(1)Do not disconnect the connector B-18.

(2)Turn the ignition switch to the "ON" position.





(3)Measure the voltage between terminal No. 3 and ground by backprobing.

- Voltage should be between 4.9 and 5.1 volts.
(4)Turn the ignition switch to the "LOCK" (OFF) position.

Q. Is the measured voltage between 4.9 and 5.1 volts?

YES Go to Step 6.

NO Go to Step 4.

STEP 4. Check harness connector B-18 at the manifold absolute pressure sensor and harness connector B-09 at ECM for damage.

Q. Is the harness connector in good condition?

YES Go to step 5.
NO Repair or replace it. Harness Connector Inspection.
Then go to Step 13.
STEP 5. Check for harness damage between manifold absolute pressure sensor connector B-18 (terminal No. 3) and ECM connector B-09 (terminal No. 44).

Q. Is the harness wire in good condition?

YES Go to Step 12.
NO Repair it. Then go to Step 13.

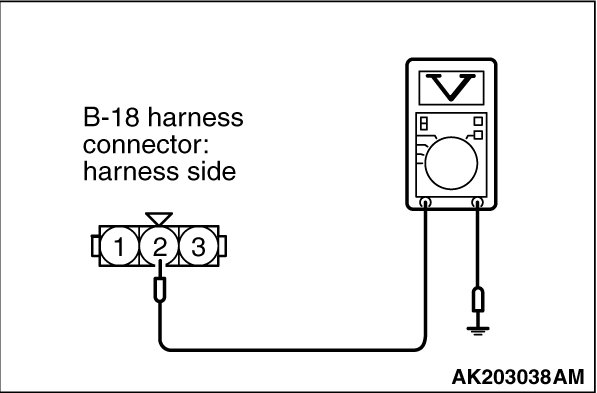

STEP 6. Measure the ground voltage at manifold absolute pressure sensor connector B-18 by backprobing.

(1)Do not disconnect the connector B-18.

(2)Turn the ignition switch to the "ON" position.





(3)Measure the voltage between terminal No. 2 and ground by backprobing.

- Voltage should be 0.5 volt or less.
(4)Turn the ignition switch to the "LOCK" (OFF) position.

Q. Is the measured voltage 0.5 volt or less?

YES Go to Step 9.

NO Go to Step 7.

STEP 7. Check harness connector B-18 at the manifold absolute pressure sensor and harness connector B-09 at ECM for damage.

Q. Is the harness connector in good condition?

YES Go to Step 8.
NO Repair or replace it. Harness Connector Inspection.
Then go to Step 13.
STEP 8. Check for harness damage between manifold absolute pressure sensor connector B-18 (terminal No. 2) and ECM connector B-09 (terminal No. 46).

Q. Is the harness wire in good condition?

YES Go to Step 12.
NO Repair it. Then go to Step 13.
STEP 9. Check harness connector B-18 at manifold absolute pressure sensor for damage.

Q. Is the harness connector in good condition?

YES Replace the manifold absolute pressure sensor. Then go to Step 13.
NO Repair or replace it. Harness Connector Inspection.
Then go to Step 13.
STEP 10. Check harness connector B-18 at the manifold absolute pressure sensor and harness connector B-09 at ECM for damage.

Q. Is the harness connector in good condition?

YES Go to Step 11.
NO Repair or replace it. Harness Connector Inspection.
Then go to Step 13.

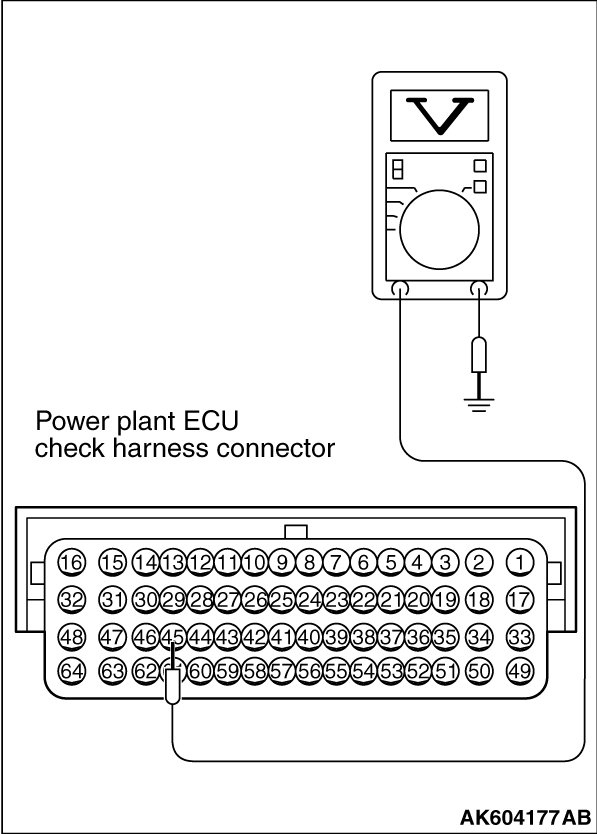

STEP 11. Measure the sensor output voltage at ECM connector B-09 by using power plant ECU check harness special tool MB992110.





(1)Disconnect all ECM connectors. Connect the power plant ECU check harness special tool MB992110 between the separated connectors.
(2)Turn the ignition switch to the "ON" position.





(3)Measure the voltage between terminal No. 45 and ground.

- When altitude is 0 m (0 foot), voltage should be between 1.2 and 1.8 volts.
- When altitude is 600 m (1,969 feet), voltage should be between 1.1 and 1.7 volts.
- When altitude is 1,200 m (3,937 feet), voltage should be between 1.0 and 1.6 volts.
- When altitude is 1,800 m (5,906 feet), voltage should be between 0.9 and 1.5 volts.
(4)Turn the ignition switch to the "LOCK" (OFF) position.

Q. Is the measured voltage normal?

YES Go to Step 12.

NO Repair harness wire between manifold absolute pressure sensor connector B-18 (terminal No. 1) and ECM connector B-09 (terminal No. 45) because of harness damage. Then go to Step 13.

STEP 12. Using scan tool MB991958, check data list item 8: Manifold Absolute Pressure Sensor.

(1)Turn the ignition switch to the "ON" position.

(2)Set scan tool MB991958 to the data reading mode for item 8, Manifold Absolute Pressure Sensor.

- When altitude is 0 m (0 foot), 101 kPa (29.8 in.Hg).
- When altitude is 600 m (1,969 feet), 95 kPa (28.1 in.Hg).
- When altitude is 1,200 m (3,937 feet), 88 kPa (26.0 in.Hg).
- When altitude is 1,800 m (5,906 feet), 81 kPa (23.9 in.Hg).

(3)Start the engine.

- When the engine is idling, 31 - 45 kPa (9.1 - 13.3 in.Hg).
- When the engine is suddenly revved, manifold absolute pressure varies.

(4)Turn the ignition switch to the "LOCK" (OFF) position.

Q. Is the sensor operating properly?

YES It can be assumed that this malfunction is intermittent. How to Cope With Intermittent Malfunctions.
NO Replace the ECM (Refer to, Removal and Installation Removal and Replacement).
Then go to Step 13.
STEP 13. Test the OBD-II drive cycle.

(1)Carry out a test drive with the drive cycle pattern. Refer to Diagnostic Function - OBD-II Drive Cycle - Pattern 6 Monitors, Trips, Drive Cycles and Readiness Codes.

(2)Check the diagnostic trouble code (DTC).

Q. Is DTC P0106 set?

YES Retry the troubleshooting.
NO The inspection is complete.
