P0096

DTC P0096: Intake Air Temperature Circuit Range/Performance Problem (sensor 2)














CIRCUIT OPERATION

- Approximately 5 volts are applied to the intake air temperature sensor 2 output terminal (terminal No. 1) from the ECM (terminal No. 98) via the resistor in the ECM. The ground terminal (terminal No. 2) is grounded with ECM (terminal No. 97).
- The intake air temperature sensor 2 is a negative temperature coefficient type of resistor. When the intake air temperature rises, the resistance decreases.
- The intake air temperature sensor 2 output voltage increases when the resistance increases and decreases when the resistance decreases.

TECHNICAL DESCRIPTION

- The intake air temperature sensor 2 converts the intake air temperature to a voltage.
- The ECM checks whether this voltage is within a specified range.

DESCRIPTIONS OF MONITOR METHODS

Intake air temperature sensor 2 output voltage does not change when specified go/stop operations are repeated.

MONITOR EXECUTION

Continuous

MONITOR EXECUTION CONDITIONS (Other monitor and Sensor)

Other Monitor (There is no temporary DTC stored in memory for the item monitored below)

- Not applicable
Sensor (The sensor below is determined to be normal)

- Engine coolant temperature sensor

DTC SET CONDITIONS

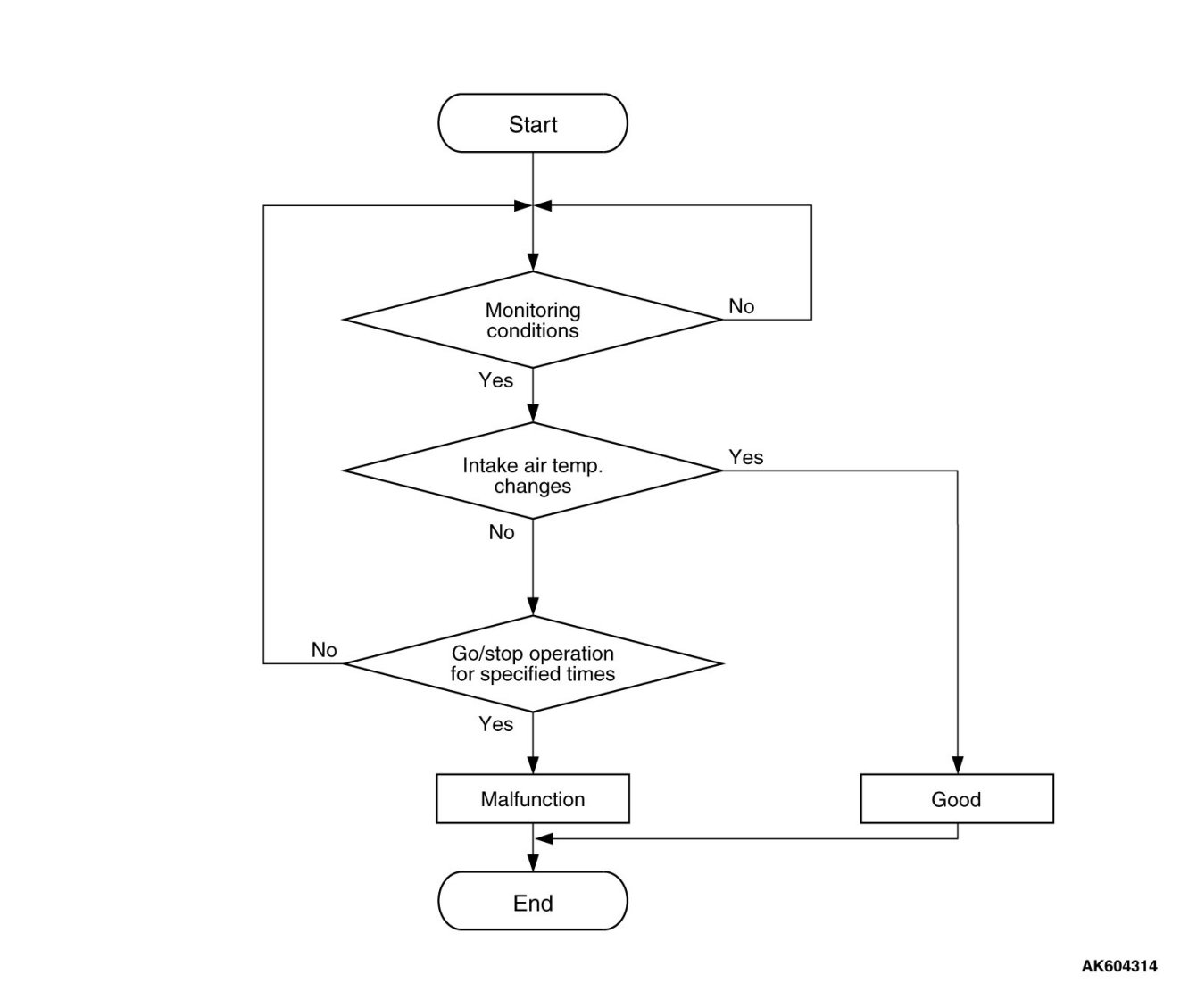

Logic Flow Chart






Check Conditions

- Engine coolant temperature is higher than 76°C (169°F).
- Repeat 2 or more times: drive*1, stop*2.
Drive*1: vehicle speed higher than 50 km/h (31 mph) lasting a total of 60 seconds or more.
Stop*2: vehicle speed lower than 1.5 km/h (1.0 mph) lasting 30 seconds or more.
Judgement Criterion

- Changes in the intake air temperature is lower than 1°C (1.8°F).

FAIL-SAFE AND BACKUP FUNCTION

- Control as if the intake air temperature in the intake manifold is 25° C.

OBD-II DRIVE CYCLE PATTERN

Refer to Diagnostic Function - OBD-II Drive Cycle - Pattern 7 Monitors, Trips, Drive Cycles and Readiness Codes .

TROUBLESHOOTING HINTS (The most likely causes for this code to be set are:)

- Intake air temperature sensor 2 failed.
- Harness damage or connector damage.
- ECM failed.


DIAGNOSIS

STEP 1. Using scan tool MB991958, check data list item DE:
Intake Air Temperature Sensor 2.





CAUTION:
To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK"
(OFF) position before connecting or disconnecting scan tool MB991958.

(1)Connect scan tool MB991958 to the data link connector.
(2)Remove the intake air temperature sensor 2 from the intake manifold.
(3)Turn the ignition switch to the "ON" position.
(4)Set scan tool MB991958 to the data reading mode for item DE, Intake Air Temperature Sensor 2.





(5)Heating the sensor using a hair drier.

- The indicated temperature increases.
NOTE:
Do not allow it to increase over 80°C (176°F).

(6)Turn the ignition switch to the "LOCK" (OFF) position.
(7)Attach the intake air temperature sensor 2.

Q. Is the sensor operating properly?

YES It can be assumed that this malfunction is intermittent. How to Cope With Intermittent Malfunctions.

NO Go to Step 2.

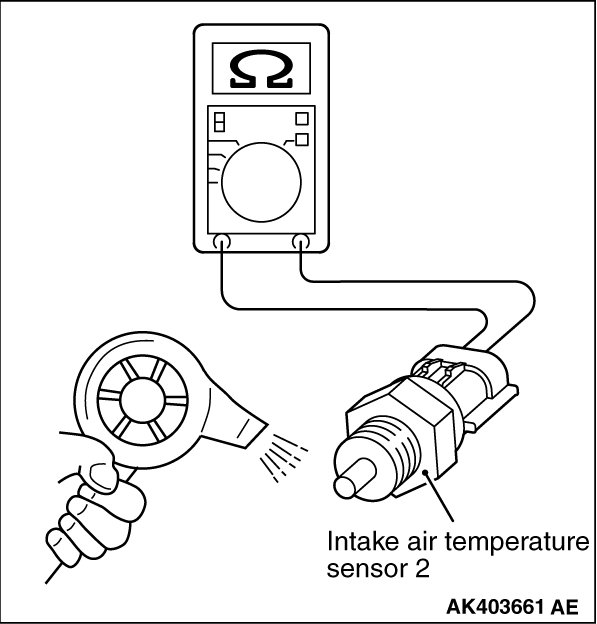

STEP 2. Check the intake air temperature sensor 2.

(1)Disconnect the intake air temperature sensor 2 connector B-16.





(2)Measure the resistance between intake air temperature sensor 2 side connector terminal No. 1 and No. 2.





(3)Measure resistance while heating the sensor using a hair drier.
Standard value:

13 - 18 kohms [at -20°C (-4°F)]
5.1 - 6.9 kohms [at 0°C (32°F)]
2.0 - 3.0 kohms [at 20°C (68°F)]
0.9 - 1.5 kohms [at 40°C (104°F)]
0.40 - 0.78 kohms [at 60°C (140°F)]
0.23 - 0.42 kohms [at 80°C (176°F)]

Q. Is the measured resistance at the standard value?

YES Go to Step 3.

NO Replace the intake air temperature sensor 2. Then go to Step 9.

STEP 3. Check harness connector B-16 at the intake air temperature sensor 2 for damage.

Q. Is the harness connector in good condition?

YES Go to Step 4.
NO Repair or replace it. Harness Connector Inspection.
Then go to Step 9.
STEP 4. Check the continuity at intake air temperature sensor 2 harness side connector B-16.

(1)Disconnect the connector B-16 and measure at the harness side.





(2)Check for the continuity between terminal No. 2 and ground.

- Continuity (2 ohms or less)

Q. Does continuity exist?

YES Go to Step 7.

NO Go to Step 5.

STEP 5. Check harness connector B-10 at ECM for damage.

Q. Is the harness connector in good condition?

YES Go to Step 6.
NO Repair or replace it. Harness Connector Inspection.
Then go to Step 9.
STEP 6. Check for harness damage between intake air temperature sensor 2 connector B-16 (terminal No. 2) and ECM connector B-10 (terminal No. 97).

NOTE:
Check harness after checking intermediate connector A-13. If intermediate connector is damaged, repair or replace it. Repair to Harness Connector Inspection Harness Connector Inspection.
Then go to Step 9.

Q. Is the harness wire in good condition?

YES Replace the ECM (Refer to, Removal and Installation Removal and Replacement).
Then go to Step 9.
NO Repair it. Then go to Step 9.
STEP 7. Check harness connector B-10 at ECM for damage.

Q. Is the harness connector in good condition?

YES Go to Step 8.
NO Repair or replace it. Harness Connector Inspection.
Then go to Step 9.
STEP 8. Check for harness damage between intake air temperature sensor 2 connector B-16 (terminal No. 1) and ECM connector B-10 (terminal No. 98).

NOTE:
Check harness after checking intermediate connector A-13. If intermediate connector is damaged, repair or replace it. Repair to Harness Connector Inspection Harness Connector Inspection.
Then go to Step 9.

Q. Is the harness wire in good condition?

YES Replace the ECM (Refer to, Removal and Installation Removal and Replacement).
Then go to Step 9.
NO Repair it. Then go to Step 9.
STEP 9. Test the OBD-II drive cycle.

(1)Carry out a test drive with the drive cycle pattern. Refer to Diagnostic Function - OBD-II Drive Cycle - Pattern 7 Monitors, Trips, Drive Cycles and Readiness Codes.

(2)Check the diagnostic trouble code (DTC).

Q. Is DTC P0096 set?

YES Retry the troubleshooting.
NO The inspection is complete.
