DTC P0068: Mass Airflow Sensor Plausibility
TECHNICAL DESCRIPTION
Compare the actual measurement of volumetric efficiency by a mass airflow sensor signal with volumetric efficiency estimated from a throttle position sensor (main or sub) signal.
MONITOR EXECUTION
Continuous
MONITOR EXECUTION CONDITIONS (Other monitor and Sensor)
Other Monitor (There is no temporary DTC stored in memory for the item monitored below)
- Not applicable
Sensor (The sensor below is determined to be normal)
- Not applicable
DTC SET CONDITIONS

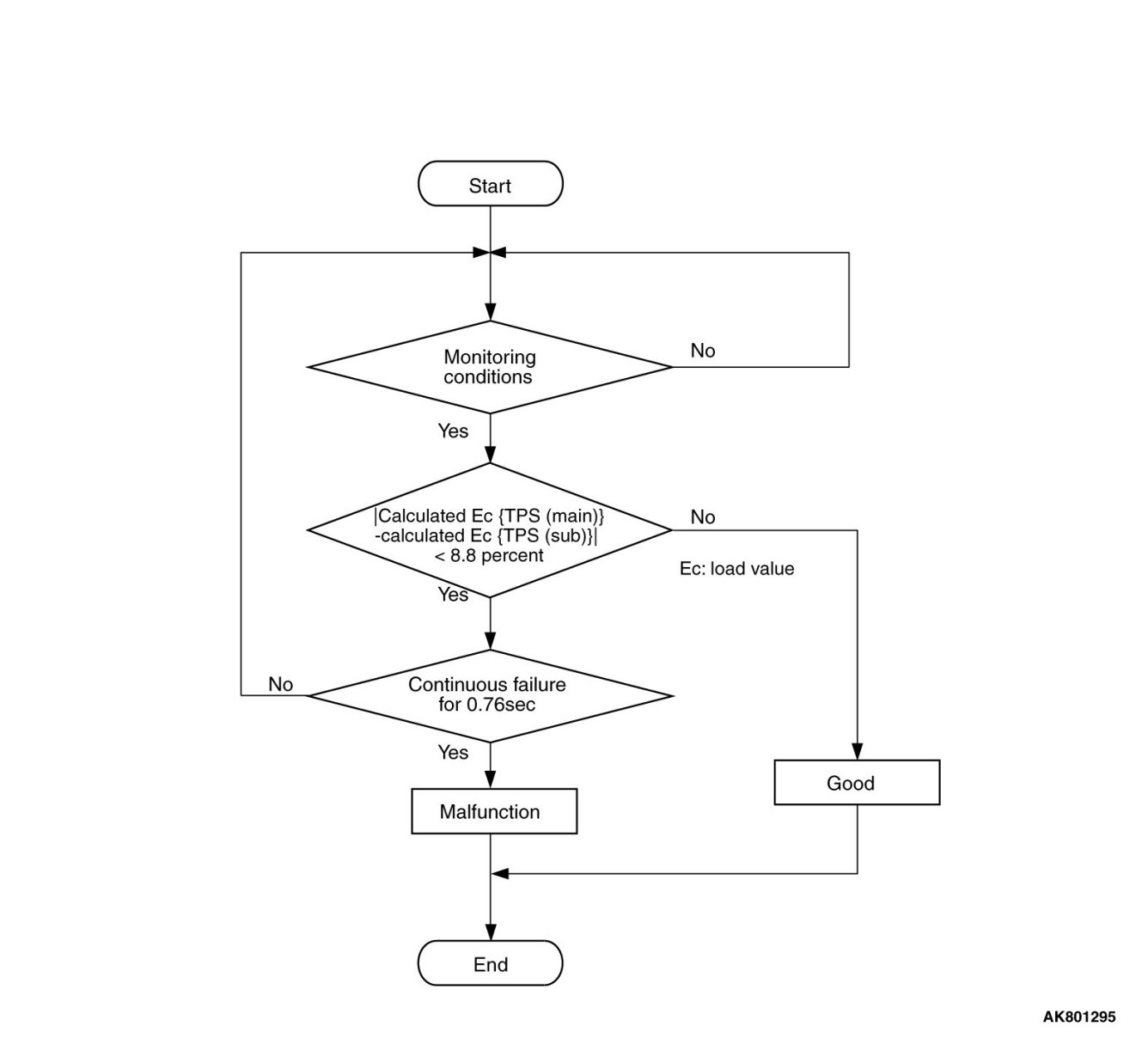

Logic Flow Chart
Check Conditions
- The plausibility error of the throttle position sensor (main) is detected.
- The plausibility error of the throttle position sensor (sub) is detected.
Judgment Criterion
- For 0.76 second, the difference between the volumetric efficiency estimated by the throttle position sensor (main) and the volumetric efficiency estimated by the throttle position sensor (sub) is 8.8 percent or less.
FAIL-SAFE AND BACKUP FUNCTION
- Fuel control is carried out using throttle opening degree and engine speed in accordance with preset map.
OBD-II DRIVE CYCLE PATTERN
Refer to Diagnostic Function - OBD-II Drive Cycle - Pattern 16 Monitors, Trips, Drive Cycles and Readiness Codes.
TROUBLESHOOTING HINTS (The most likely causes for this code to be set are:)
- Mass airflow sensor system failed.
- Intake system vacuum leak.
- There is some contamination around mass airflow sensor.
- Intake charge pressure failed.
- Intake charge pressure control system failed.
- ECM failed.
DIAGNOSIS
Required Special Tools:
- MB991958: Scan Tool (M.U.T.-III Sub Assembly)
- MB991824: V.C.I.
- MB991827: USB Cable
- MB991910: Main Harness A
STEP 1. Using scan tool MB991958, read the diagnostic trouble code (DTC).
CAUTION:
To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK"
(OFF) position before connecting or disconnecting scan tool MB991958.
(1)Connect scan tool MB991958 to the data link connector.
(2)Turn the ignition switch to the "ON" position.
(3)Read the DTC.
(4)Turn the ignition switch to the "LOCK" (OFF) position.
Q. Is the diagnostic trouble code other than P0068 set?
YES Refer to, Diagnostic Trouble Code Chart Multiport Fuel Injection (MFI).
NO Go to Step 2.
STEP 2. Check for intake system vacuum leak.
Q. Are there any abnormalities?
YES Repair it. Then go to Step 8.
NO Go to Step 3.
STEP 3. Check for foreign matter being around the mass airflow sensor.
Q. Are there any foreign matter?
YES Repair it. Then go to Step 8.
NO Go to Step 4.
STEP 4. Using scan tool MB991958, check data list item 10: Mass Airflow Sensor.
(1)Start the engine and run at idle.
(2)Set scan tool MB991958 to the data reading mode for item 10, Mass Airflow Sensor.
(3)Warm up the engine to normal operating temperature: 80°C to 95°C
(176°F to 203°F).
- The standard value during idling should be between 1,350 and 1,670 millivolts.
- When the engine is revved, the mass airflow rate should increase according to the increase in engine speed.
(4)Turn the ignition switch to the "LOCK" (OFF) position.
Q. Is the sensor operating properly?
YES Go to Step 5.
NO Refer to, DTC P0101 - Mass Airflow Circuit Range/Performance Problem P0101, DTC P0102 - Mass Airflow Circuit Low Input P0102, DTC P0103 - Mass Airflow Circuit High Input P0103.
STEP 5. Check the intake charge pressure.
Intake Charge Pressure Check.
Q. Are there any abnormalities?
YES Repair it. Then go to Step 8.
NO Go to Step 6.
STEP 6. Check the intake charge pressure control system.
Testing and Inspection.
Q. Are there any abnormalities?
YES Repair it. Then go to Step 8.
NO Go to Step 7.
STEP 7. Check the trouble symptoms.
(1)Carry out a test drive with the drive cycle pattern. Refer to Diagnostic Function - OBD-II Drive Cycle - Pattern 16 Monitors, Trips, Drive Cycles and Readiness Codes.
(2)Check the diagnostic trouble code (DTC).
Q. Is DTC P0068 set?
YES Replace the ECM (Refer to, Removal and Installation Removal and Replacement).
Then go to Step 8.
NO It can be assumed that this malfunction is intermittent. How to Cope With Intermittent Malfunctions.
STEP 8. Test the OBD-II drive cycle.
(1)Carry out a test drive with the drive cycle pattern. Refer to Diagnostic Function - OBD-II Drive Cycle - Pattern 16 Monitors, Trips, Drive Cycles and Readiness Codes.
(2)Check the diagnostic trouble code (DTC).
Q. Is DTC P0068 set?
YES Retry the troubleshooting.
NO The inspection is complete.
