Home >> Mitsubishi >> 2012 >> Lancer Evolution L4-2.0L Turbo (4B11T/C) >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Diagnostic Trouble Code Descriptions >> Controller Area Network (CAN)

Controller Area Network (CAN)

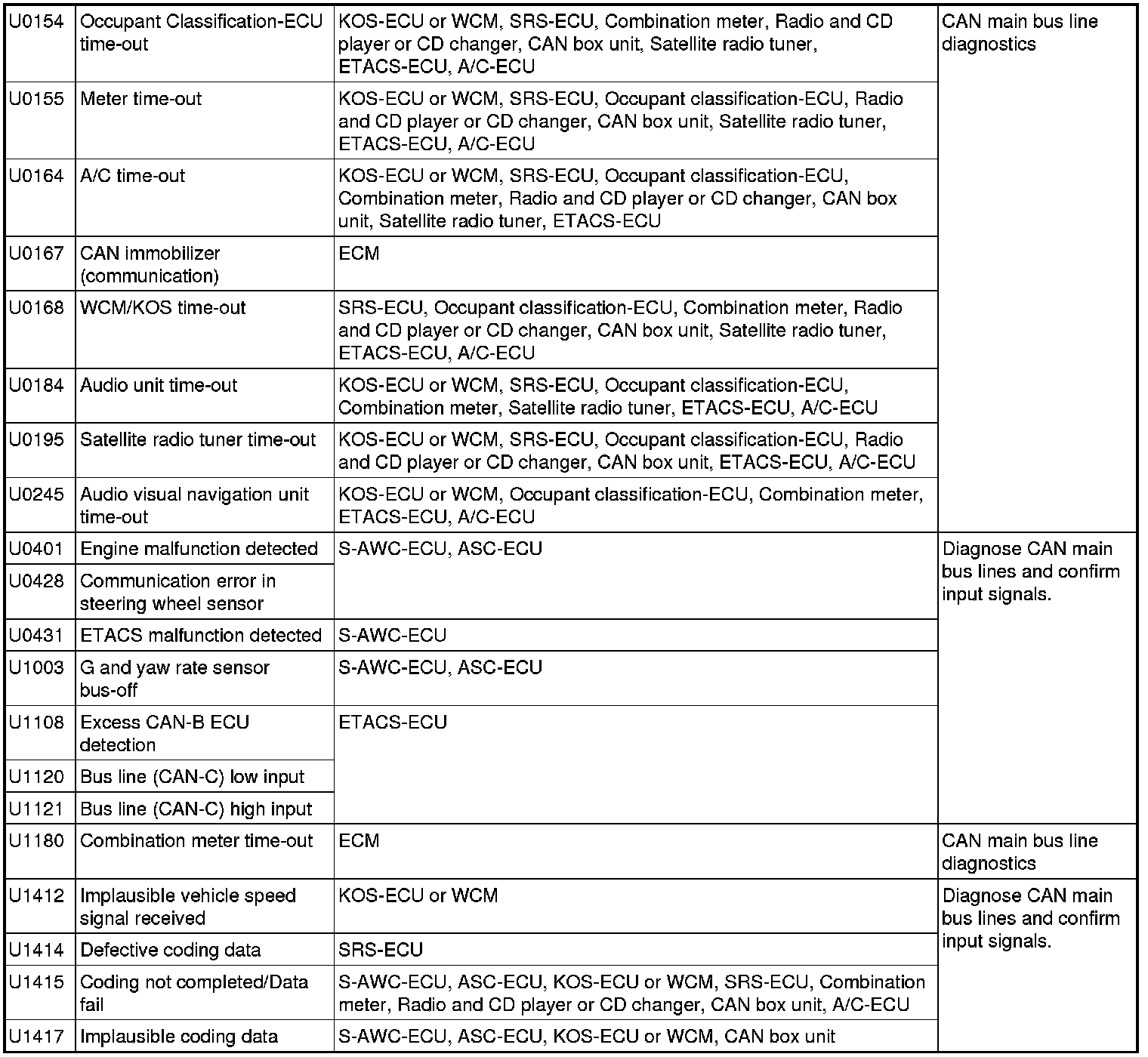

CAN COMMUNICATION-RELATED DTC (U-CODE) TABLE
