Exhaust Manifold Removal and Installation

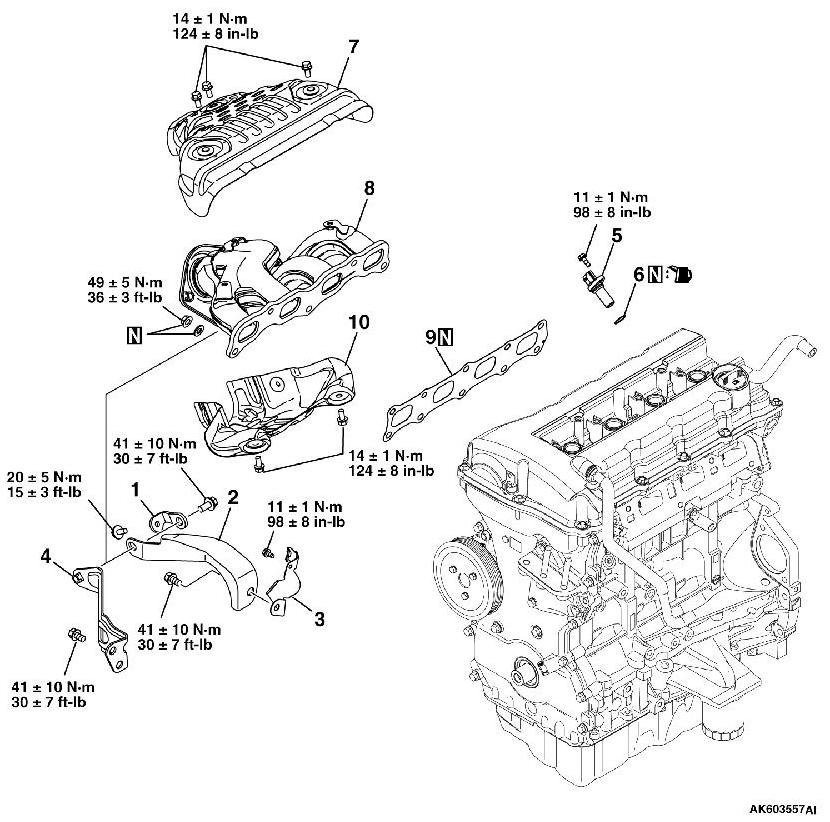

REMOVAL AND INSTALLATION

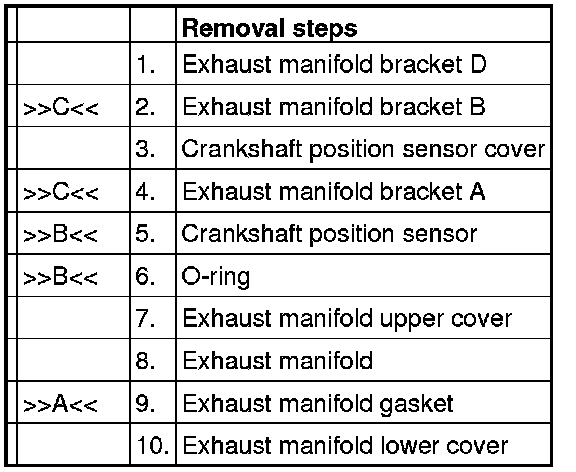

[FWD]

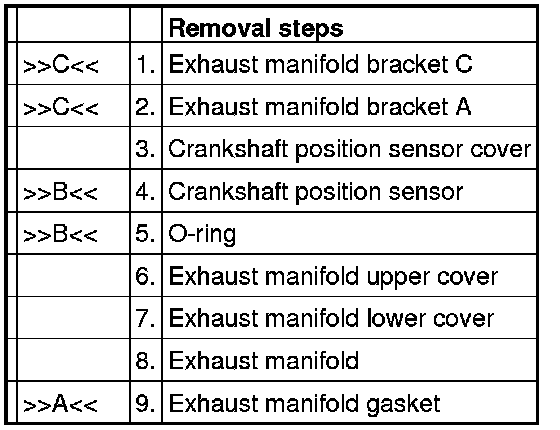

[AWD]






INSTALLATION SERVICE POINTS

]]A[[ EXHAUST MANIFOLD GASKET INSTALLATION

CAUTION:
The exhaust manifold gasket, washers and nuts must not be reused.

]]B[[ CRANKSHAFT POSITION SENSOR / O-RING INSTALLATION

CAUTION:

- Do not apply a force such as torsion or twist to the O-ring during assembly of the sensor.

- Assemble the sensor, taking care not to give a shock to it.

- Do not use a sensor that has fallen down.

Tighten the crank angle sensor to the specified tightening torque of 11 ± 1 Nm
(98 ± 8 in-lb).

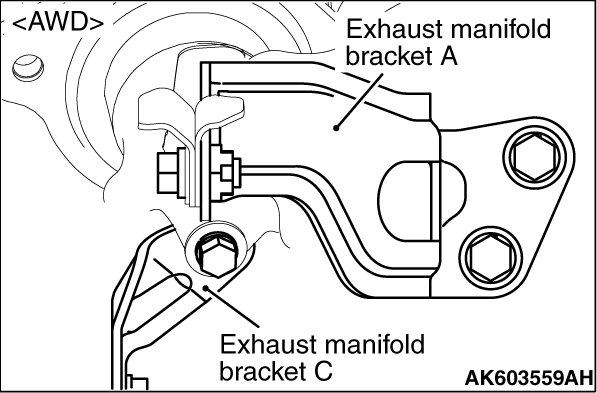

]]C[[ EXHAUST MANIFOLD BRACKET INSTALLATION









Make sure that exhaust manifold bracket A is in intimate contact with the exhaust manifold and cylinder block, and then tighten it to the specified tightening torque.
Tightening torque:
M10: 41 ± 10 Nm (30 ± 7 ft-lb)
M8: 20 ± 5 Nm (15 ± 3 ft-lb)
