Freeze Frame Data Reference Table

FREEZE FRAME DATA REFERENCE TABLE

Scan tool can be used to read the freeze frame data (the driving status when the failure occurs) at each diagnostic trouble code detection.

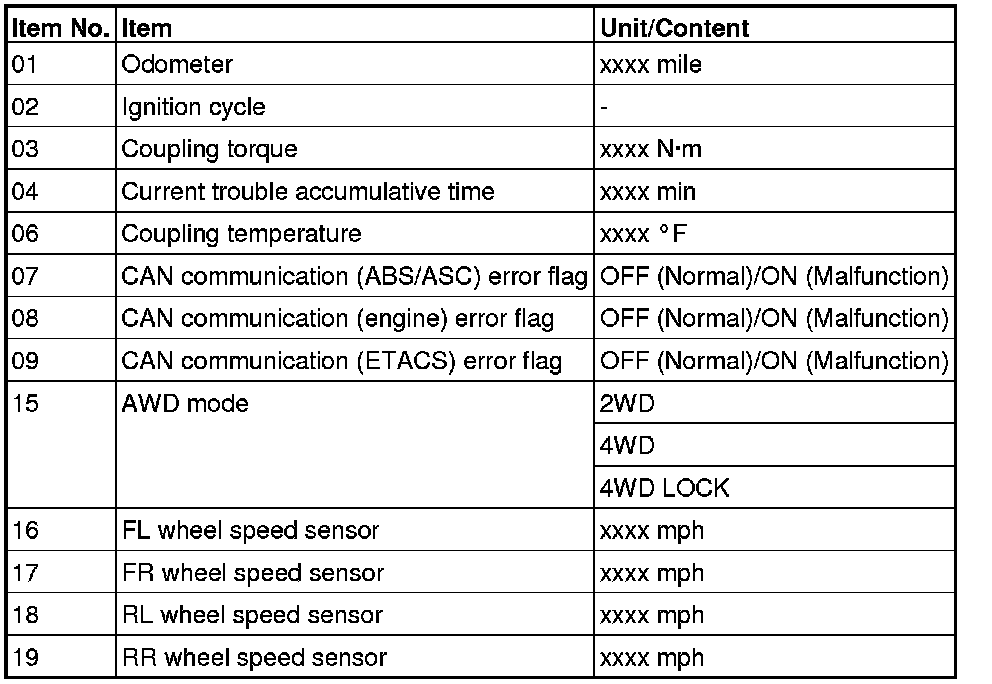

FREEZE FRAME DATA SPECIFICATIONS





NOTE:
xxxx indicates the value.
