Fluid Pump: Service and Repair

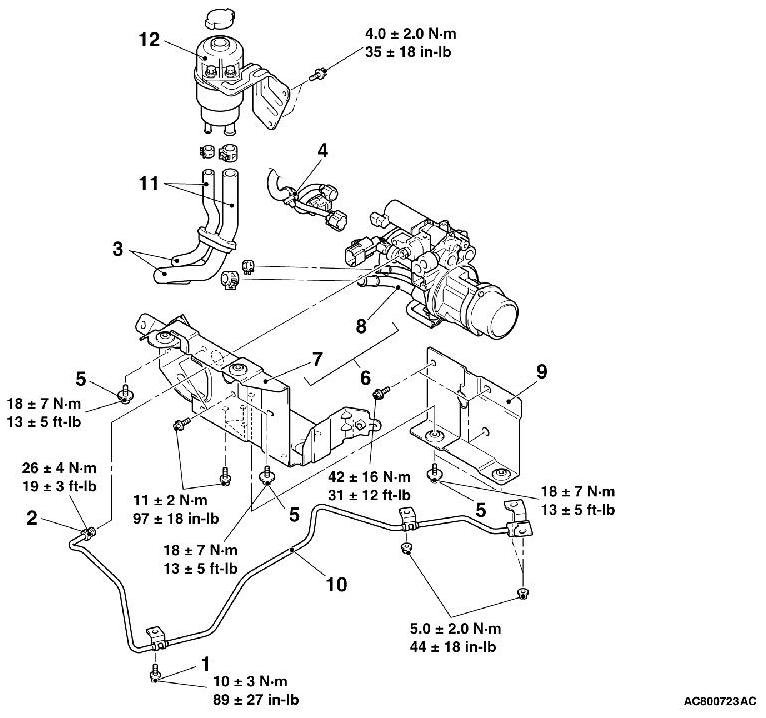

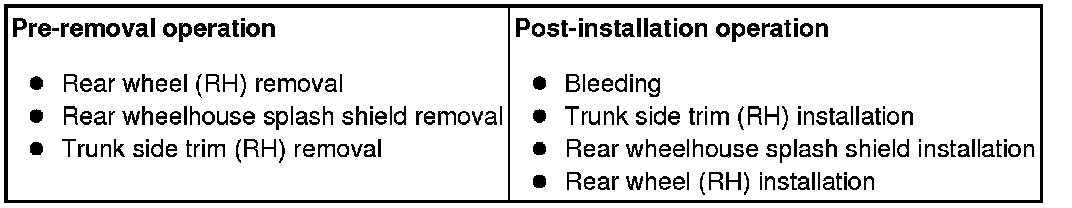

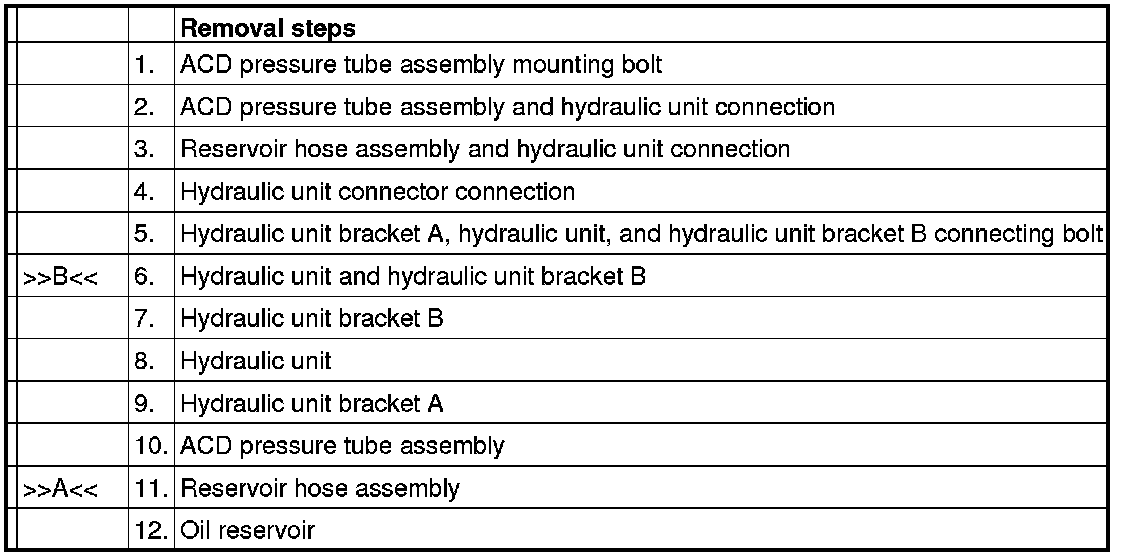

REMOVAL AND INSTALLATION

CAUTION:

- When inserting the reservoir hose assembly, do not lubricate.

- Perform with care that the foreign objects do not intrude into the hydraulic unit and hose joint.













INSTALLATION SERVICE POINTS

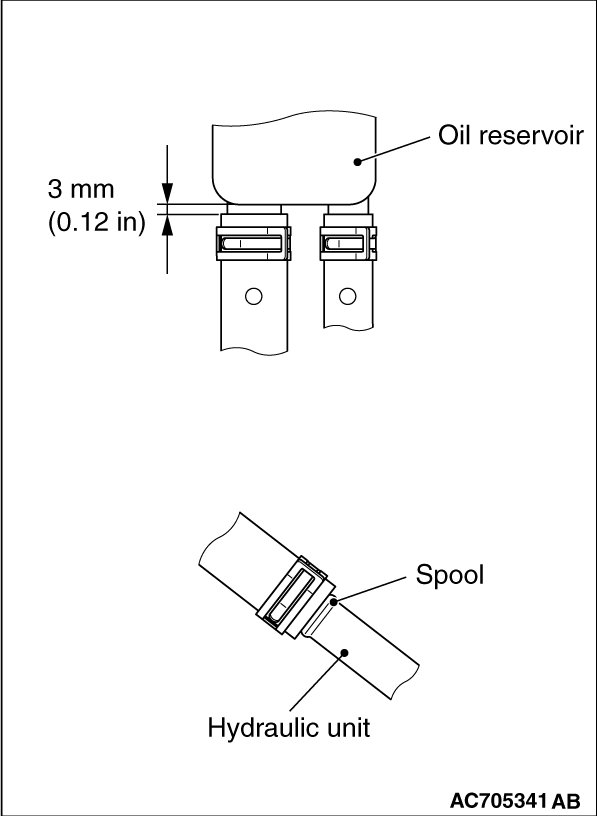

]]A[[ RESERVOIR HOSE ASSEMBLY INSTALLATION





1. On the oil reservoir side, insert the hose to the position shown in the figure.
2. On the hydraulic unit side, insert the hose to the spool shown in the figure.

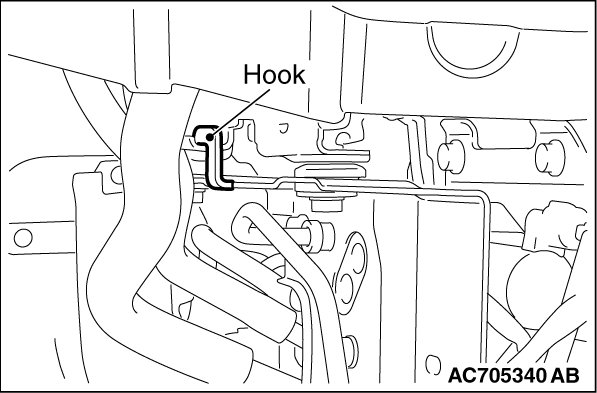

]]B[[ HYDRAULIC UNIT AND HYDRAULIC UNIT BRACKET B INSTALLATION





Insert the hook of hydraulic unit bracket B into the body panel, and tighten the mounting bolt.
