Transfer Oil Change (With Active Center Differential)

TRANSFER OIL (WITH ACTIVE CENTER DIFFERENTIAL)

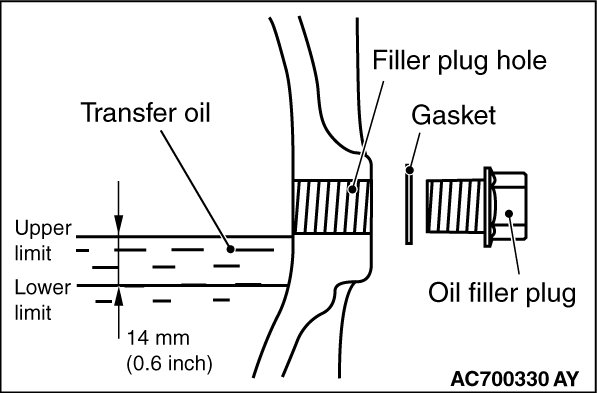

CHECK OIL LEVEL

1. Remove the engine room under cover front B assembly. Service and Repair.)





2. Remove the filler plug and gasket.





3. Check that the oil level is not 14 mm (0.6 inch) below the bottom of the oil filler plug hole.
4. Check that the oil is not excessively foul and has moderate viscosity.
5. If the oil level is not in between the upper limit and the lower limit, refill the specified oil to the bottom of the oil filler plug hole.
Brand name: Dia Queen LSD gear oil
6. Install the filler plug and new gasket, then tighten them to the specified torque.
Tightening torque: 32 ± 2 Nm (24 ± 1 ft-lb)
7. Install the engine room under cover front B assembly. Service and Repair.)

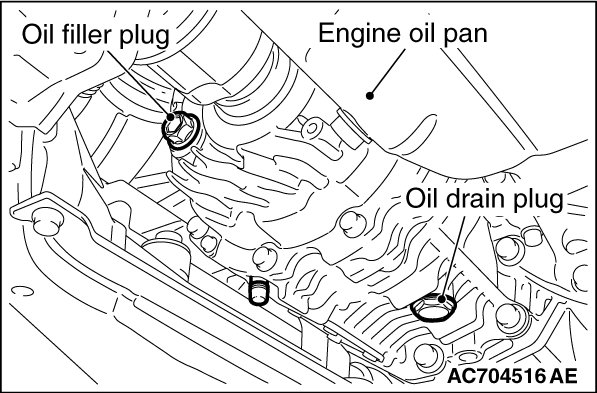

OIL CHANGE

1. Remove the engine room under cover front B assembly. Service and Repair.)









2. Remove the drain plug and gasket to drain the oil.
3. Install the drain plug and new gasket, then tighten them to the specified torque.
Tightening torque: 32 ± 2 Nm (24 ± 1 ft-lb)
4. Remove the filler plug and gasket, then fill the oil up to the lower edge of the filler plug hole.

Brand name: Dia Queen LSD gear oil
Quantity: 0.8 dm3 (0.85 quarts)
5. Install the filler plug and new gasket, then tighten them to the specified torque.
Tightening torque: 32 ± 2 Nm (24 ± 1 ft-lb)
6. Install the engine room under cover front B assembly. Service and Repair.)
