General Specification(s)




GENERAL SPECIFICATIONS

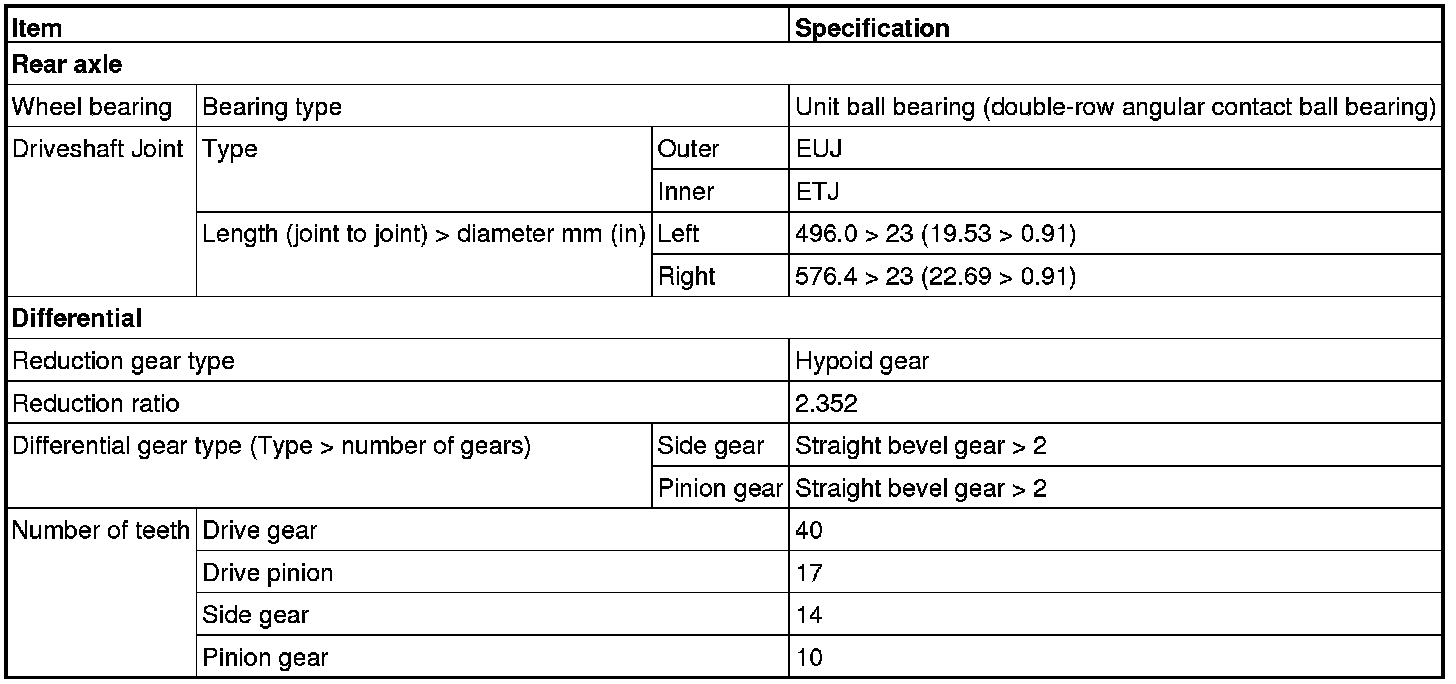

[Type A]

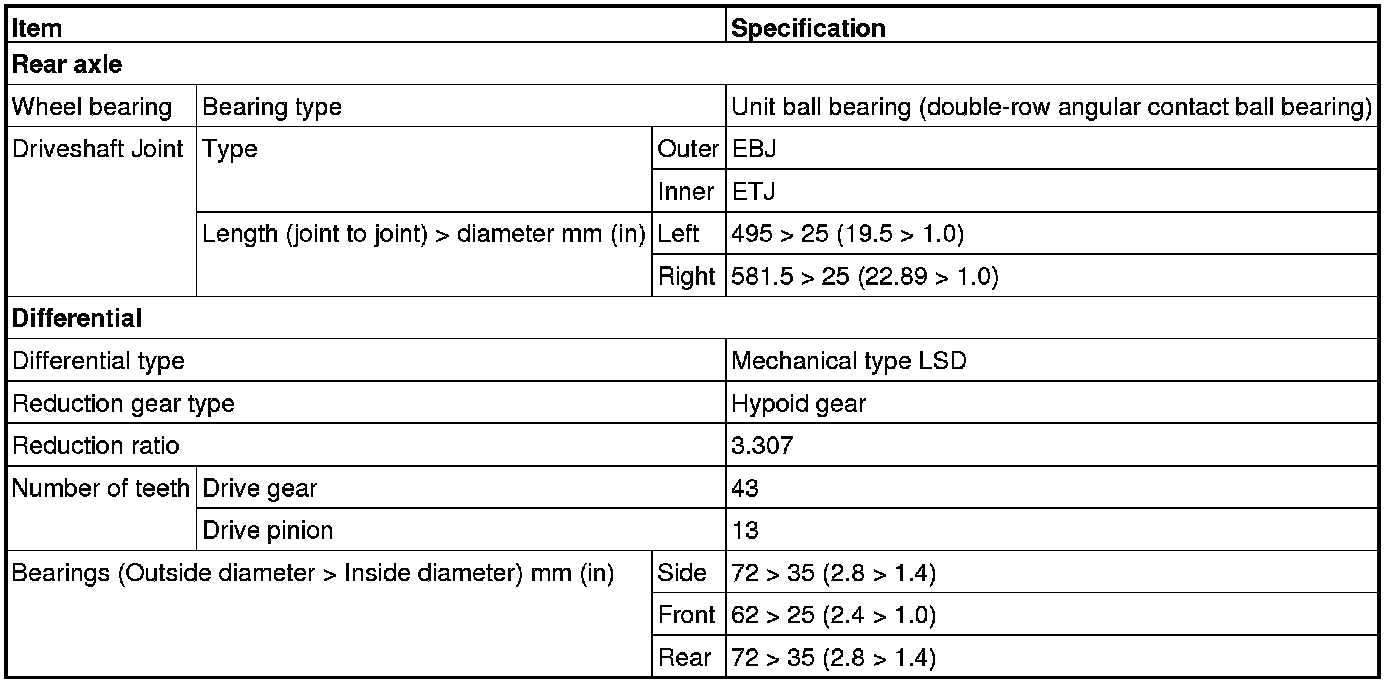

[Type B]





NOTE:
*: Indicates the distance between the center of each joint.
