Removal and Replacement




REMOVAL AND INSTALLATION

CAUTION:

- The parts indicated by * are the bolts with friction coefficient stabilizer. In removal, ensure there is no damage, clean dust and soiling from the bearing and thread surfaces, and tighten them to the specified torque.









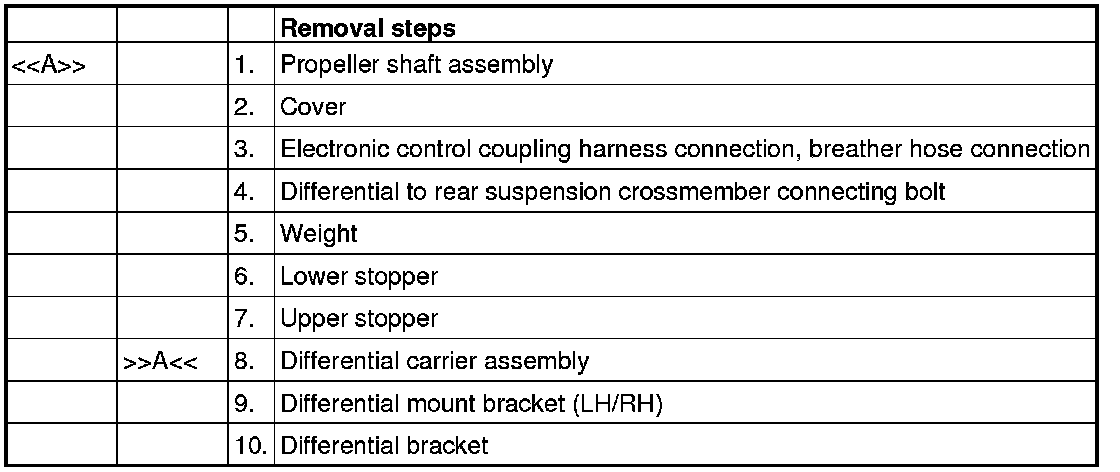

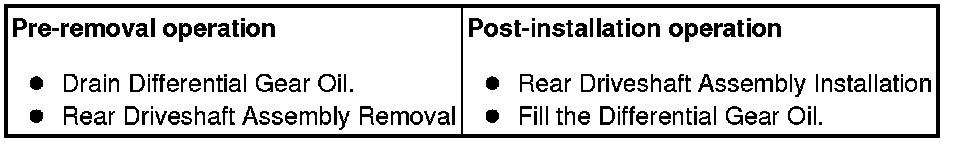

[Type A]










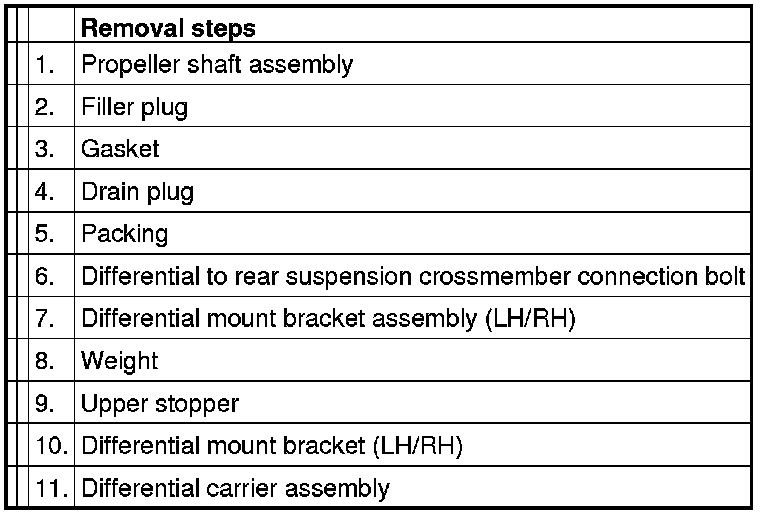

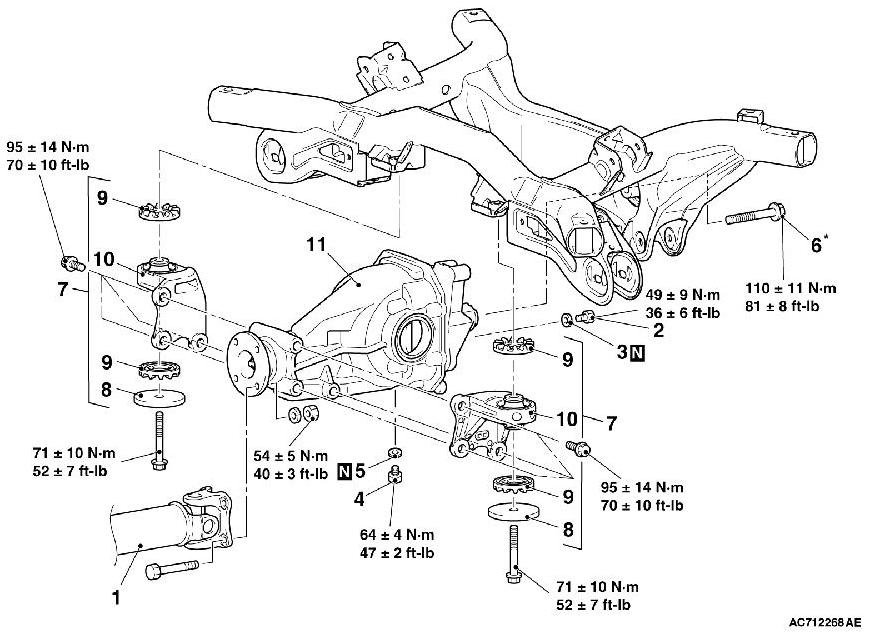

[Type B]






REMOVAL SERVICE POINTS

[[A]] PROPELLER SHAFT DISCONNECTION

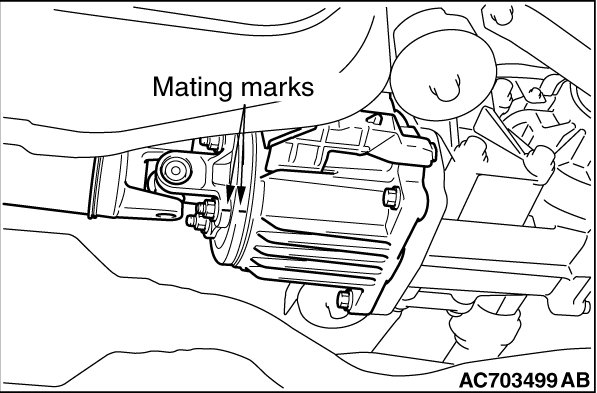

1. Put mating marks on the flange yoke and the electronic control coupling.
2. Hold the disconnected propeller shaft with a wire so that it will not hang at a sharp angle.

INSTALLATION SERVICE POINTS

]]A[[ DIFFERENTIAL CARRIER ASSEMBLY INSTALLATION

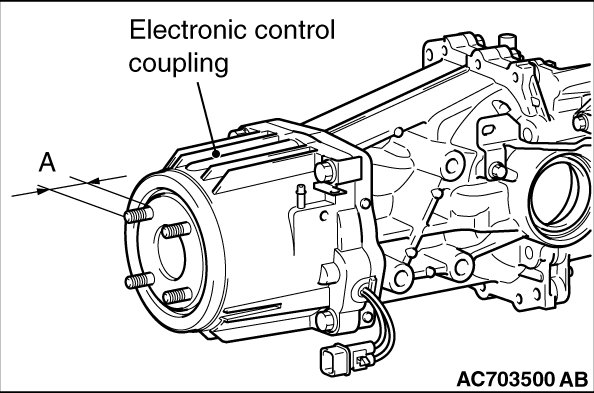

1. Check that the length of the electronic control coupling stud bolt (A) is within the standard value range.
Standard value: 22.3 - 25.1 mm (0.88 - 0.99 inch)
2. If the length exceeds the standard value, replace the stud bolt.
Specified torque: 15 ± 3 Nm (11 ± 2 ft-lb)
NOTE:
When replacing the stud bolts, always clean the stud bolt threaded holes.
