Gear Oil Level Check

GEAR OIL LEVEL CHECK

1. Remove the filler plug.

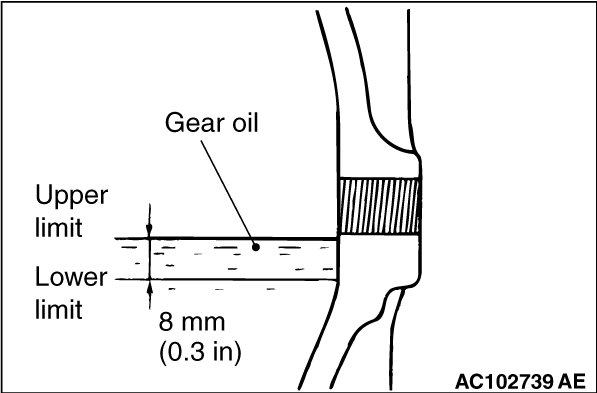

2. Check that gear oil level is not 8 mm (0.3 inch) below the bottom of filler plug hole.
3. If the gear oil level is not between the upper limit and lower limit, add the specified gear oil below the bottom of filler plug.
Specified gear oil:
[Type A]
MITSUBISHI Genuine DIA QUEEN LSD gear oil
[Type B]
Hypoid gear oil API classification GL-5, SAE 80
4. Tighten the filler plug to the specified torque.
Tightening torque:
[Type A]
49 ± 9 Nm (36 ± 6 ft-lb)
[Type B]
32 ± 2 Nm (23 ± 2 ft-lb)
