TC-SST Teach-In

TC-SST TEACH-IN

TEACH-IN ITEM

1. Scan tool item execution

To complete each Teach-In operation, multiple items must be executed using scan tool MB991958, and those items shall be executed in a designated order.

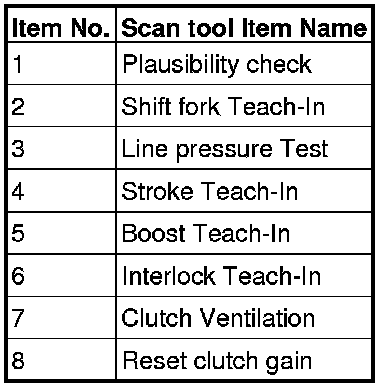

1-1. SCAN TOOL ITEM LIST





NOTE:

- Item No. 3 and No. 6 are displayed on the scan tool, however, those are not used.

- Item No.8 is not displayed when the Diag. Version of TC-SST-ECU is pre-0002. (Diag. Version can be checked by the Teach-In screen of scan tool.)

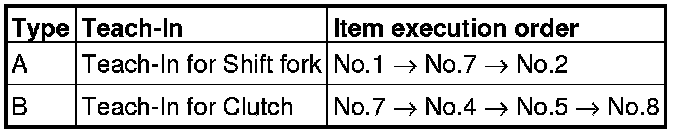

1-2. ITEM EXECUTION ORDER





NOTE:
Item No.8 is not displayed when the Diag. Version of TC-SST-ECU is pre-0002. (Diag. Version can be checked by the Teach-In screen of scan tool.)

2. Confirmation of Teach-In operation status

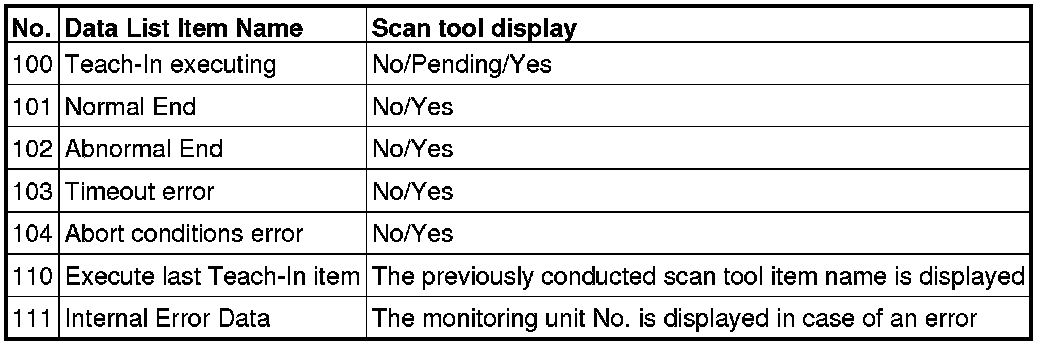

Using the data list simultaneously displayed with Teach-In, the execution status and results can be confirmed.

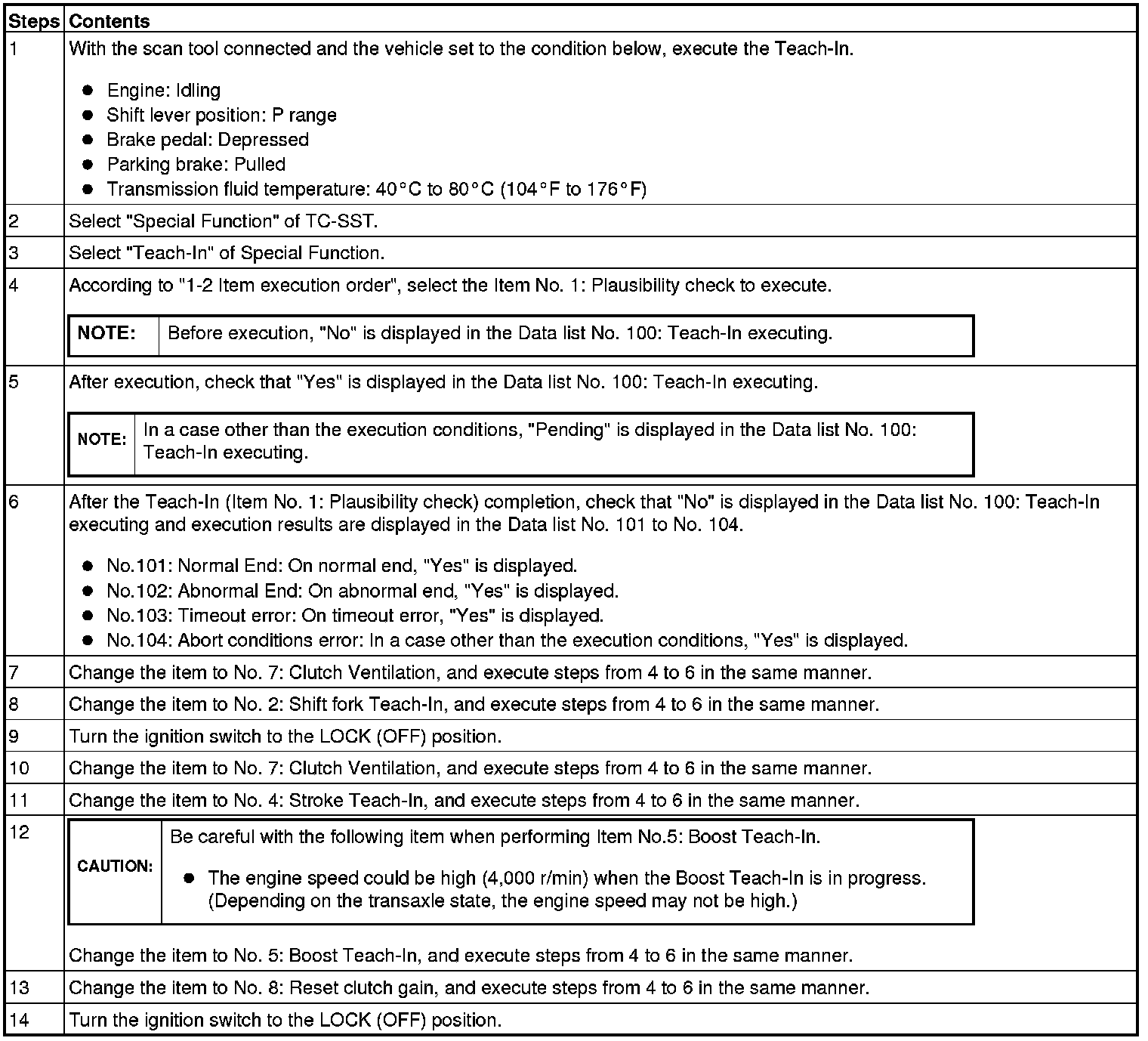

TEACH-IN PROCEDURE

NOTE:

- According to the transmission fluid state (fluid -filled state), Teach-In executed time is not equal.

- Item No.8 is not displayed when the Diag. Version of TC-SST-ECU is pre-0002. (Diag. Version can be checked by the Teach-In screen of scan tool.)
