Front Suspension

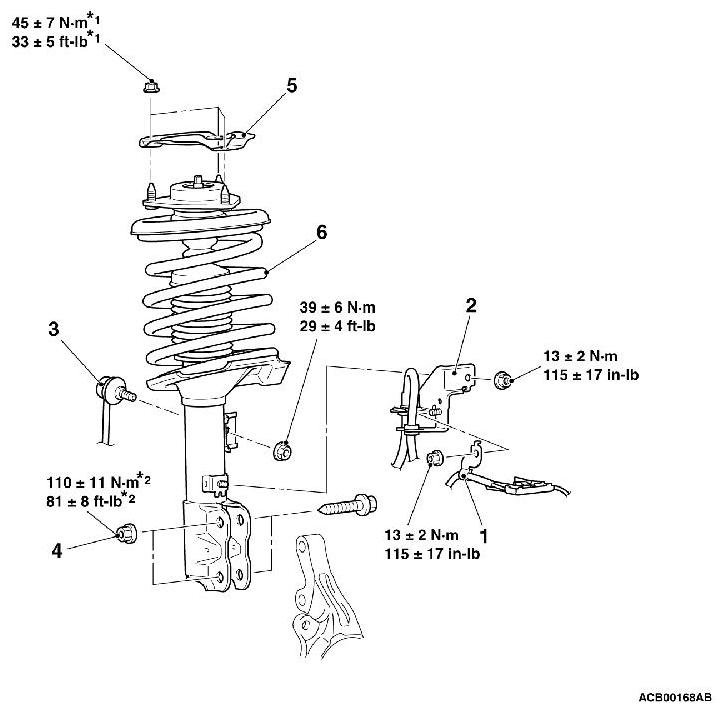

REMOVAL AND INSTALLATION

CAUTION:

- The parts indicated by *1 indicates parts which should be temporarily tightened, and then fully tightened with the vehicle standing on the ground and the curb weight condition.

- The parts indicated by *2 are the nuts with friction coefficient stabilizer. In removal, ensure there is no damage, clean dust and soiling from the bearing and thread surfaces, and tighten them to the specified torque.

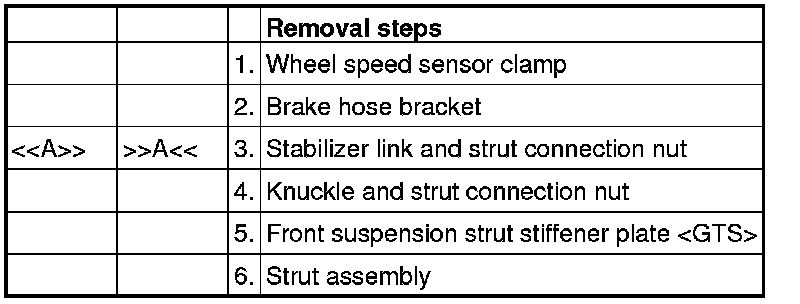

REMOVAL SERVICE POINT

[[A]] STABILIZER LINK AND STRUT CONNECTION NUT REMOVAL





Use a hexagon wrench to remove the stabilizer link and strut connection nut as shown in the figure.

INSTALLATION SERVICE POINT

]]A[[ STABILIZER LINK AND STRUT CONNECTION NUT INSTALLATION





Use a hexagon wrench to install the stabilizer link and strut connection nut as shown in the figure.
