Front Suspension

INSPECTION

- Check the bushings for wear and deterioration.

- Check the stabilizer bar for deterioration or damage.

- Check all bolts for condition and straightness.

STABILIZER LINK BALL JOINT TURNING TORQUE CHECK

Required Special Tool:

- MB990326: Preload socket

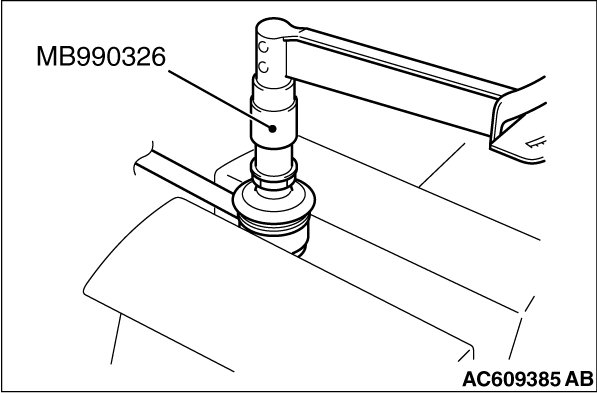

1. Move the stabilizer link ball joint stud back and forth for several times, install the stud with nut, and measure the stabilizer link ball joint rotation starting torque using special tool MB990326.
Standard value: 0.5 - 2.9 Nm (4.4 - 25.7 in-lb)
2. When the measured value exceeds the standard value, replace the stabilizer link (Refer to Front Suspension).
3. If the measured value stays within the standard range, and there is looseness or gritty feeling, the component is judged as unusable and should be replaced.

STABILIZER LINK BALL JOINT DUST COVER CHECK

(Refer to Ball Joint Dust Cover Inspection)
