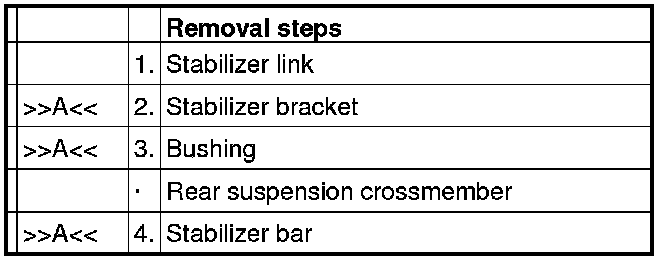

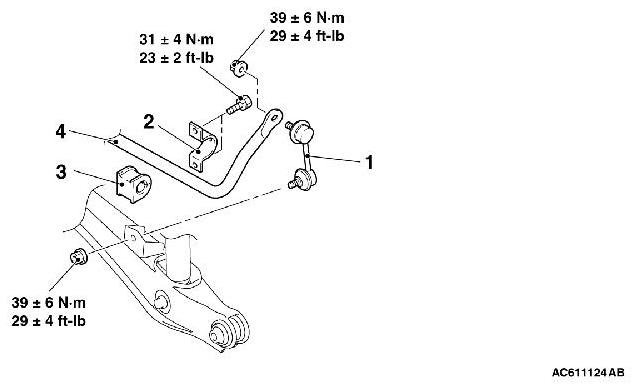

Removal and Installation

REMOVAL AND INSTALLATION









INSTALLATION SERVICE POINT

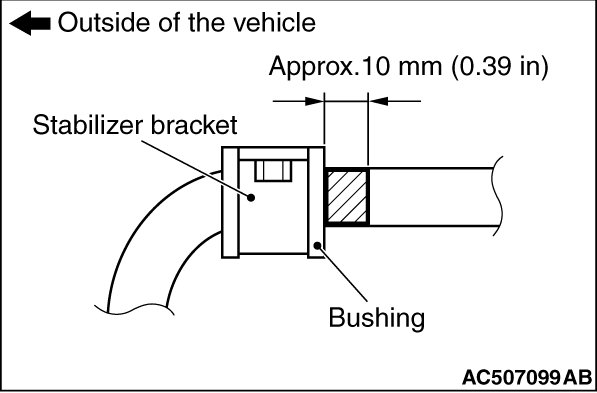

]]A[[ STABILIZER BAR/BUSHING/STABILIZER BRACKET INSTALLATION





Position the identification mark of the stabilizer bar at the left side of the vehicle as shown in the figure, and tighten the stabilizer bracket mounting bolt.
