Front Suspension

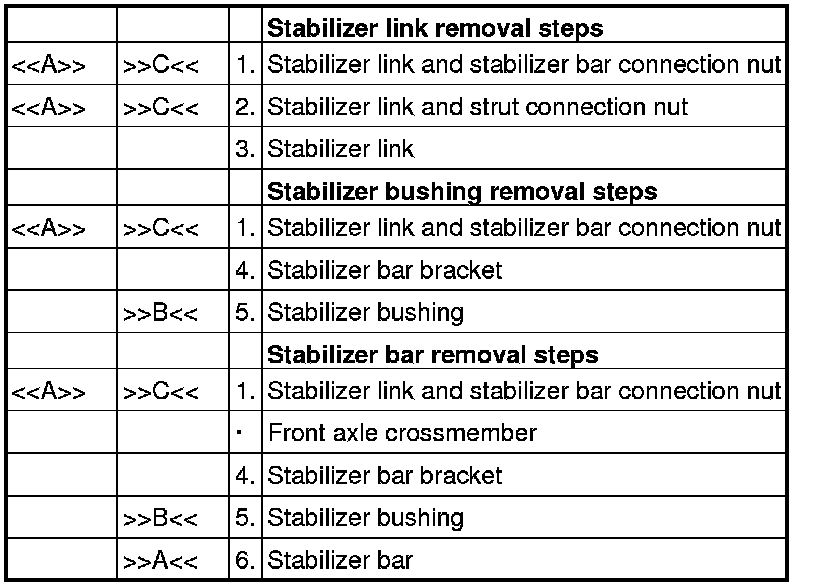

REMOVAL AND INSTALLATION













REMOVAL SERVICE POINT

[[A]] STABILIZER LINK AND STABILIZER BAR CONNECTION NUT/STABILIZER LINK AND STRUT CONNECTION NUT REMOVAL





Use a hexagon wrench to remove the stabilizer link and strut connection nut as shown in the figure.

INSTALLATION SERVICE POINTS

]]A[[ STABILIZER BAR INSTALLATION





Install the stabilizer bar as shown in the figure.

]]B[[ STABILIZER BUSHING INSTALLATION





Install the stabilizer bushing as shown in the figure.

]]C[[ STABILIZER LINK AND STRUT CONNECTION NUT/STABILIZER LINK AND STABILIZER BAR CONNECTION NUT INSTALLATION





Use a hexagon wrench to install the stabilizer link and strut connection nut as shown in the figure.
