Front Suspension

LOWER ARM REAR BUSHING REPLACEMENT

Required Special Tools:

- MB992119: Arm bushing remover and installer

- MB990979: Ring

- MB990890: Rear suspension bushing base

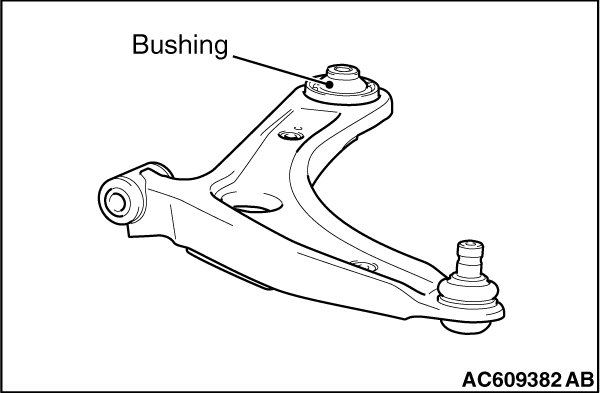

Replace the back side bushing according to the following procedure.

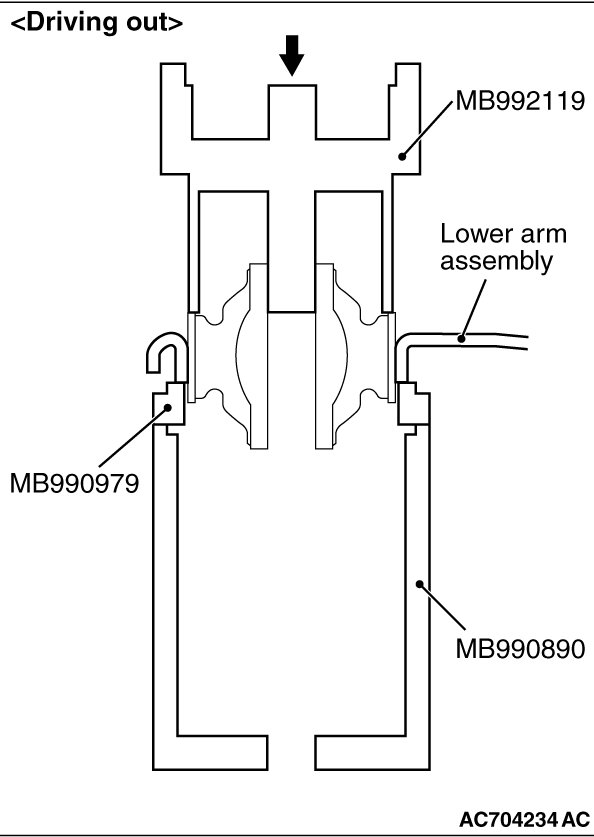

1. Use special tools MB992119, MB990979 and MB990890 to remove the bushing.

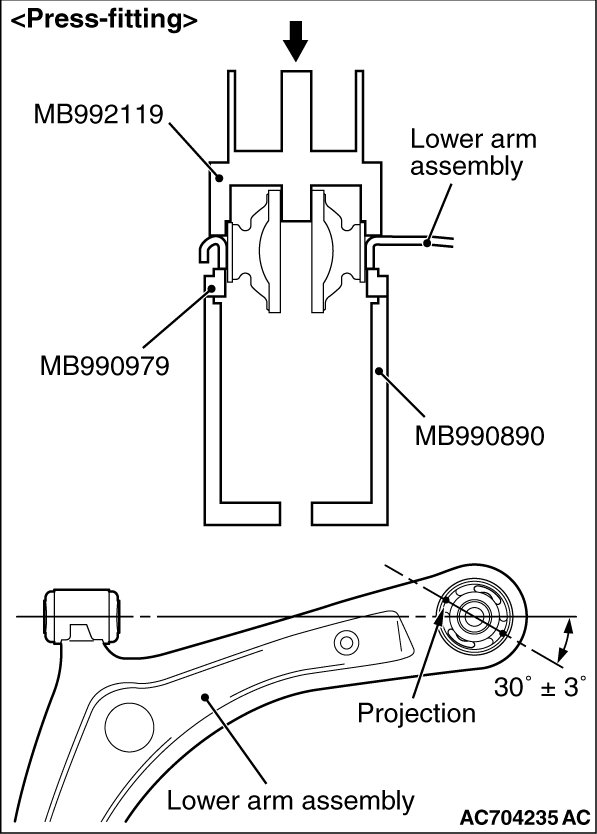

2. Use special tools MB992119, MB990979 and MB990890 to press-fit the bushing.
3. Press-fit the bushing so that the bushing protrusion is in the direction shown in the figure.
4. Press-fit the bushing until the special tool contacts with the lower arm assembly.
