Data List Reference Table

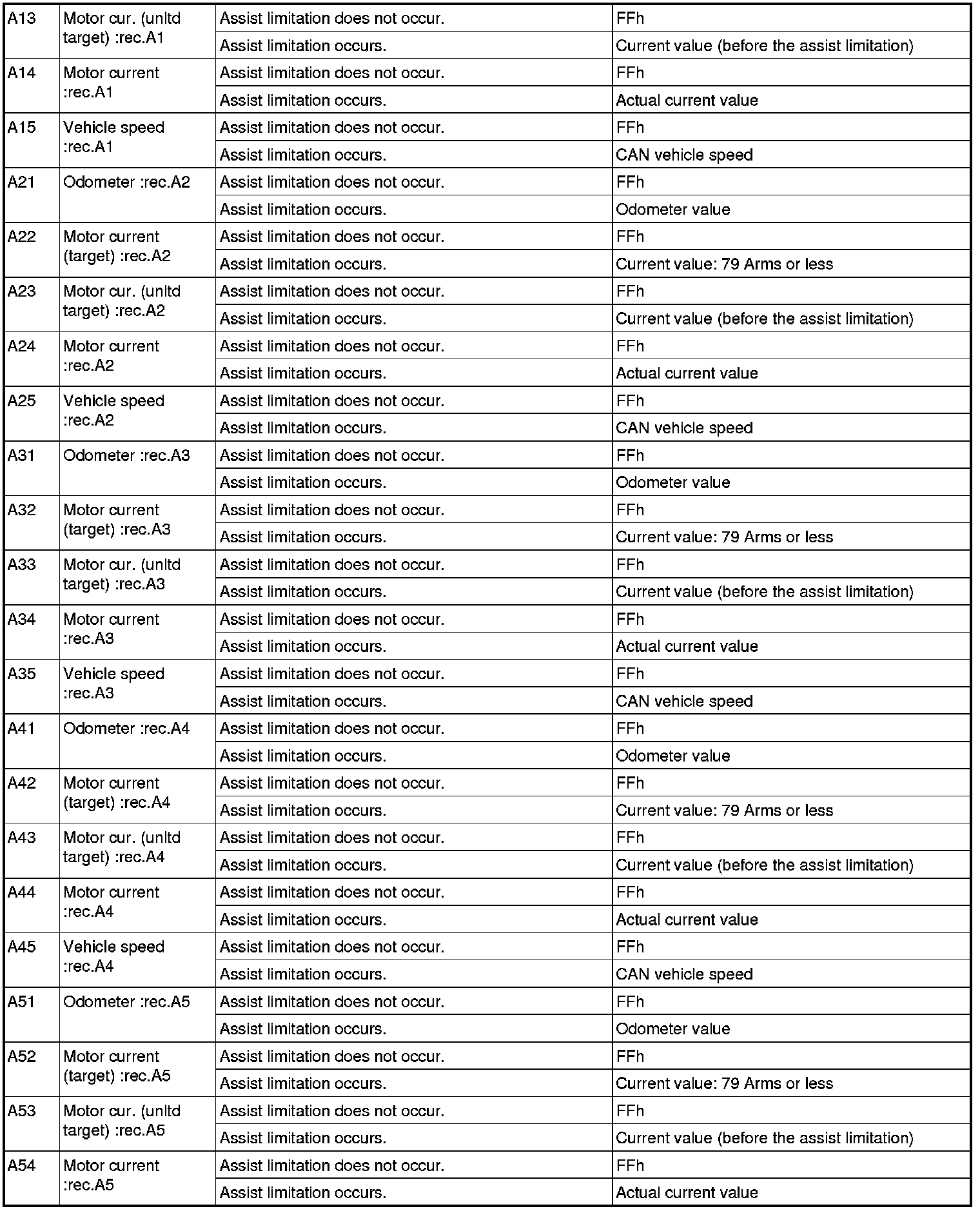

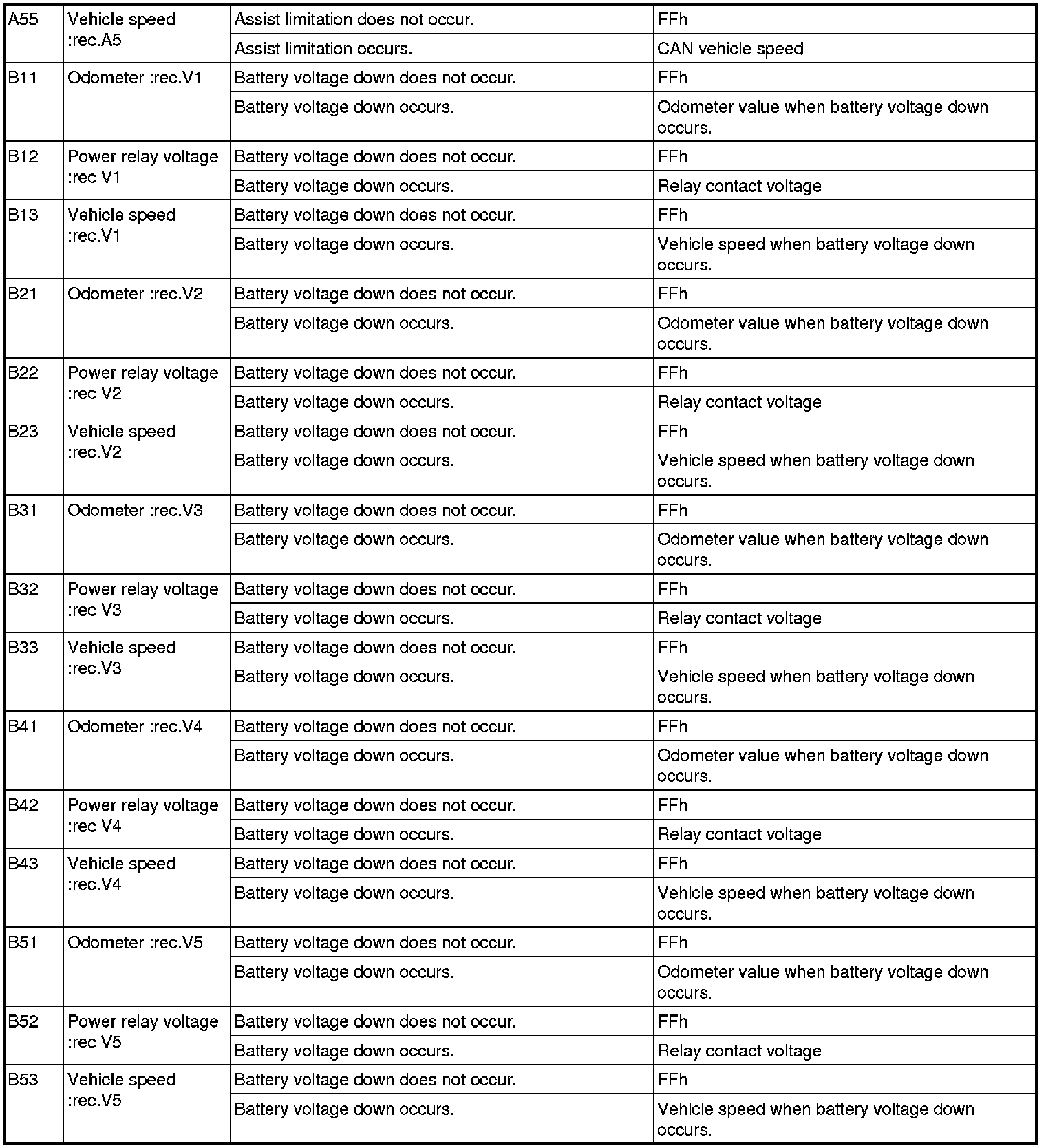

DATA LIST REFERENCE TABLE

NOTE:
Some items are not displayed on scan tool MB991958 according to the information in the ECU.

When the system is normal.













When the electric power steering-ECU shut off electric power steering system operation.

When the diagnosis system stops the electric power steering-ECU, the scan tool display data will be unreliable.
