Component Tests and General Diagnostics

STEERING WHEEL AUDIO REMOTE CONTROL SWITCH INSPECTION

[EXCEPT RALLIART]

STEERING WHEEL AUDIO REMOTE CONTROL SWITCH CHECK

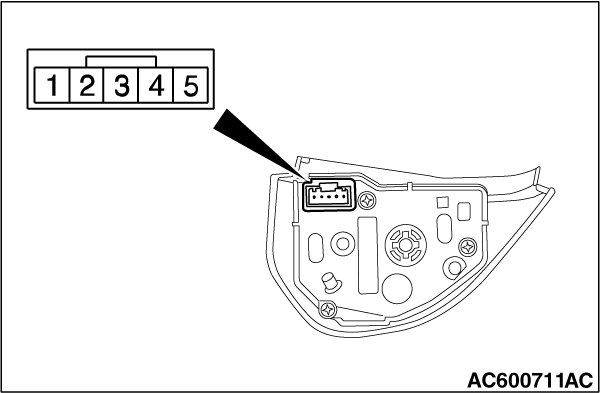

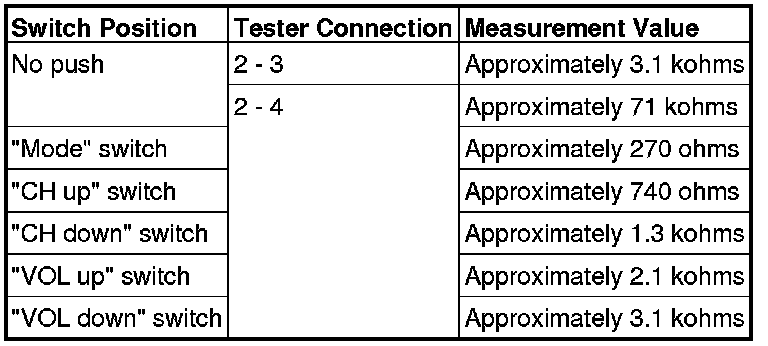

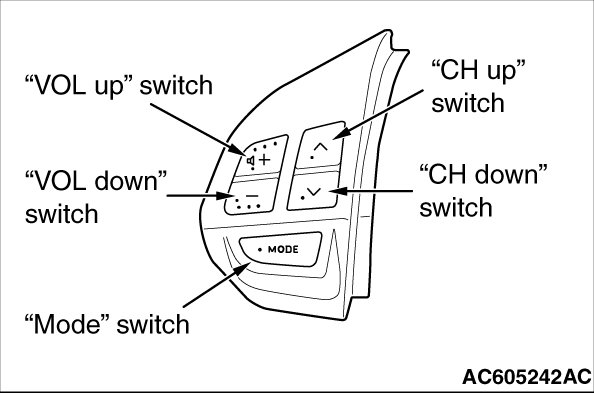

Use an ohmmeter to measure the resistance value between the terminal.






ILLUMINATION CHECK

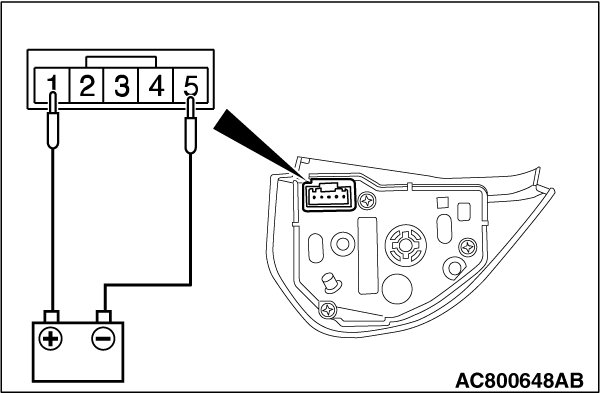

Apply the battery voltage of steering wheel audio remote control switch connector terminal No. 1 and 5, and check if the steering wheel audio remote control switch illuminates.
NOTE:
Make sure that the polarity is correct.

[RALLIART]

STEERING WHEEL AUDIO REMOTE CONTROL SWITCH CHECK

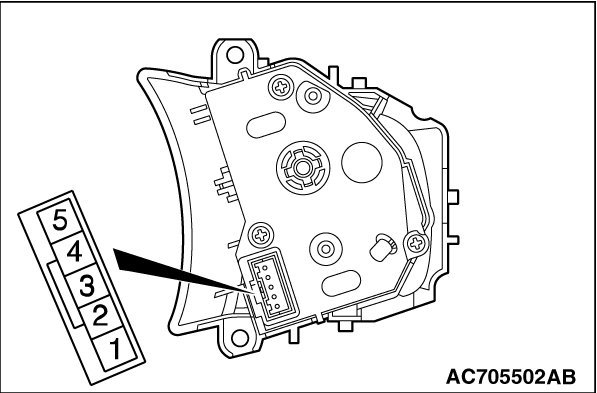

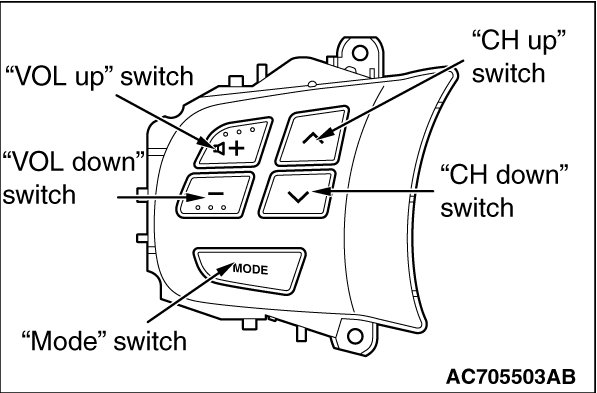

Use an ohmmeter to measure the resistance value between the terminal.






ILLUMINATION CHECK

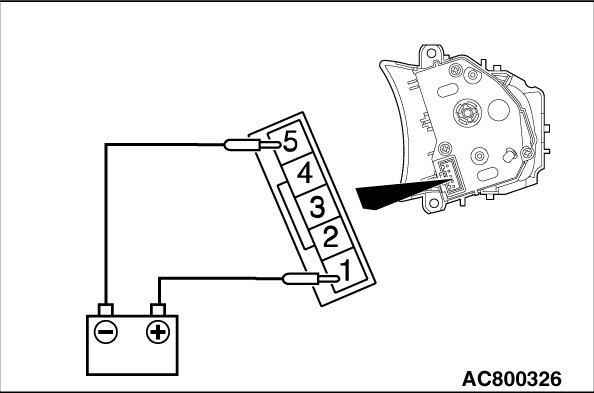

Apply the battery voltage of steering wheel audio remote control switch connector terminal No. 1 and 5, and check if the steering wheel audio remote control switch illuminates.
NOTE:
Make sure that the polarity is correct.
