Power Steering Oil Pump Assembly Disassembly and Reassembly

]]C[[ CAM RING INSTALLATION

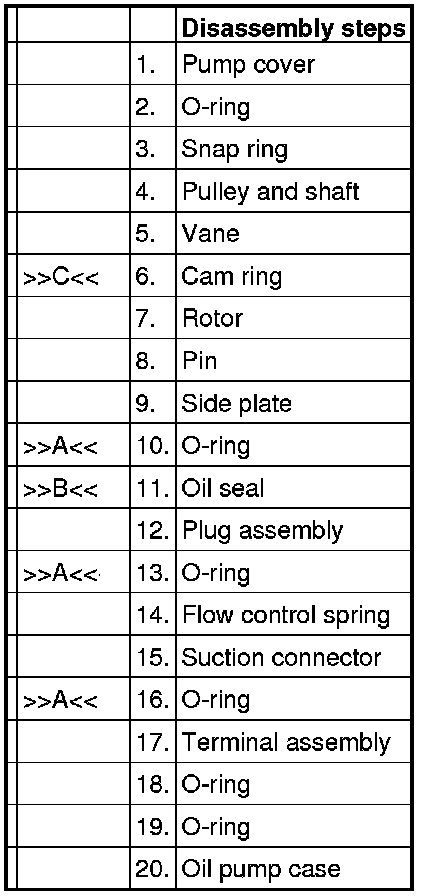

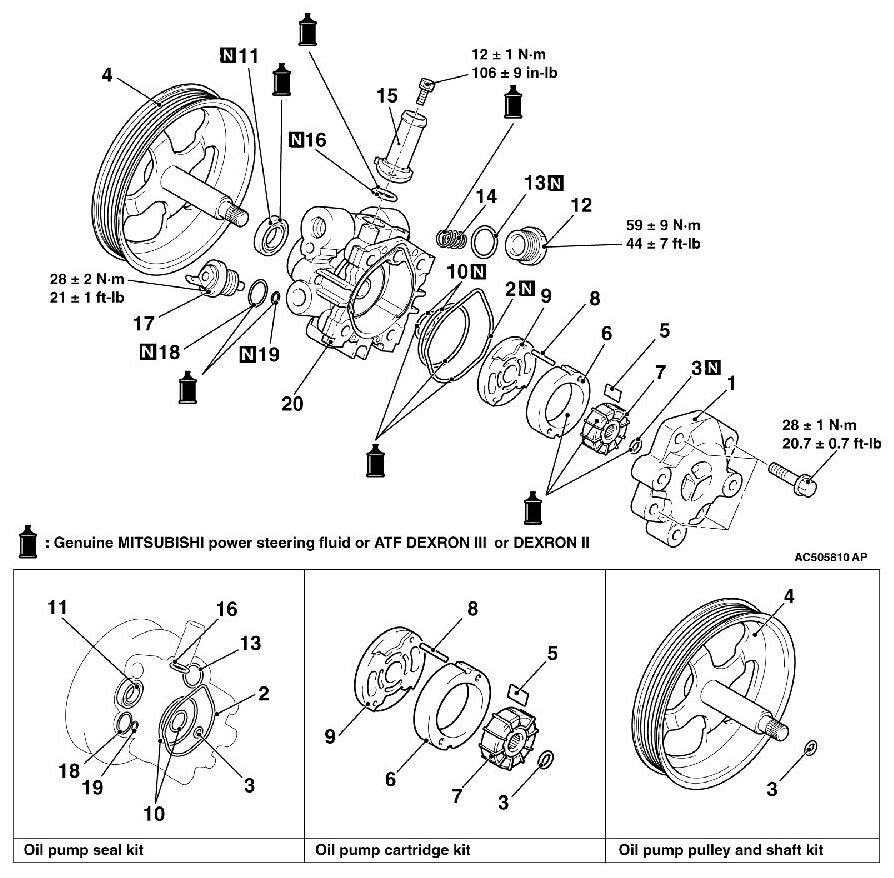

DISASSEMBLY AND ASSEMBLY [2.4L Engine]

CAUTION:

- Do not use ATF-SP II M and ATF-SP III for the power steering fluid.









Required Special Tool:

- MB990938: Installer bar (MB990925: Including in the bearing and oil seal installer set)

- MB991203: Oil seal and bearing installer

ASSEMBLY SERVICE POINTS

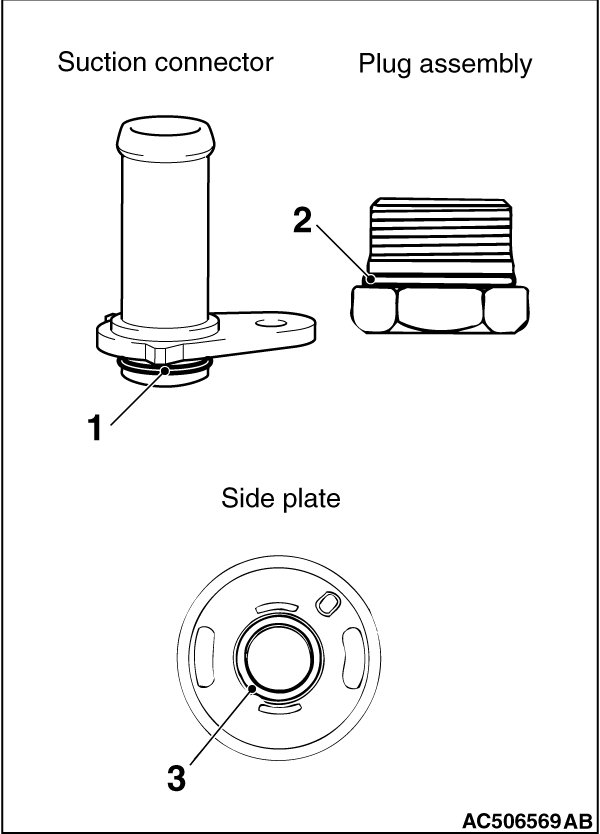

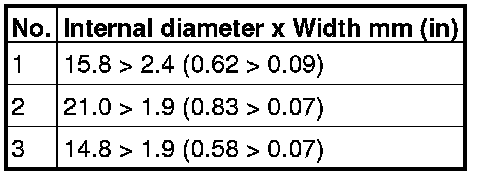

]]A[[ O-RING INSTALLATION










]]C[[ CAM RING INSTALLATION

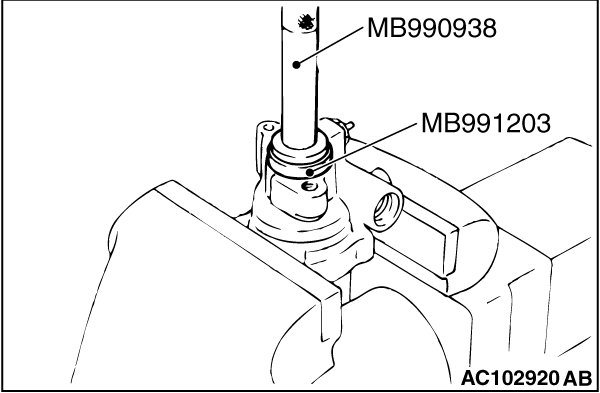

]]B[[ OIL SEAL INSTALLATION





Use the following special tools to install the oil seal.

- Installer bar (MB990938) [Including in the bearing and oil seal installer set (MB990925)]

- Oil seal and bearing installer (MB991203)

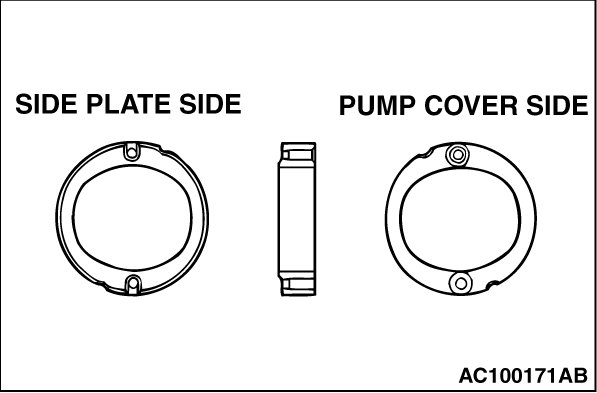

]]C[[ CAM RING INSTALLATION





CAUTION:
Cam ring can be assembled only in a particular direction.
