Removal and Replacement

REMOVAL AND INSTALLATION [2.0L ENGINE TURBO]

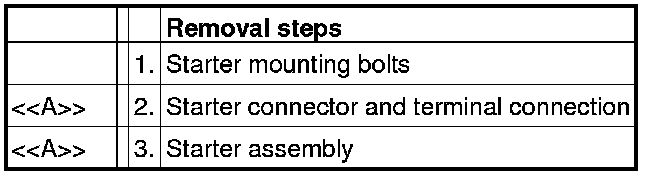

REMOVAL SERVICE POINT

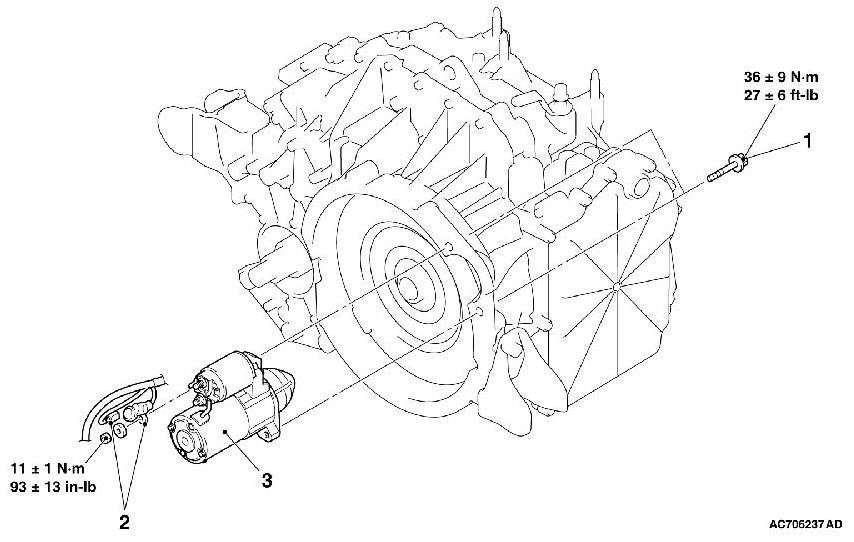

[[A]] STARTER CONNECTOR AND TERMINAL/STARTER ASSEMBLY REMOVAL

1. Slide the starter assembly, and remove the starter connector and terminal.

2. Remove the starter assembly from the lower front of the engine.
