Anti-Lock Braking System (ABS)

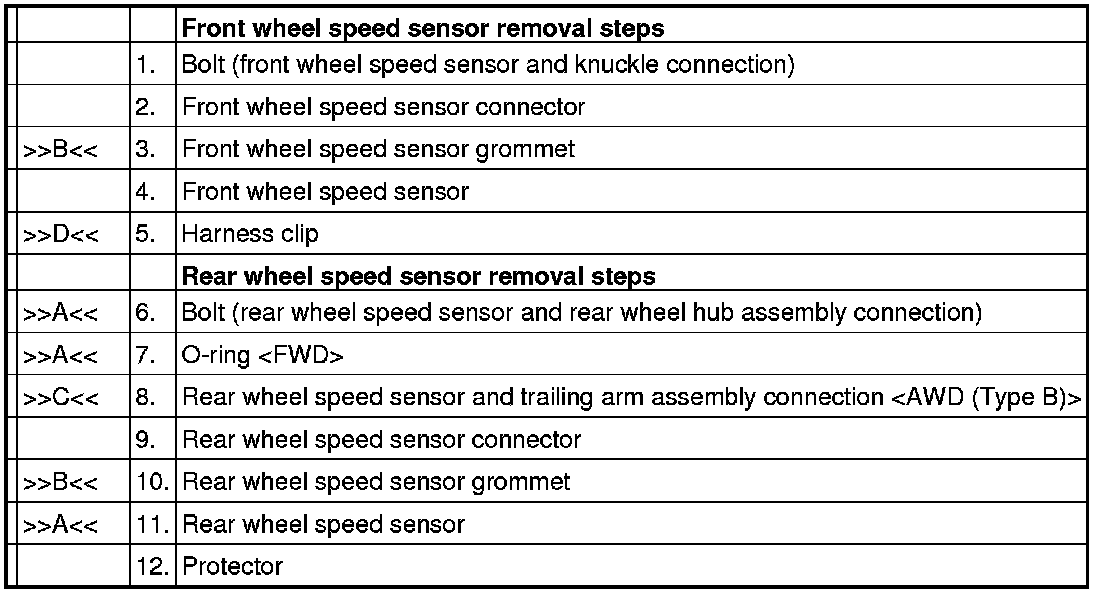

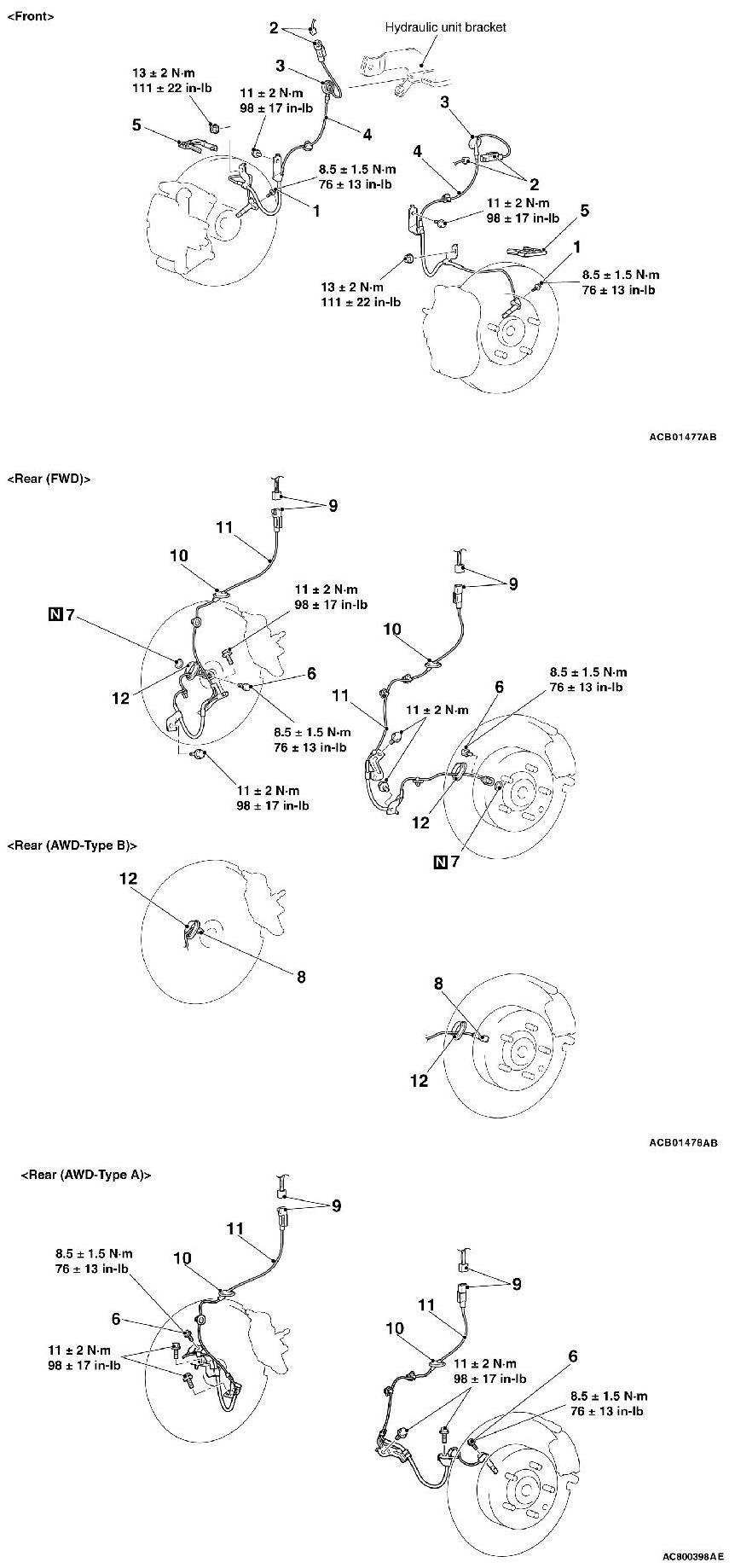

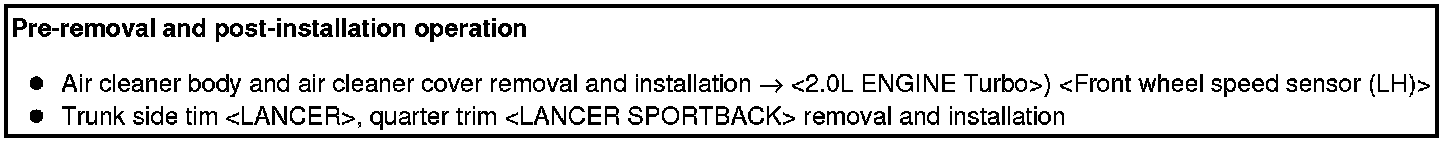

REMOVAL AND INSTALLATION

CAUTION:
The vehicle speed detection encoder collects any metallic particle easily, because it is magnetized. Make sure that the encoder should not collect any metallic particle. Check that there is not any trouble prior to reassembling it.













NOTE:
The vehicle speed detection encoder is integrated with the front wheel bearing and the rear wheel hub assembly, which cannot be disassembled.

INSTALLATION SERVICE POINTS

]]A[[ REAR WHEEL SPEED SENSOR, O-RING, AND BOLT (CONNECTION OF REAR WHEEL SPEED SENSOR WITH REAR WHEEL HUB ASSEMBLY) INSTALLATION

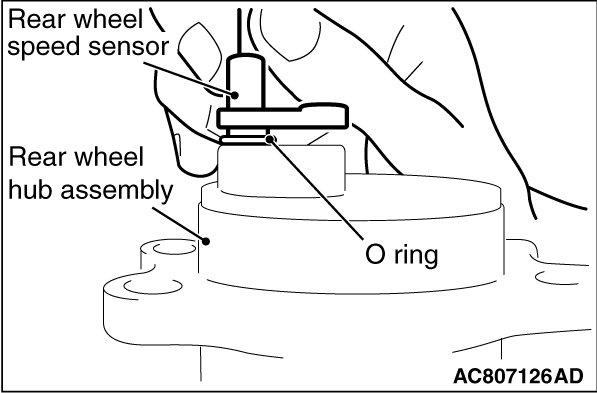

1. Align the mounting bolt hole position of rear wheel speed sensor with the mounting bolt hole position of rear wheel hub assembly.
2.
CAUTION:

- Do not insert the rear wheel speed sensor at an angle or by prying the sensor because it may be possible that the O-ring of rear wheel speed sensor cannot be mounted properly.

- After the insertion, do not perform an alignment of mounting bolt hole positions by rotating the rear wheel speed sensor.

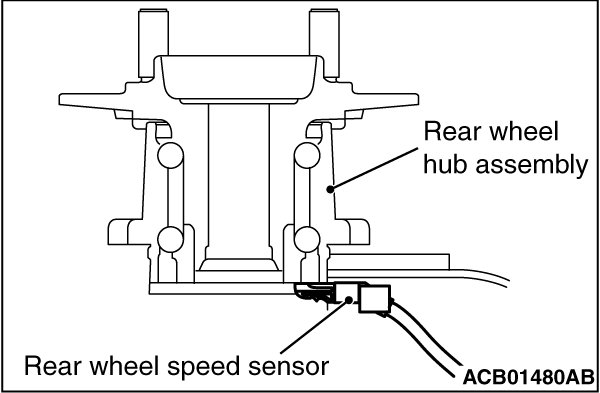

As shown in the figure, mount the rear wheel speed sensor while keeping the sensor perpendicular to the rear wheel hub assembly.

]]B[[ FRONT WHEEL SPEED SENSOR GROMMET/REAR WHEEL SPEED SENSOR GROMMET INSTALLATION

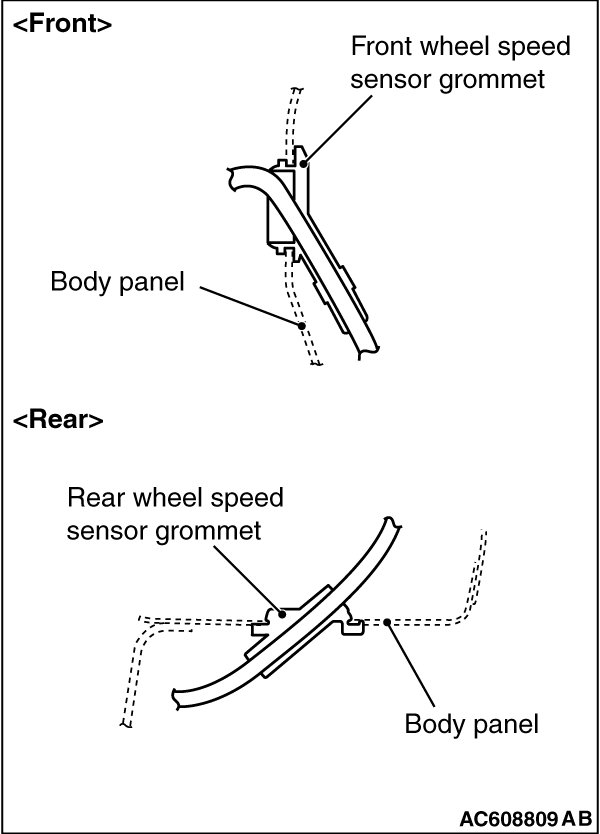

Install the front wheel speed sensor grommet and the rear wheel speed sensor grommet to the body panel snugly as shown in the figure.

]]C[[ REAR WHEEL SPEED SENSOR INSTALLATION





Push the rear wheel speed sensor to the end and install it securely.

]]D[[ HARNESS CLIP INSTALLATION





Install the front wheel speed sensor to the harness clip as shown in the figure.
