Fuel Delivery and Air Induction: Description and Operation

GENERAL INFORMATION

This fuel system is designed with consideration for global environment protection to ensure safety at a collision, reduce weight, and improve reliability and quality. This system has the following features:

- A quick-joint connector is used for the fuel high-pressure hoses in the engine compartment to reduce the permeation of fuel evaporative emission.

- The surface of underfloor fuel pipes is coated with 1 mm (0.04 inch) thick plastic to improve resistance to corrosion and chipping.

- A returnless fuel system eliminates returned fuel from the engine. The heat that fuel receives from the engine is reduced, minimizing fuel temperature in the fuel tank and controlling the amount of evaporated gas [2.0L ENGINE Non-turbo, 2.4L ENGINE].

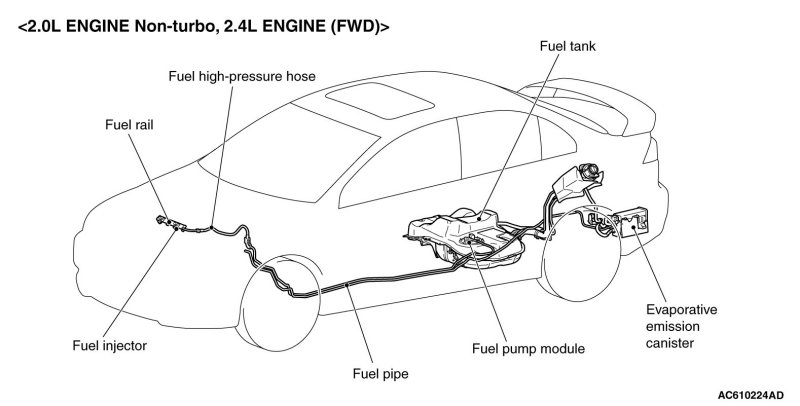

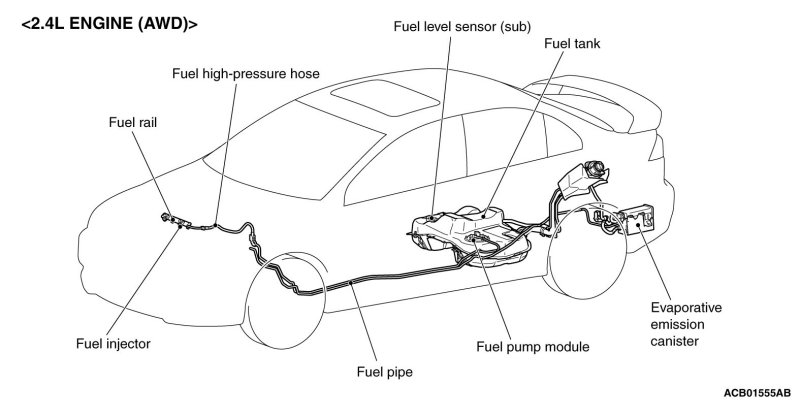

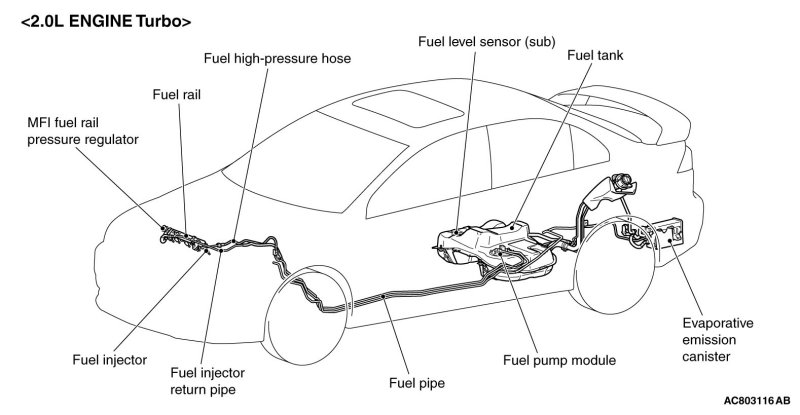

CONSTRUCTION DIAGRAM
