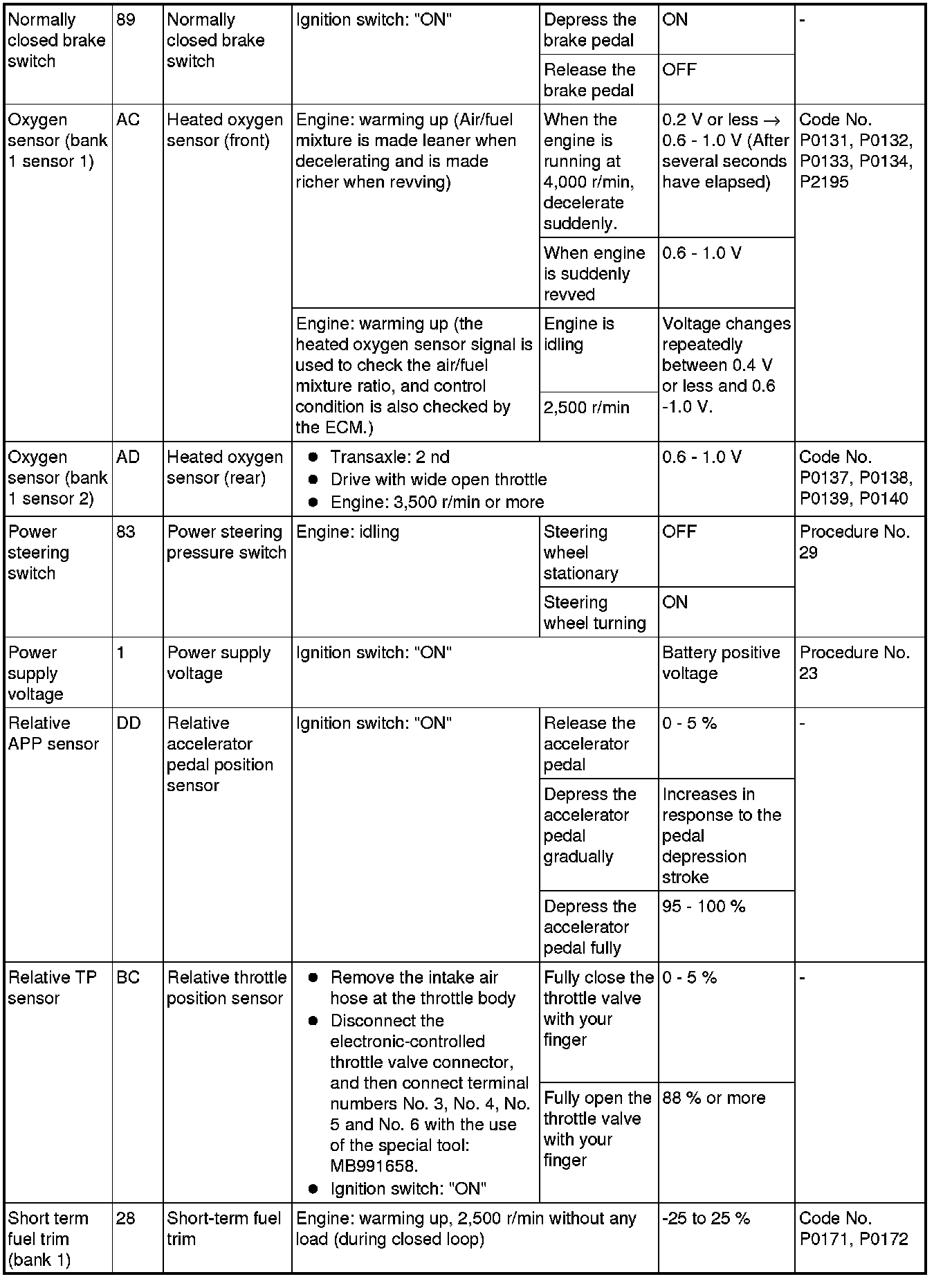

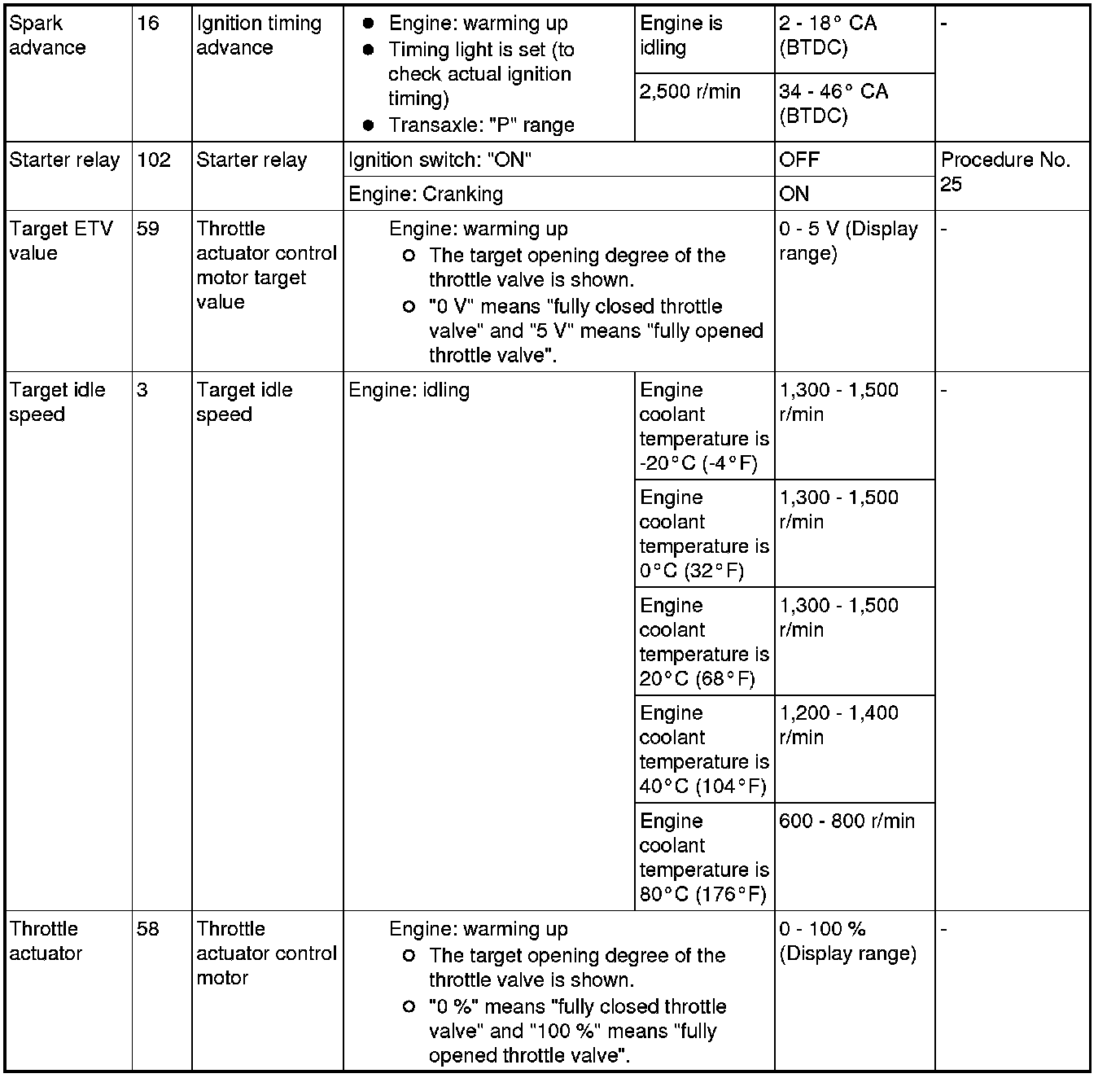

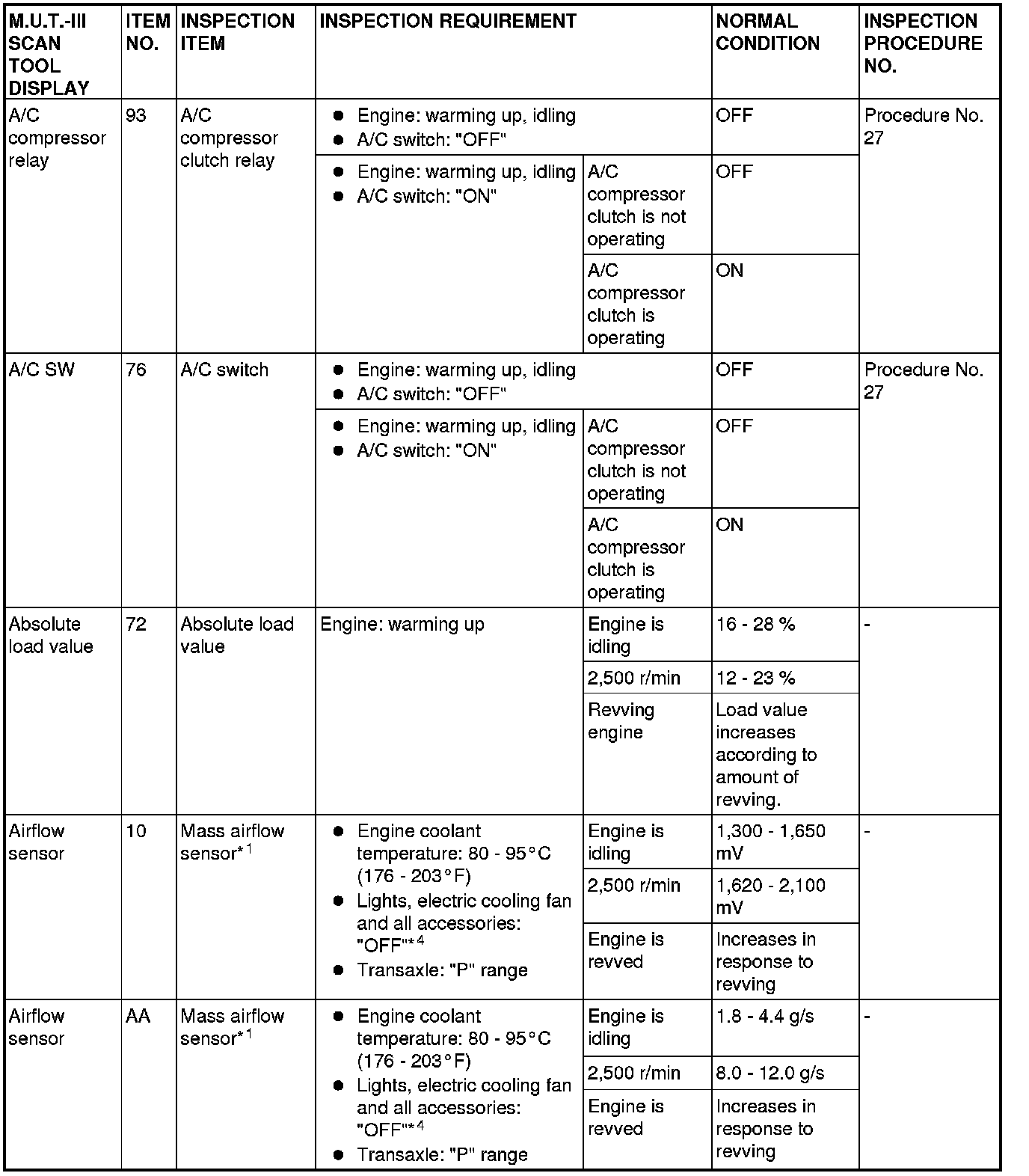

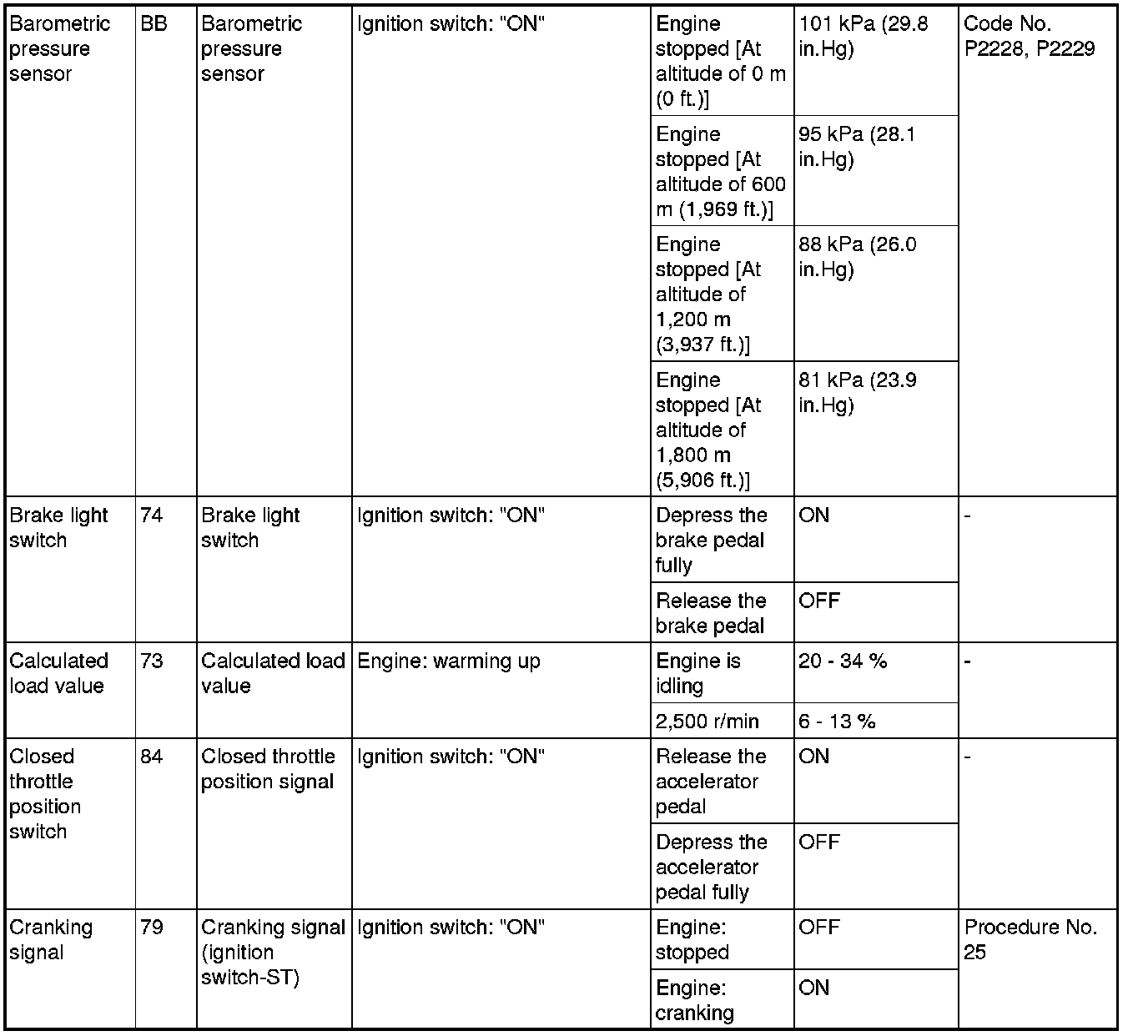

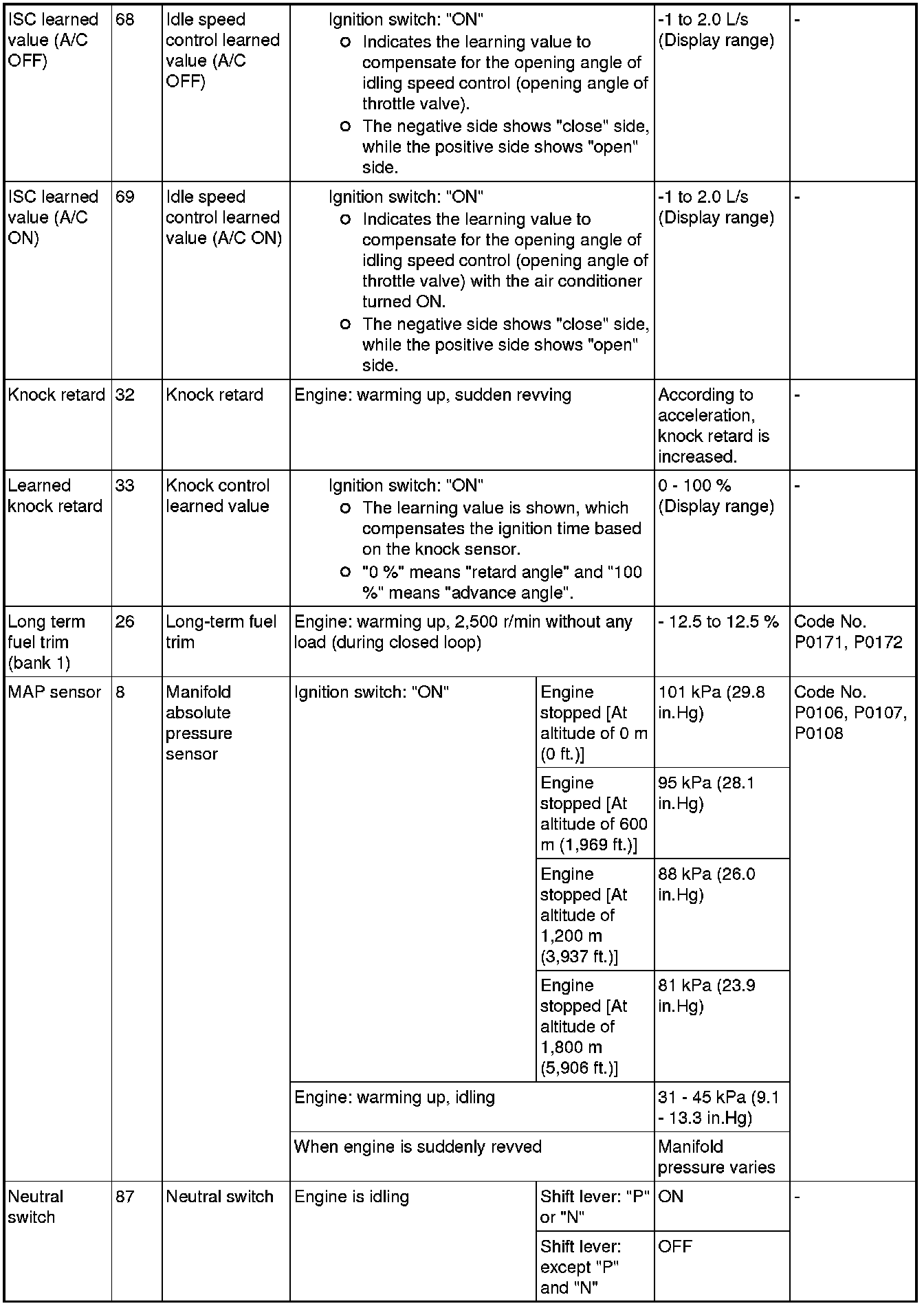

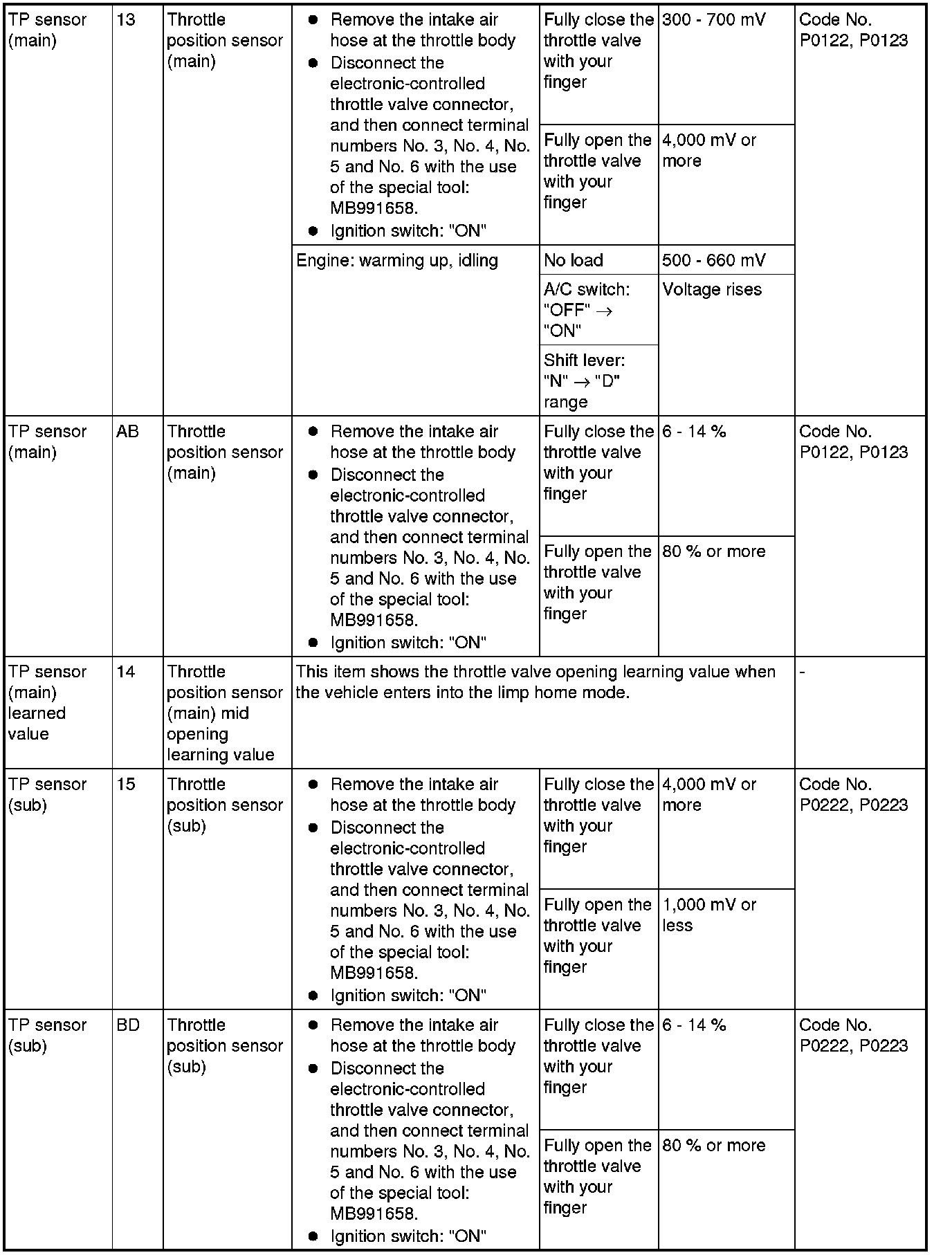

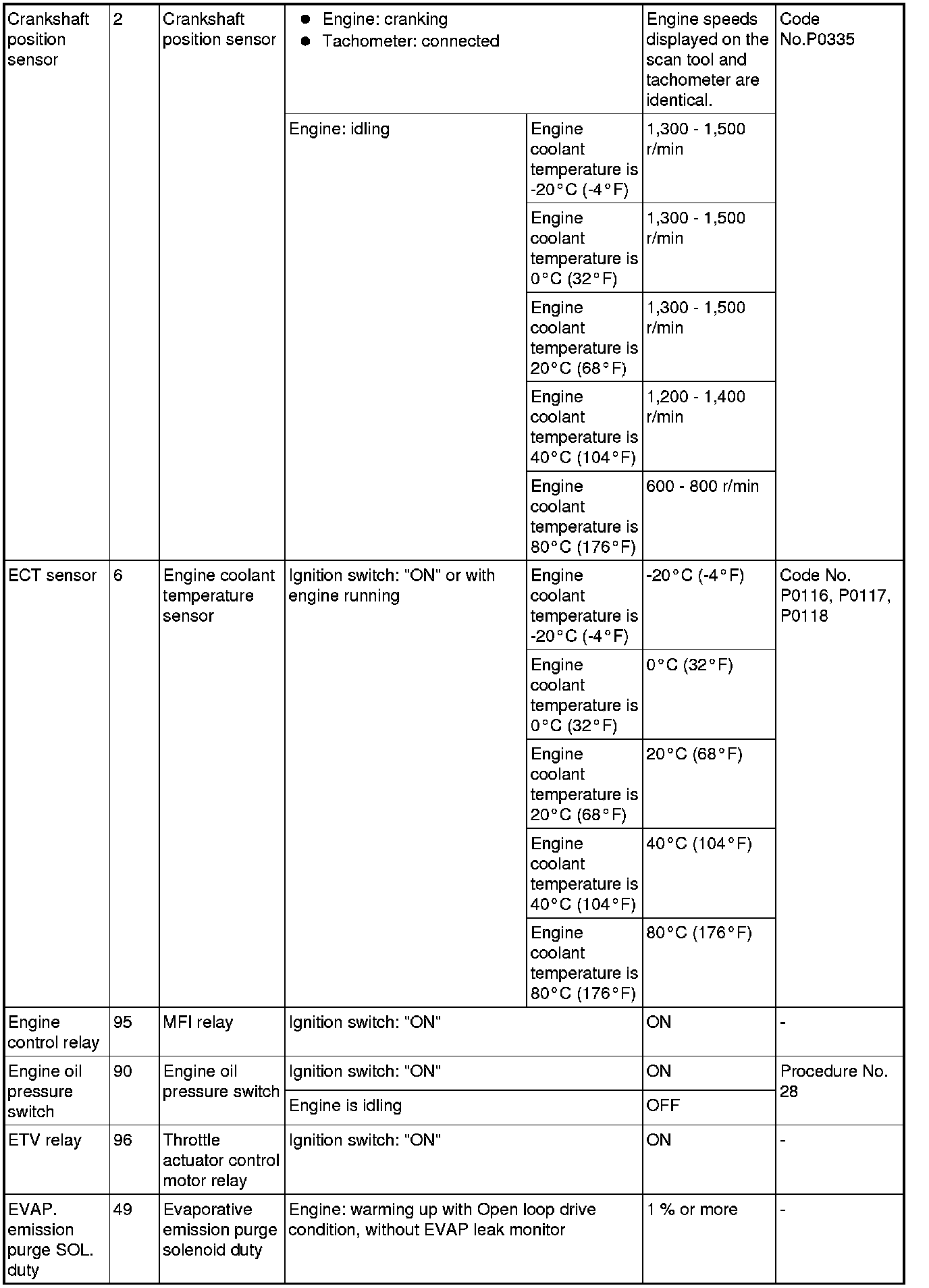

Data List Reference Table

DATA LIST REFERENCE TABLE

CAUTION:

- When shifting the shift lever to D range, the brakes should be applied so that the vehicle does not move forward.

- Driving tests always need two persons: one driver and one observer.

NOTE:
*1: In a new vehicle [driven approximately 500 km (311 mile) or less], the mass airflow sensor output value is sometimes 10% higher than the standard value.

NOTE:

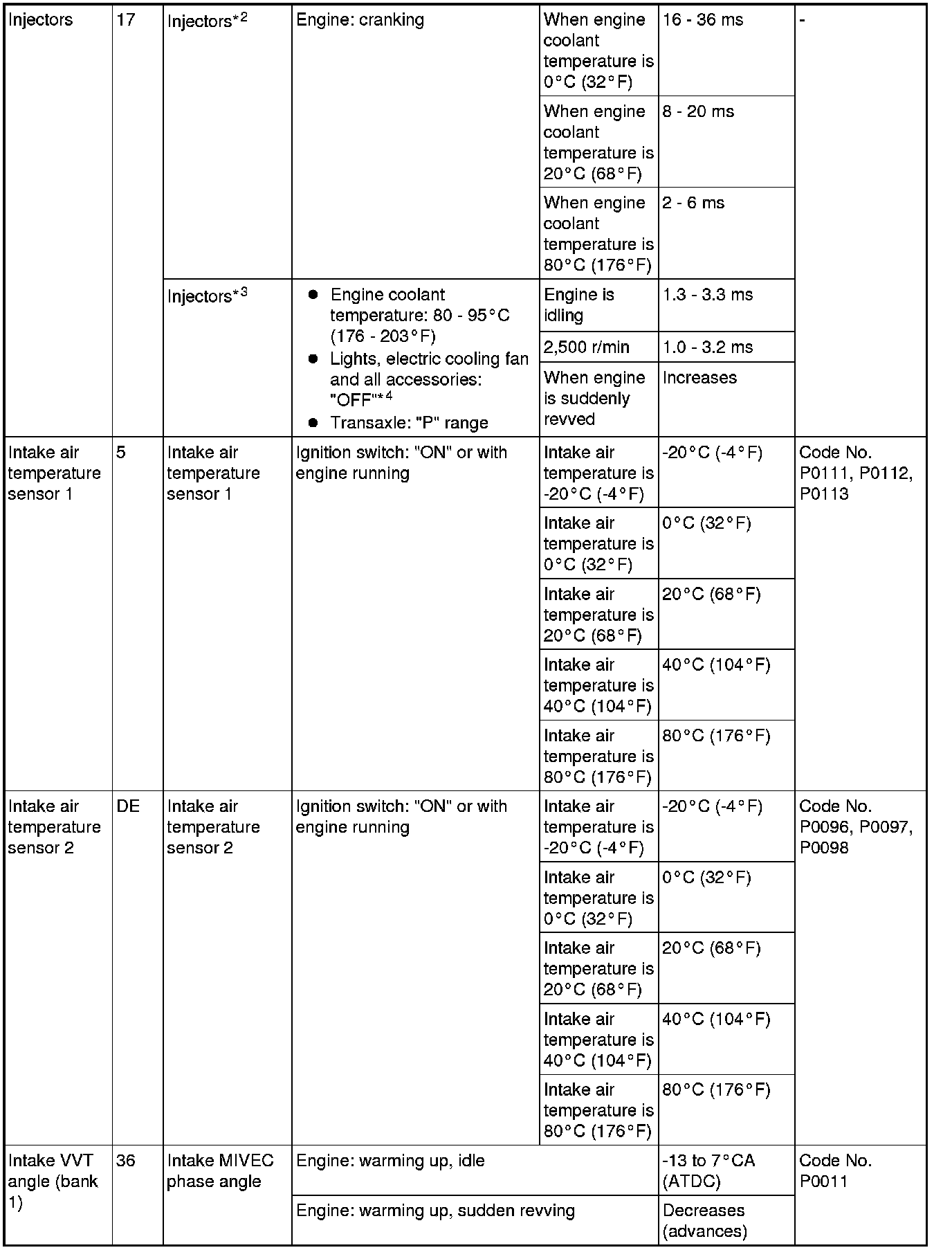

*2: The injector drive time represents the time when the cranking speed is at 250 r/min or below when the power supply voltage is 11 volts.

NOTE:
*3: In a new vehicle [driven approximately 500 km (311 mile) or less], the injector drive time is sometimes 10% longer than the standard time.

NOTE:
*4: Vehicles for Canada, the headlight, taillight, etc. remain lit even when the lighting switch is in "OFF" position but this is no problem for checks.

NOTE:
*5: Data items are displayed on scan tool display, but the in-line 4 engine is not applicable and its data is displayed as "N/A".

NOTE:

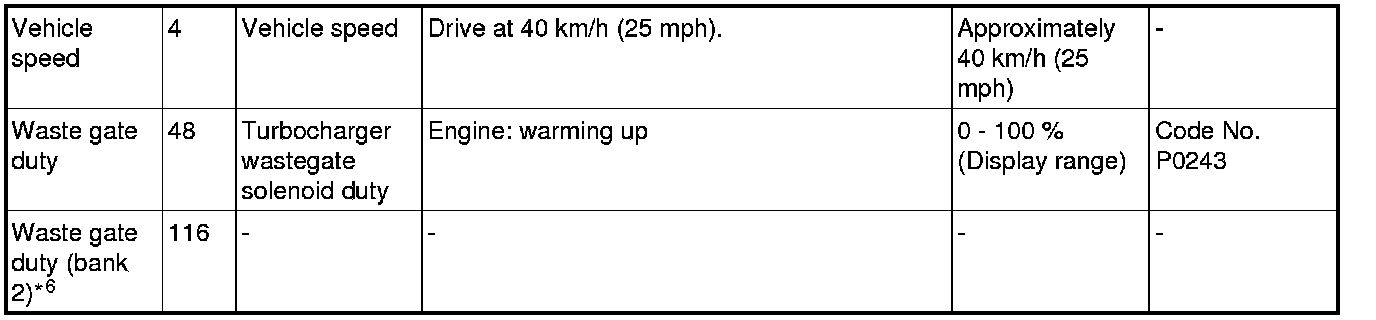

*6: Data item is displayed on scan tool display, but the turbocharger wastegate solenoid 2 is not equipped and its data is displayed as "0 %".
