Power Distribution System [Vehicles With Discharge Type Headlight]
Power Distribution System [Vehicles With Discharge Type Headlight]

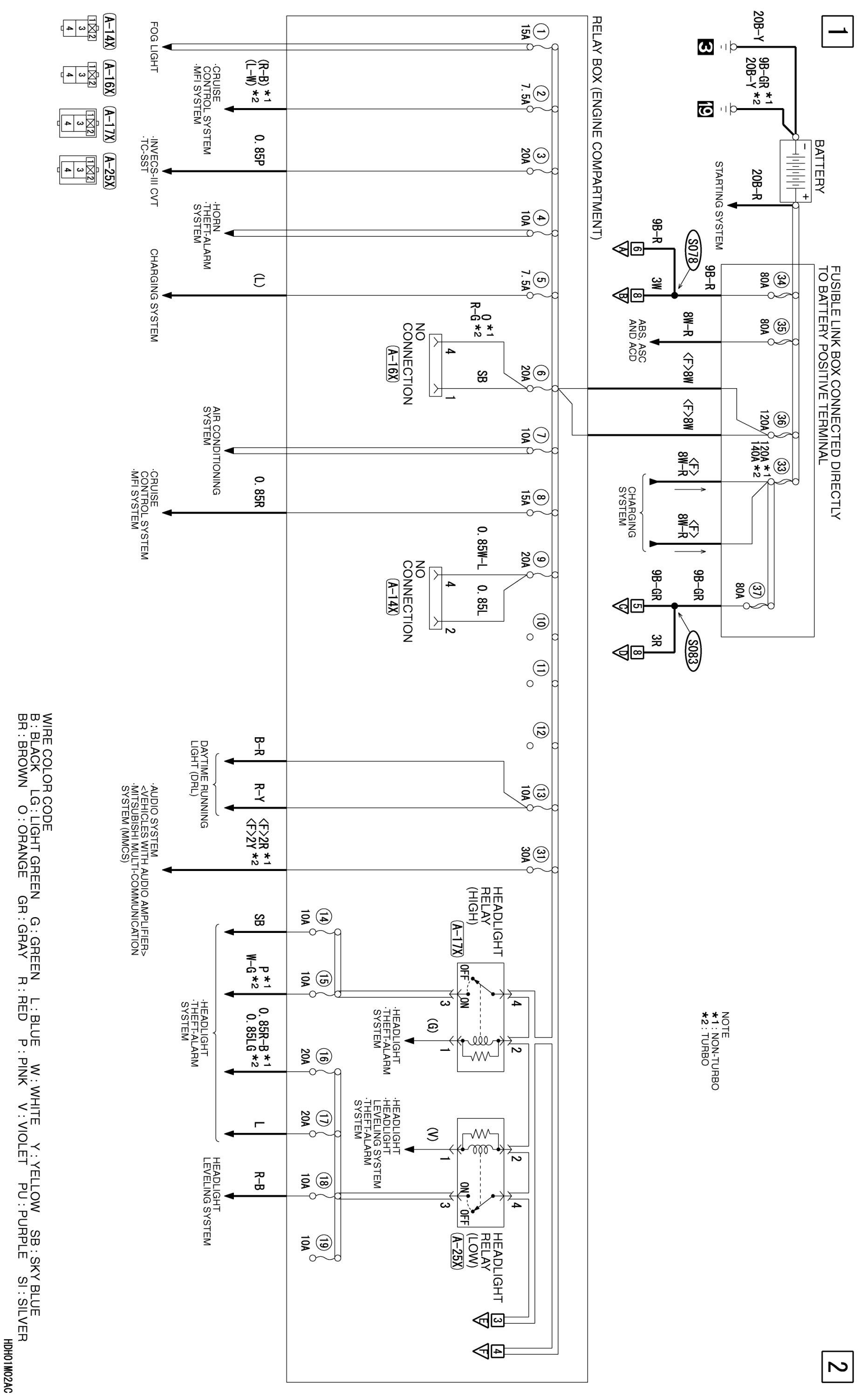

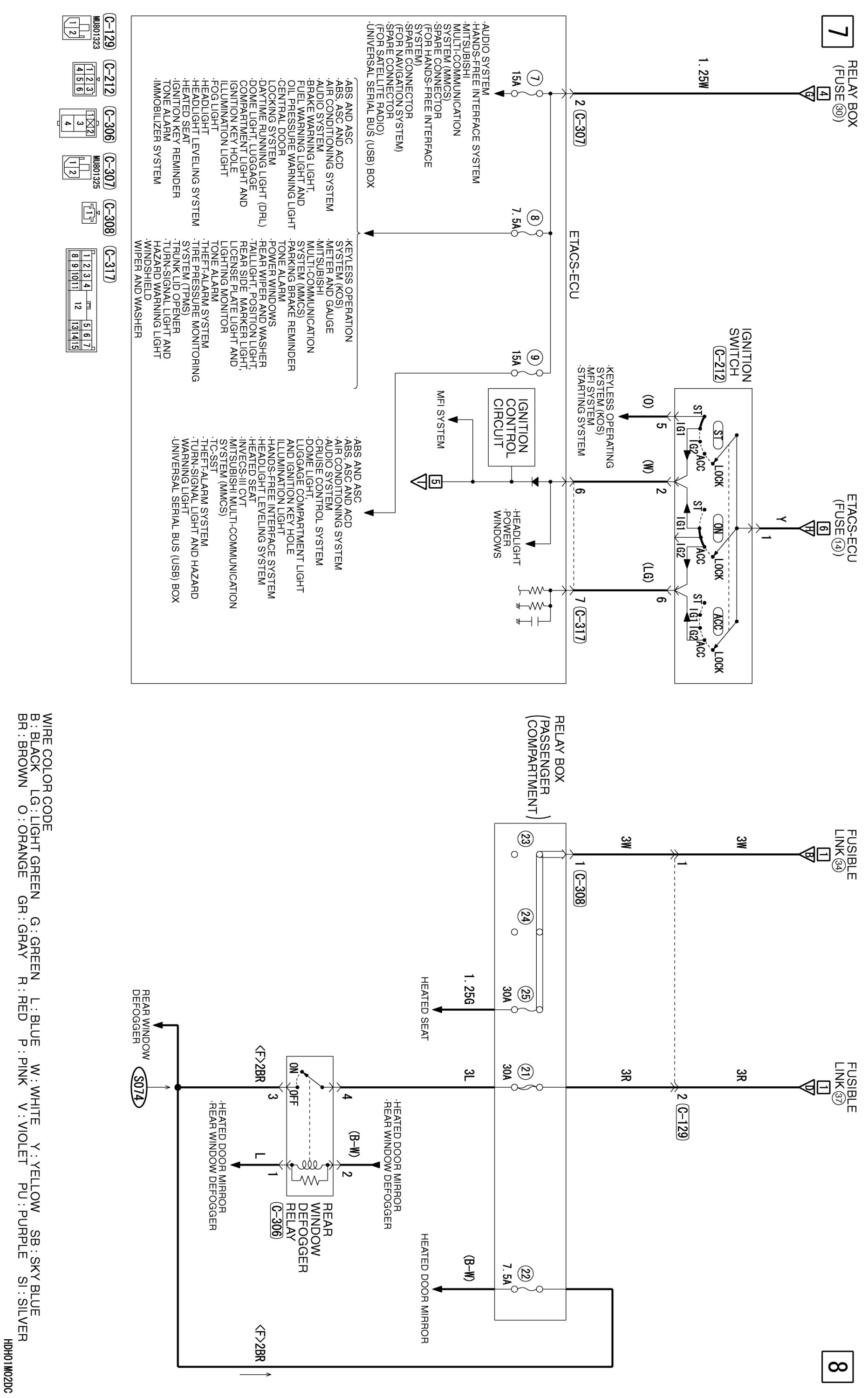

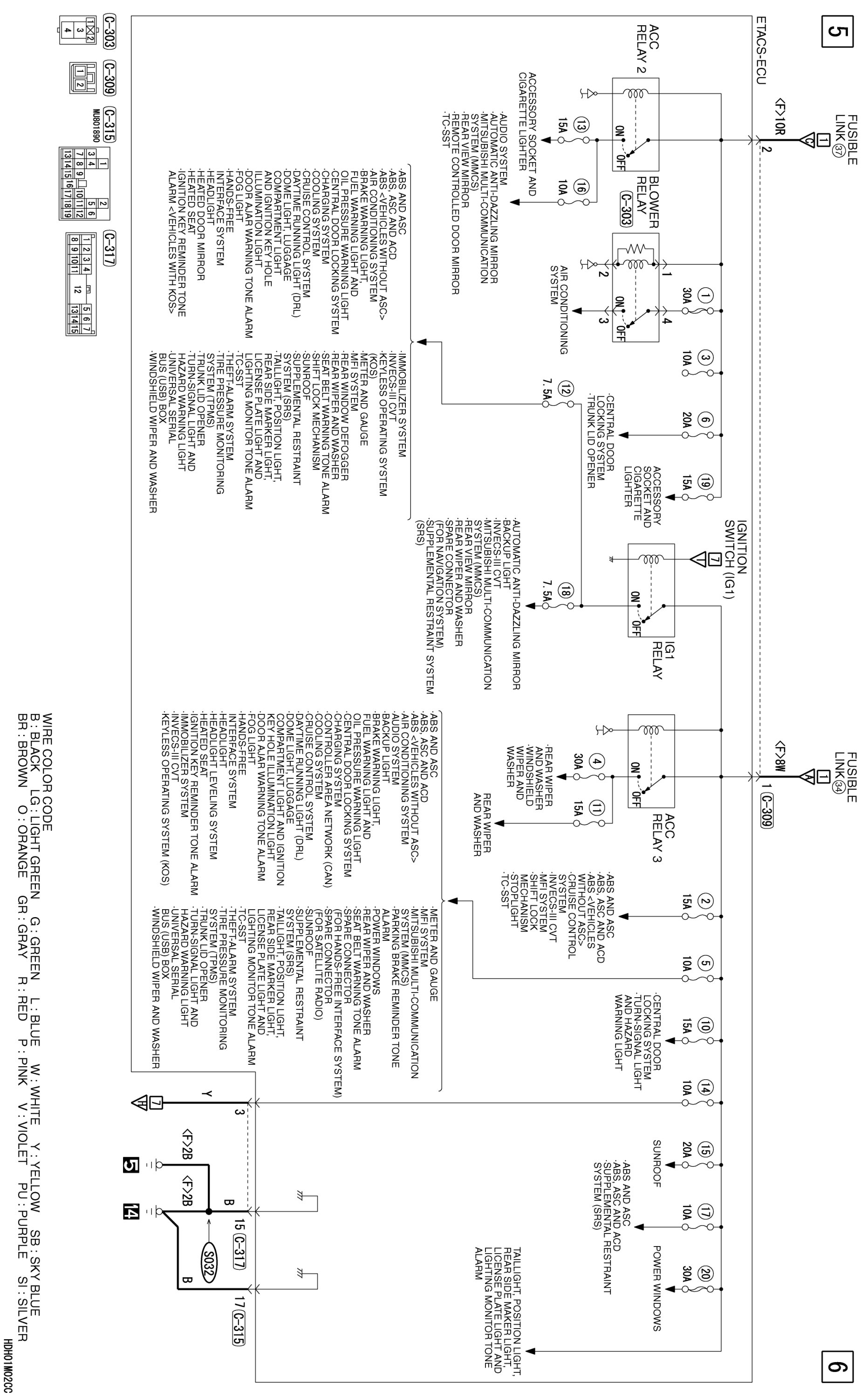

POWER DISTRIBUTION SYSTEM [VEHICLES WITH DISCHARGE TYPE HEADLIGHT]
