Front Axle

HUB BOLT REPLACEMENT

Required Special Tools:

- MB990767: Front Hub and Flange Yoke Holder

- MB991618: Hub Bolt Remover

1. Remove the brake caliper assembly and brake disc, and retain the brake caliper assembly with a wire and the like to prevent from falling (Refer to Front Axle).

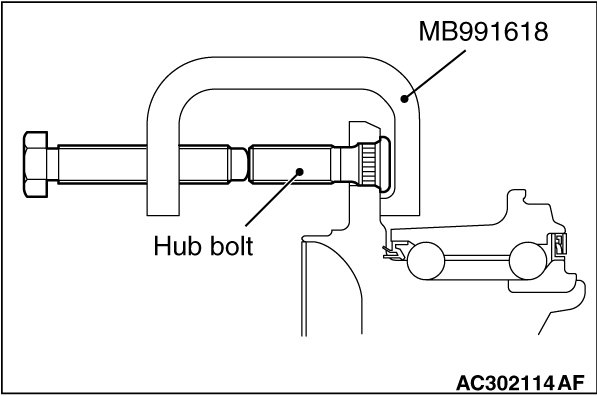

2. Use special tool MB991618 to remove the hub bolts.

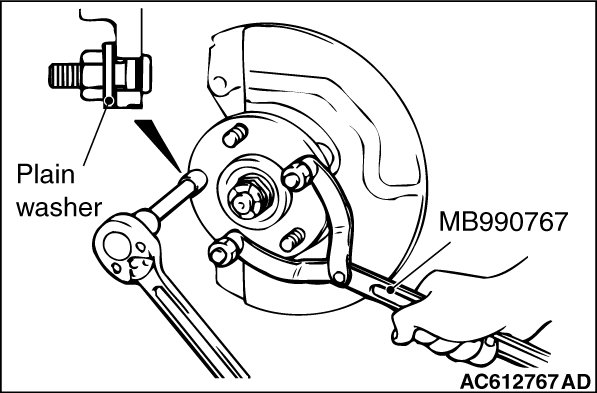

3. Install the plain washer to the new hub bolt, and install the bolt with a nut while holding the hub with special tool MB990767.
4. Install the brake disc and the brake caliper assembly (Refer to Front Axle).
