Drivetrain - Revised Recommended Lubricants/Capacities

No: TSB-12-00-019
DATE: September, 2012
MODEL: See Below

SUBJECT:
RECOMMENDED LUBRICANTS AND CAPACITIES

[TSB Revision: TSB-12-00-019]

PURPOSE
The shape of the transfer assembly was changed and the number of transfer to transmission mounting bolts was reduced from six to five from November 1, 2011. This change also affects service parts (new style transfer is interchangeable with old). The oil capacity for new style transfer is reduced. This TSB provides necessary changes to the service manual.

AFFECTED VEHICLES

2007-2012 Outlander
2012 Lancer SE
2011-2012 Outlander Sport

AFFECTED SERVICE MANUALS

2007 Outlander Service Manual,
Group 00 - General (Body and Chassis) - Recommended Lubricants and Lubricants and Capacities Table

2008 Outlander Service Manual,
Group 00 - General - Recommended Lubricants and Lubricants and Capacities Table

2009 Outlander Service Manual,
Group 00 - General - Recommended Lubricants and Lubricants and Capacities Table

2010 Outlander Service Manual,
Group 00 - General - Recommended Lubricants and Lubricants and Capacities Table

2011 Outlander Service Manual,
Group 00 - General - Recommended Lubricants and Lubricants and Capacities Table

2012 Outlander Service Manual,
Group 00 - General - Recommended Lubricants and Lubricants and Capacities Table

2012 Lancer/Lancer Sportback.
Group 00 - General - Recommended Lubricants and Lubricants and Capacities Table

2011 Outlander Sport Service Manual,
Group 00 - General - Recommended Lubricants and Lubricants and Capacities Table

2012 Outlander Sport Service Manual,
Group 00 - General - Recommended Lubricants and Lubricants and Capacities Table

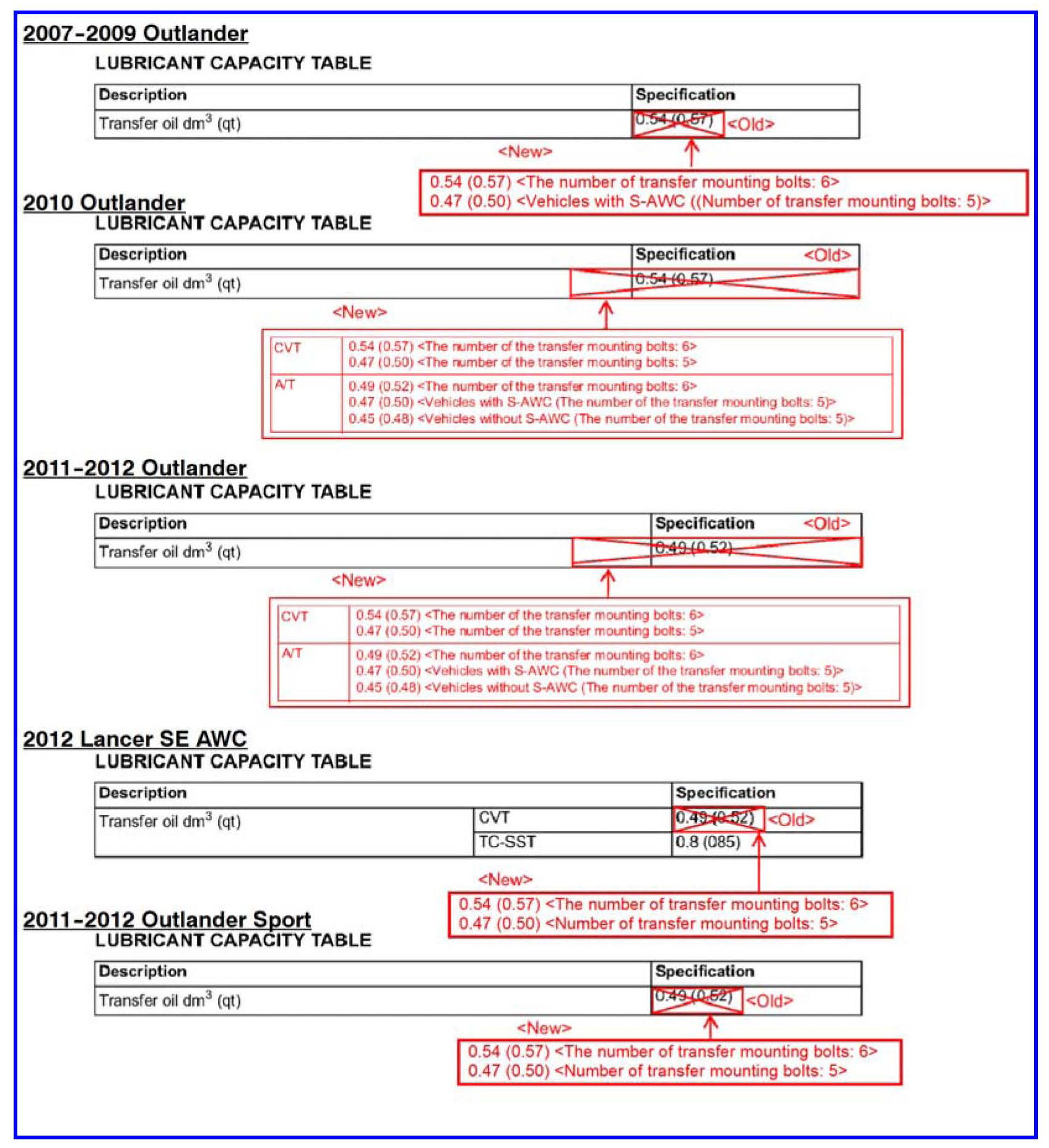

Make the indicated changes in the applicable service manuals to Group 00 General - Recommended
Lubricants and Capacities Table - Lubricant Capacity Table:














Make the changes on the pages in the indicated service manuals to:

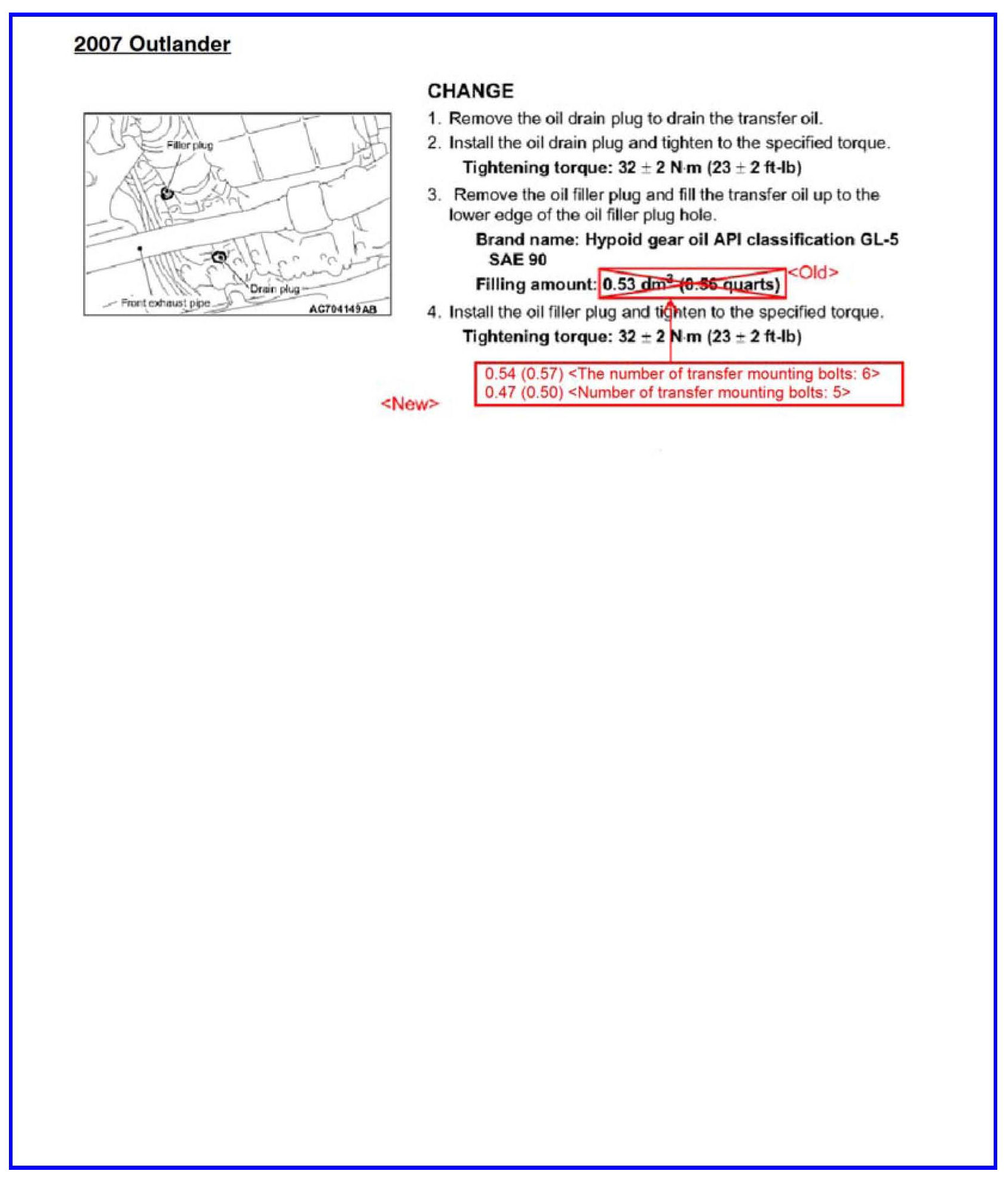

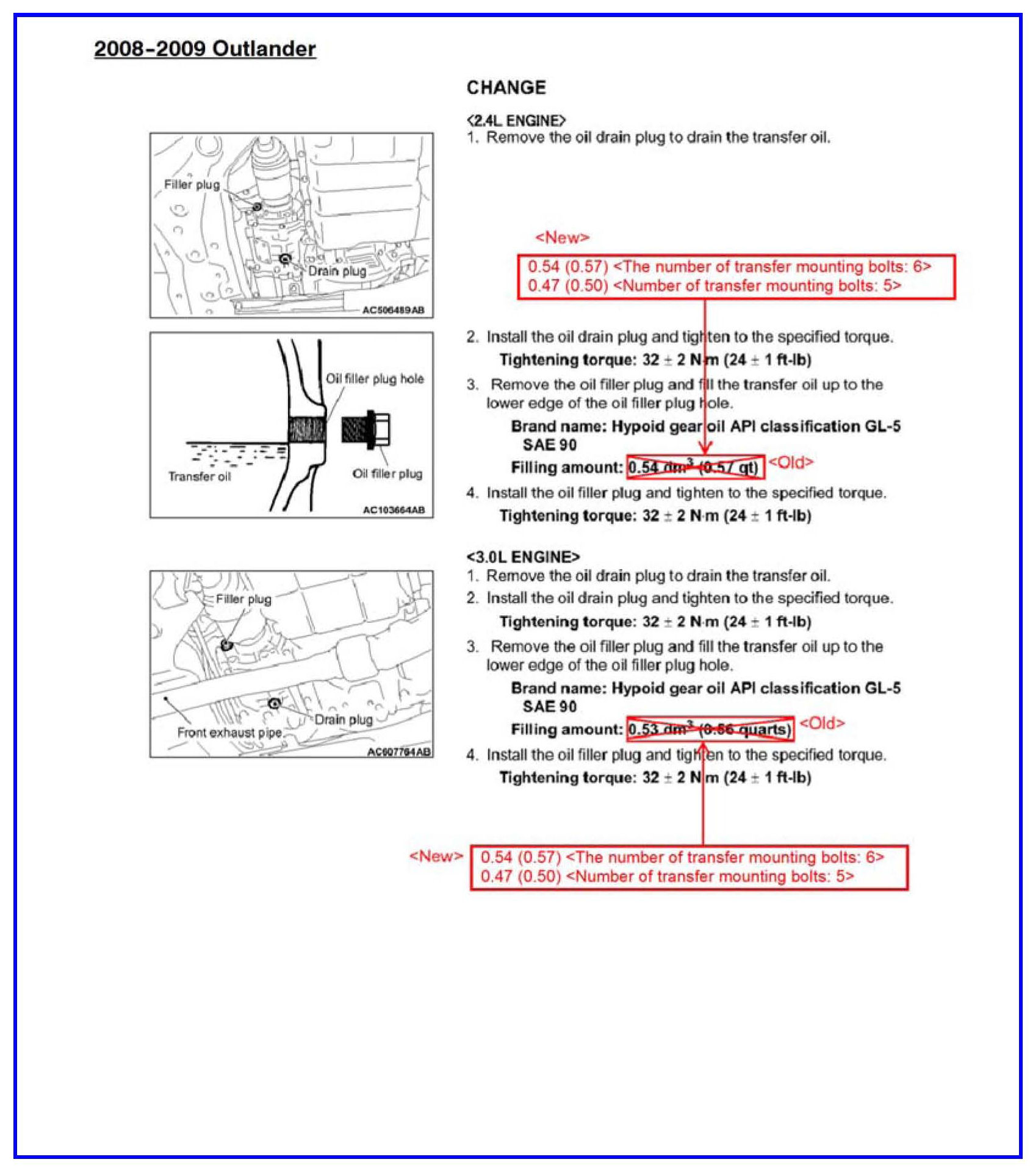

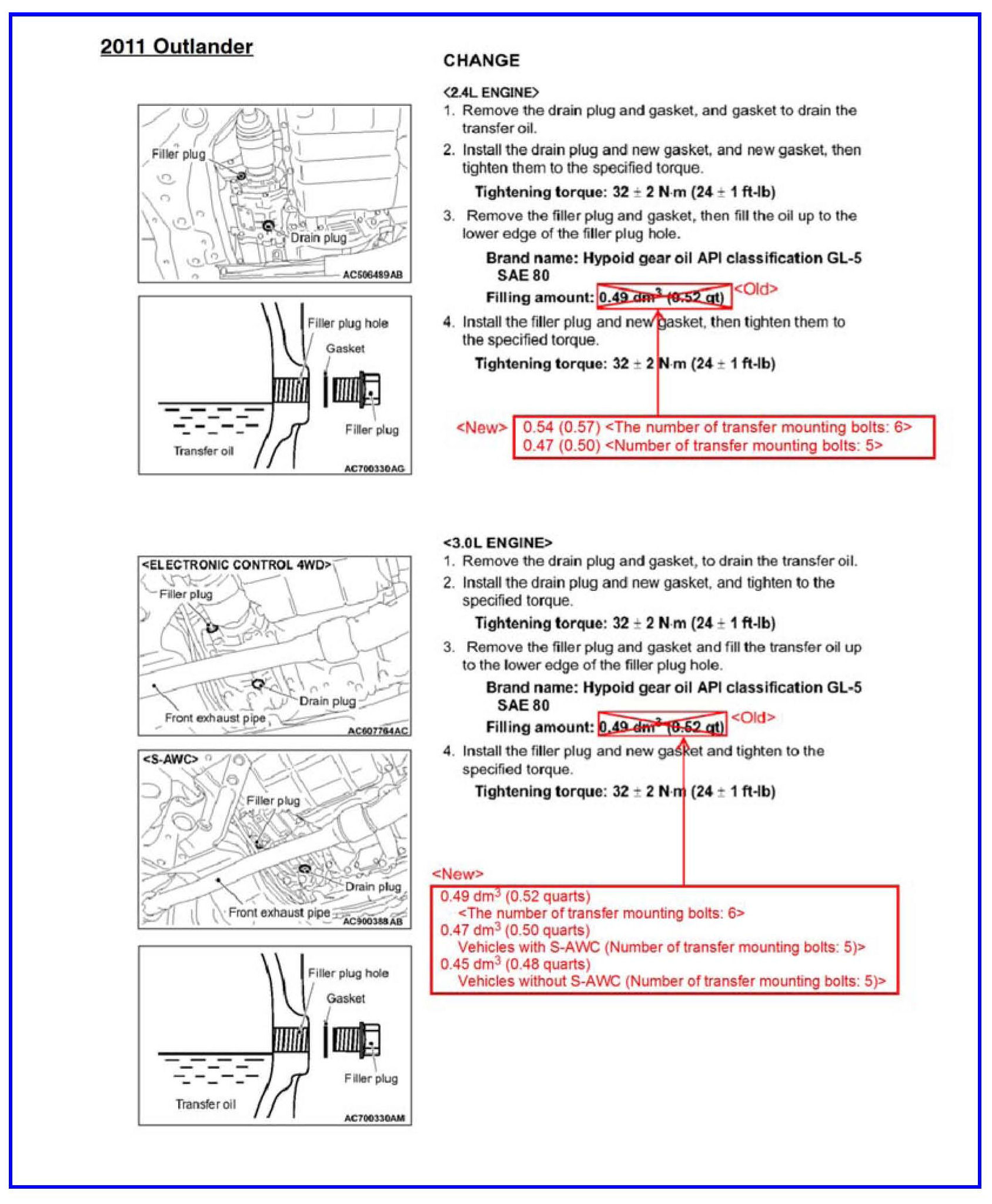

Group 00 - General- 13. Transfer Oil (Check Oil Level and Condition/Change):
