C Connectors - Dash Panel

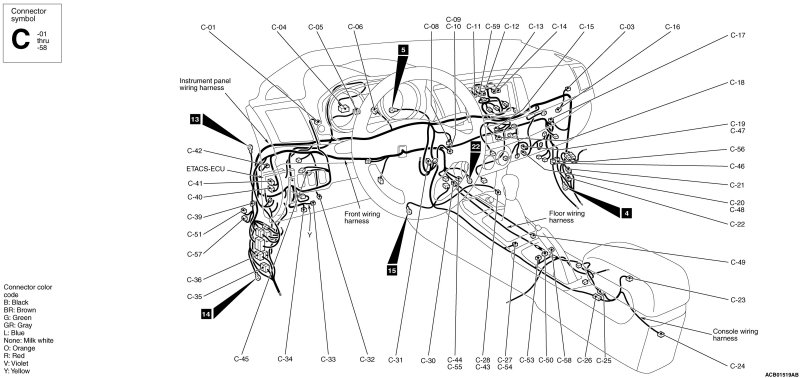

DASH PANEL

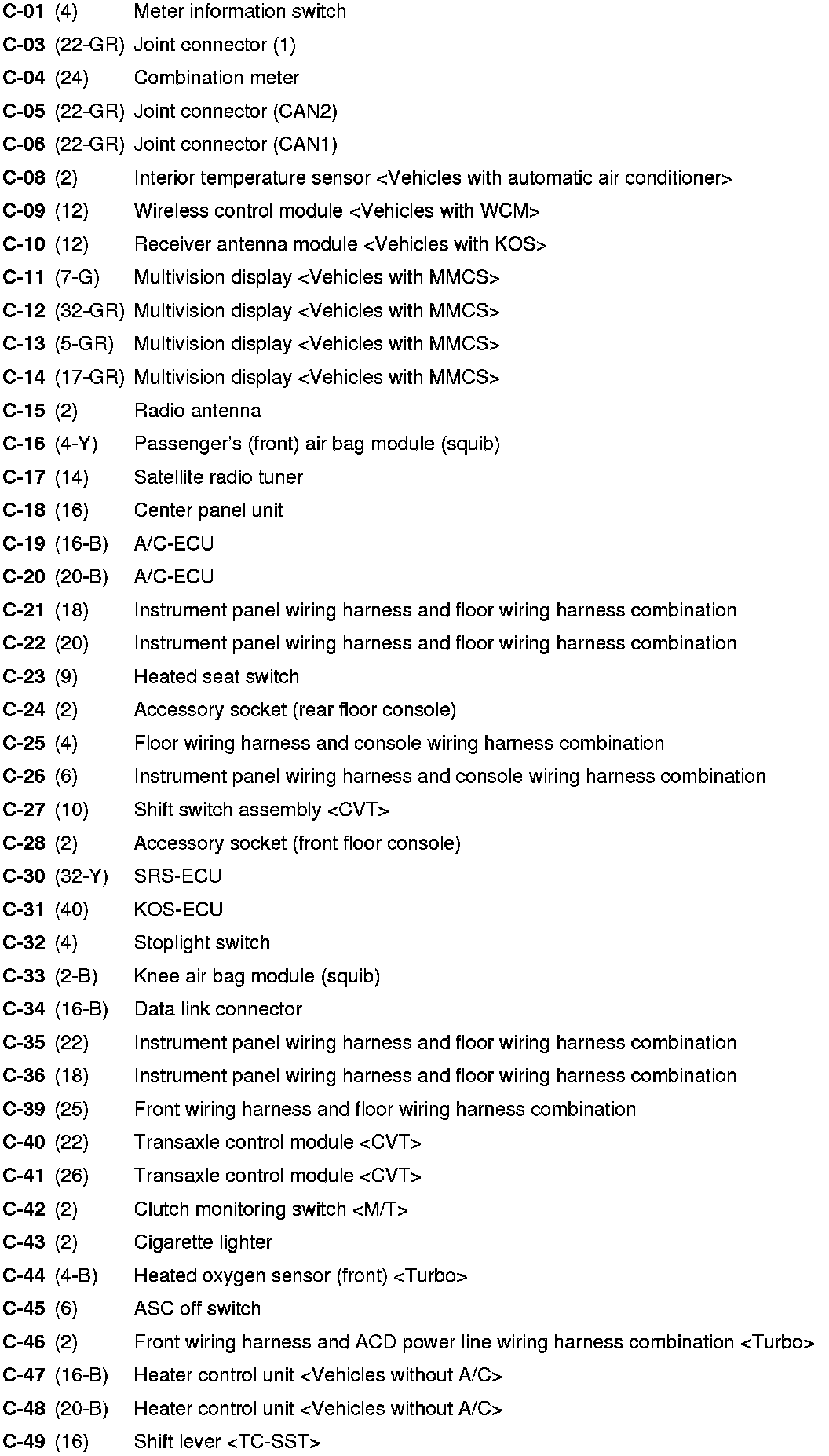

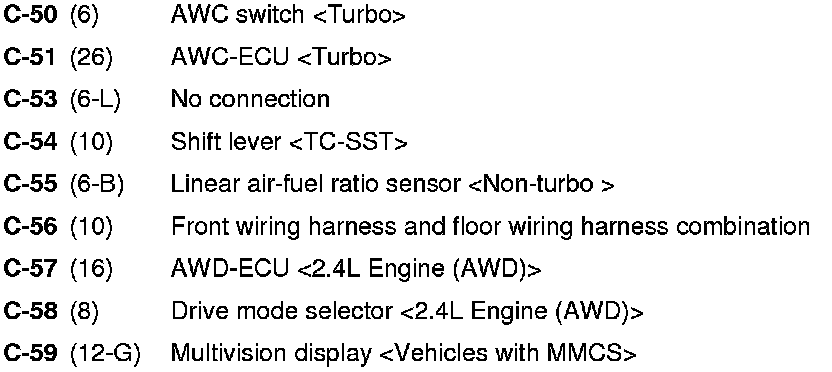

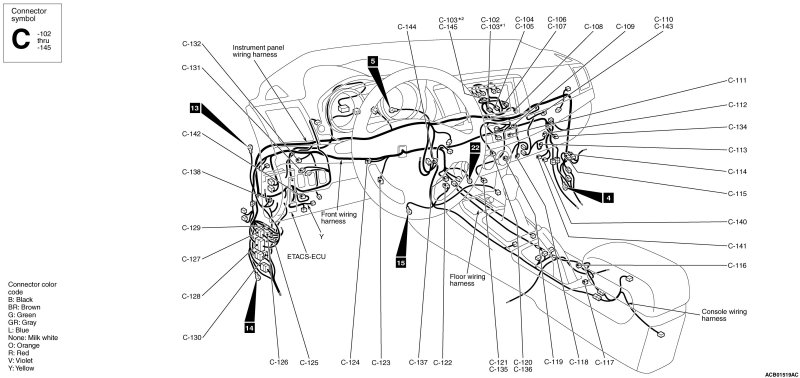

C-102 (24) Radio and CD player [Vehicles with audio amplifier]
C-103 (24) Instrument panel wiring harness and multivision display wiring
harness combination [Vehicles with MMCS] or Instrument panel
wiring harness and instrument panel wiring harness combination
[Vehicles without MMCS (with rear view camera)]
C-104 (20) Radio and CD player
C-105 (20) Instrument panel wiring harness and multivision display wiring
harness combination [Vehicles with MMCS]
C-106 (18) Radio and CD player
C-107 (18) Instrument panel wiring harness and multivision display wiring
harness combination [Vehicles with MMCS]
C-108 (10) CAN box unit [Vehicles with MMCS]
C-109 (5-G) Outside/inside air selection damper control motor
C-110 (28) Hands free module
C-111 (5) Mode selection damper control motor
C-112 (4) Power transistor
C-113 (2) Blower motor
C-114 (12) Instrument panel wiring harness and front door wiring harness (RH) combination
C-115 (25) Instrument panel wiring harness and front door wiring harness (RH) combination
C-116 (3) Inside transmission antenna assembly (front)
C-117 (1-B) Parking brake switch
C-118 (5-G) Air mixing damper control motor
C-119 (2) Fin thermo sensor
C-120 (12) A/C control panel
C-121 (6-B) Audio and video adapter
C-122 (24-Y) SRS-ECU
C-123 (6-B) Accelerator pedal position sensor
C-124 (22-GR) Joint connector (CAN3)
C-125 (12) Instrument panel wiring harness and front door wiring harness (LH) combination
C-126 (25) Instrument panel wiring harness and front door wiring harness (LH) combination
C-127 (20-GR) Instrument panel wiring harness and front wiring harness combination
C-128 (20) Instrument panel wiring harness and front wiring harness combination
C-129 (2) Instrument panel wiring harness and front wiring harness combination
C-130 (14) Instrument panel wiring harness and roof wiring harness combination
C-131 (6-GR) Headlight leveling switch [Vehicles with discharge type headlight]
C-132 (2) Clutch interlock switch [M/T]
C-134 (26) No connection [Turbo]
C-135 (6-B) Audio adapter
C-136 (12) Heater control panel [Vehicles without A/C]
C-137 (4-B) G and yaw rate sensor
C-138 (2) No connection [Turbo]
C-140 (2-B) Electric power steering-ECU [Non-turbo (2.0L Engine)]
C-141 (4) Electric power steering-ECU [Non-turbo (2.0L Engine)]
C-142 (8) LIN cut off control unit [Vehicles with theft-alarm sensor]
C-143 (28) USB box
C-144 (24) No connection
C-145 (24) Instrument panel wiring harness and instrument panel wiring
harness combination [Vehicles with rear view camera]
note
*1: Vehicles without rear view camera
*2: Vehicles with rear view camera

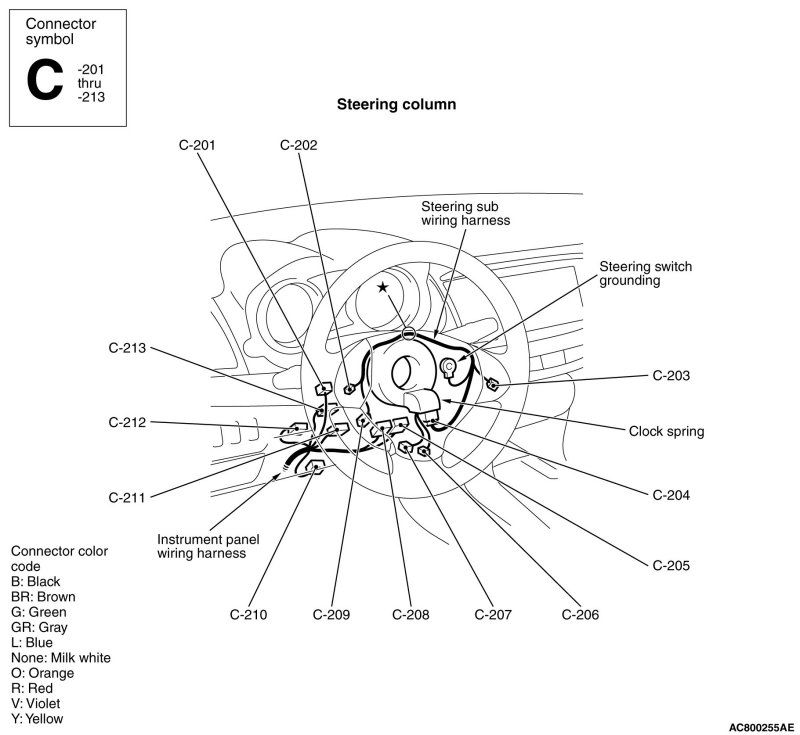

C-201 (10) Column switch
C-202 (5-R) Steering wheel audio remote control switch
C-203 (4-L) Cruise control switch
C-204 (5-GR) Clock spring and steering sub wiring harness combination
C-205 (6) Clock spring
C-206 (1) Horn switch
C-207 (4-Y) Driver�s air bag module (squib)
C-208 (4-Y) Clock spring
C-209 (4-Y) Steering wheel voice control switch
C-210 (3) Paddle shift switch [Vehicles with sport mode]
C-211 (5) Steering wheel sensor
C-212 (6) Ignition switch
C-213 (12) Key reminder switch

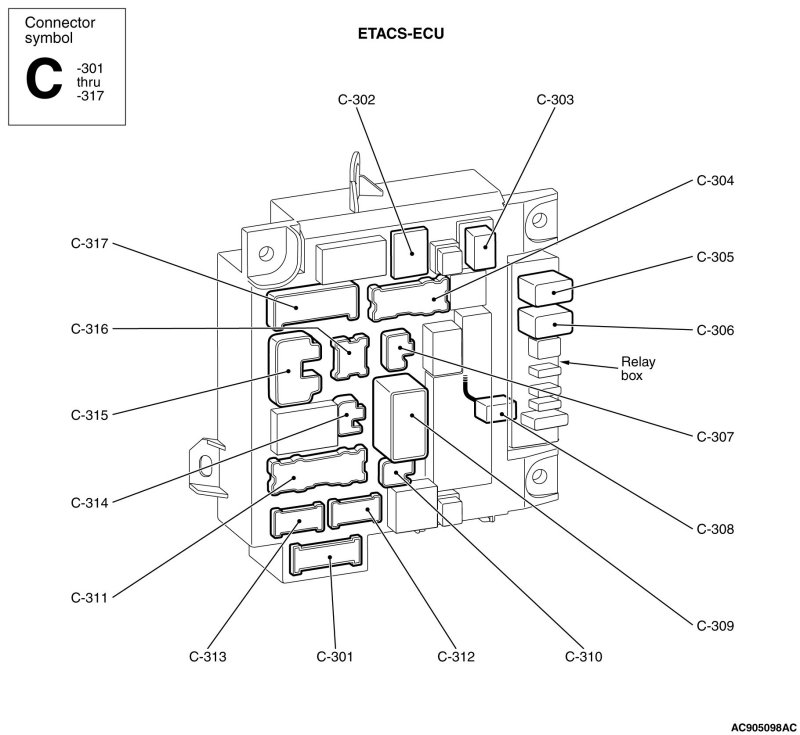

C-301 (24) Instrument panel wiring harness and ETACS-ECU combination
C-302 (4) No connection
C-303 (4) Blower relay
C-304 (16) Front wiring harness and ETACS-ECU combination
C-305 (4) Heated seat relay
C-306 (4) Rear window defogger relay
C-307 (2-B) Front wiring harness and ETACS-ECU combination
C-308 (1-GR) Instrument panel wiring harness and relay box combination
C-309 (2-B) Front wiring harness and ETACS-ECU combination
C-310 (4) No connection
C-311 (20) Floor wiring harness and ETACS-ECU combination
C-312 (16) Front wiring harness and ETACS-ECU combination
C-313 (16-BR) Floor wiring harness and ETACS-ECU combination
C-314 (2) Floor wiring harness and ETACS-ECU combination
C-315 (19) Instrument panel wiring harness and ETACS-ECU combination
C-316 (6) Roof wiring harness and ETACS-ECU combination
C-317 (15) Instrument panel wiring harness and ETACS-ECU combination
