Fog/Driving Lamp Bulb: Service and Repair

BULB REPLACEMENT

CAUTION:
Don't touch the bulb surface with bare hands or dirty gloves. If the bulb surface (glass part) gets dirty, clean it with alcohol or thinner immediately and dry well, and then install it.

1. Remove the front fog light bezel and the front fog light assembly. (Refer to Service and Repair.)

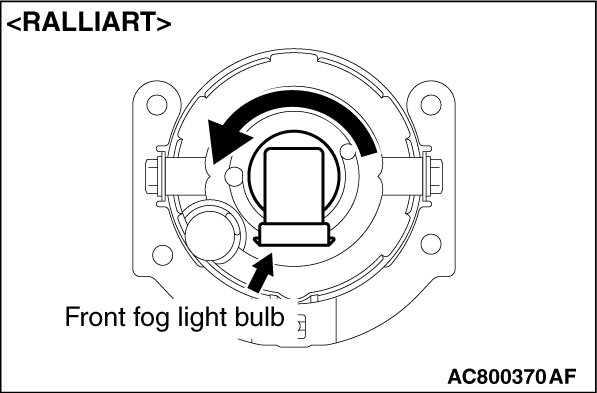

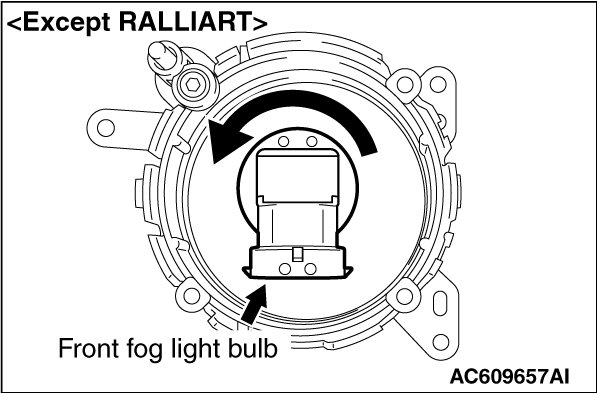

2. Disconnect the connector and withdraw the bulb.
3. After replacing the bulb, securely connect the connector, and install the front fog light assembly and the front fog light bezel.
