Removal and Replacement

REMOVAL AND INSTALLATION

WARNING:

- Before removing the front seat assembly, refer to Service Precautions Service Precautions and Air Bag Module and Clock Spring Driver's Air Bag Module and Clock Spring Removal and Installation (Except Ralliart) [Except for RALLIART] or Driver's Air Bag Module and Clock Spring Removal and Installation (Ralliart) [RALLIART].

- When removing and installing the front passenger seat, be sure to carry out accuracy check occupant classification sensor after the seat has been installed in the vehicle Testing and Inspection).

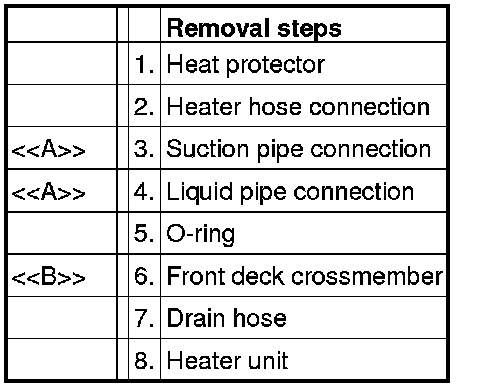

REMOVAL SERVICE POINTS

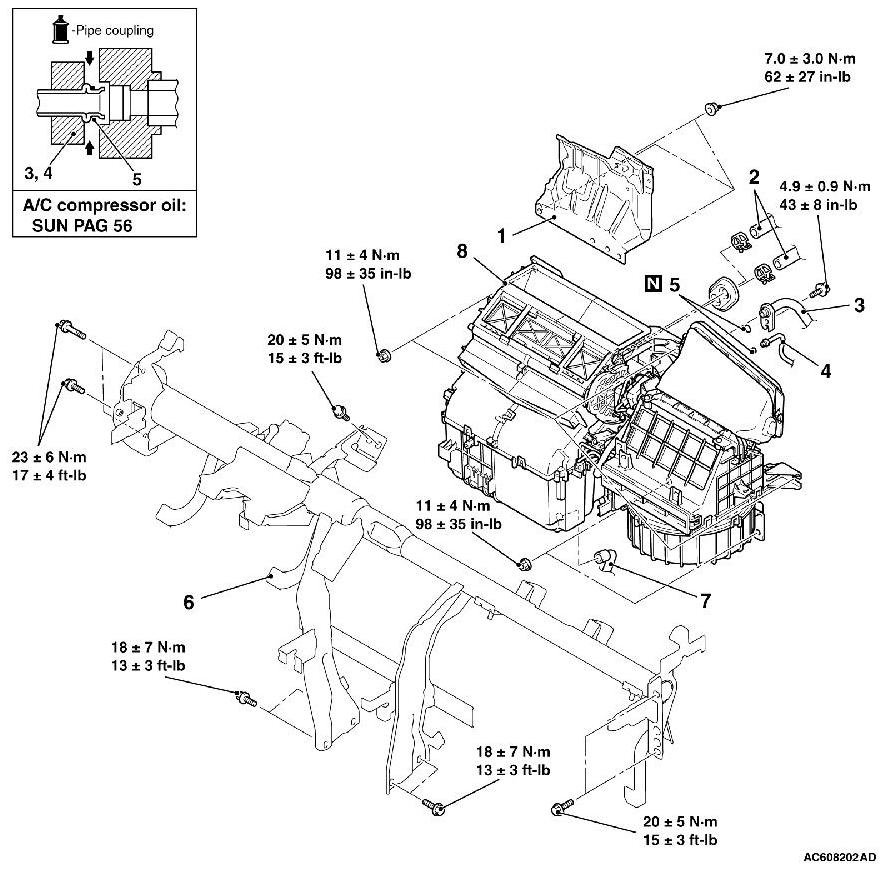

[[A]] SUCTION PIPE AND LIQUID PIPE DISCONNECTION

CAUTION:
As the compressor oil and receiver are highly moisture absorbent, use a non-porous material to plug the hose and nipples.

To prevent the entry of dust or other foreign bodies, plug the dismantled hose and the nipples of the expansion valves.

[[B]] FRONT DECK CROSSMEMBER ASSEMBLY REMOVAL

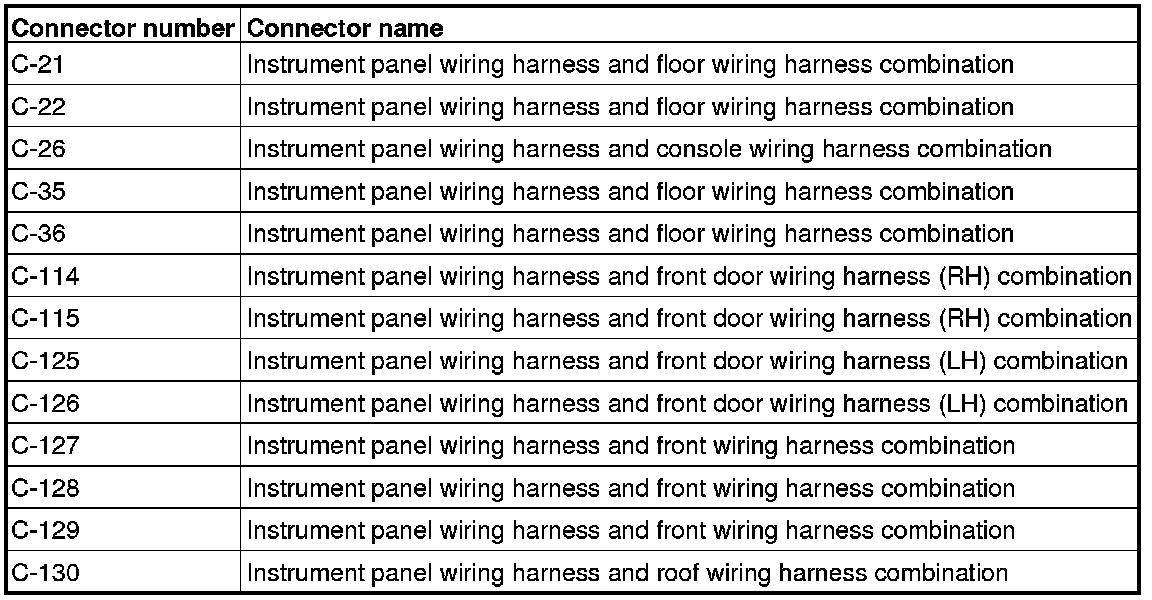

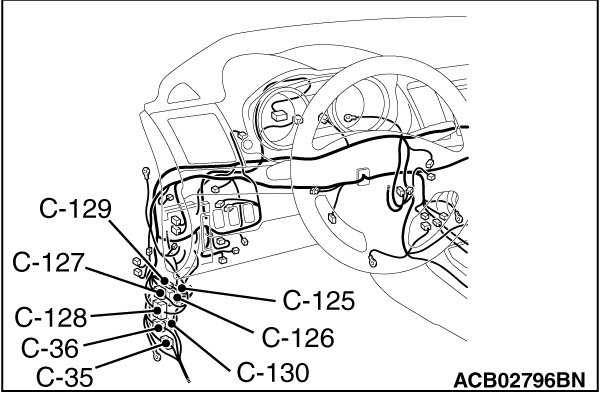

Disconnect the following connectors to gain access to the front deck crossmember.
